Radio/Navigation System Schematics

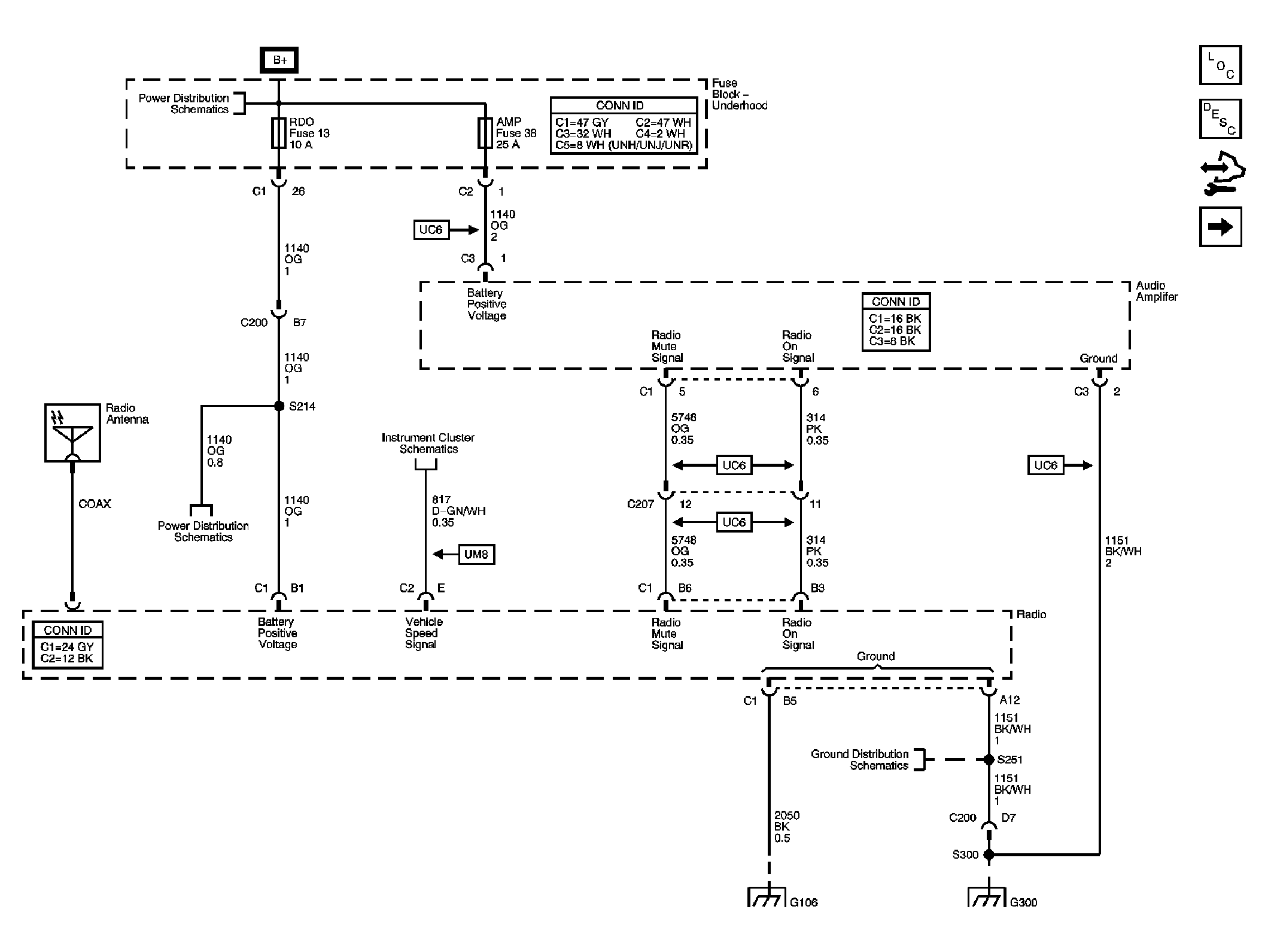

Fig 1: Audio Amplifier and Radio, Power, Ground and Serial Data Schematic

Courtesy of GENERAL MOTORS CORP.

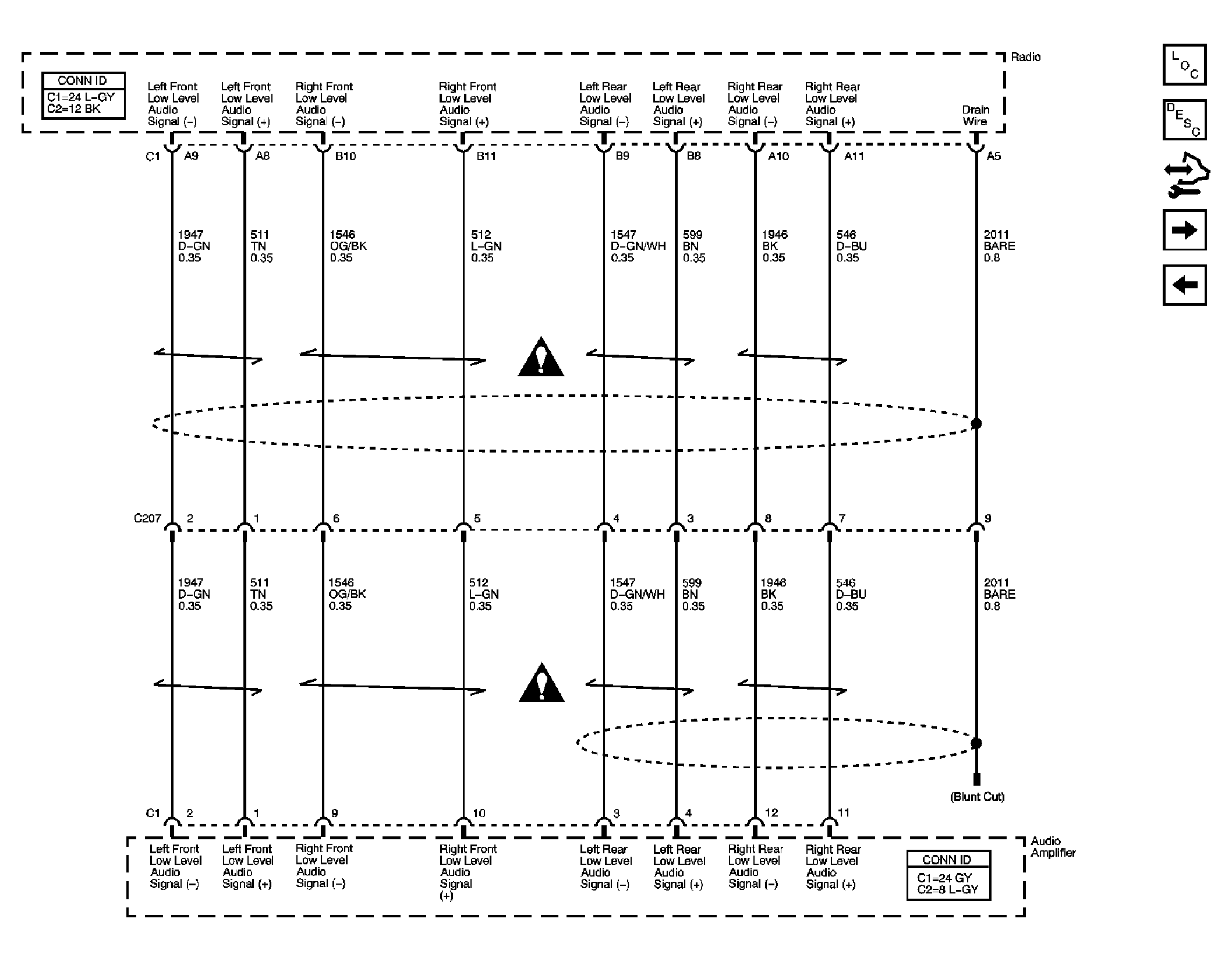

Fig 2: Audio Amplifier and Premium Radio Low Level Audio Outputs Schematic

Courtesy of GENERAL MOTORS CORP.

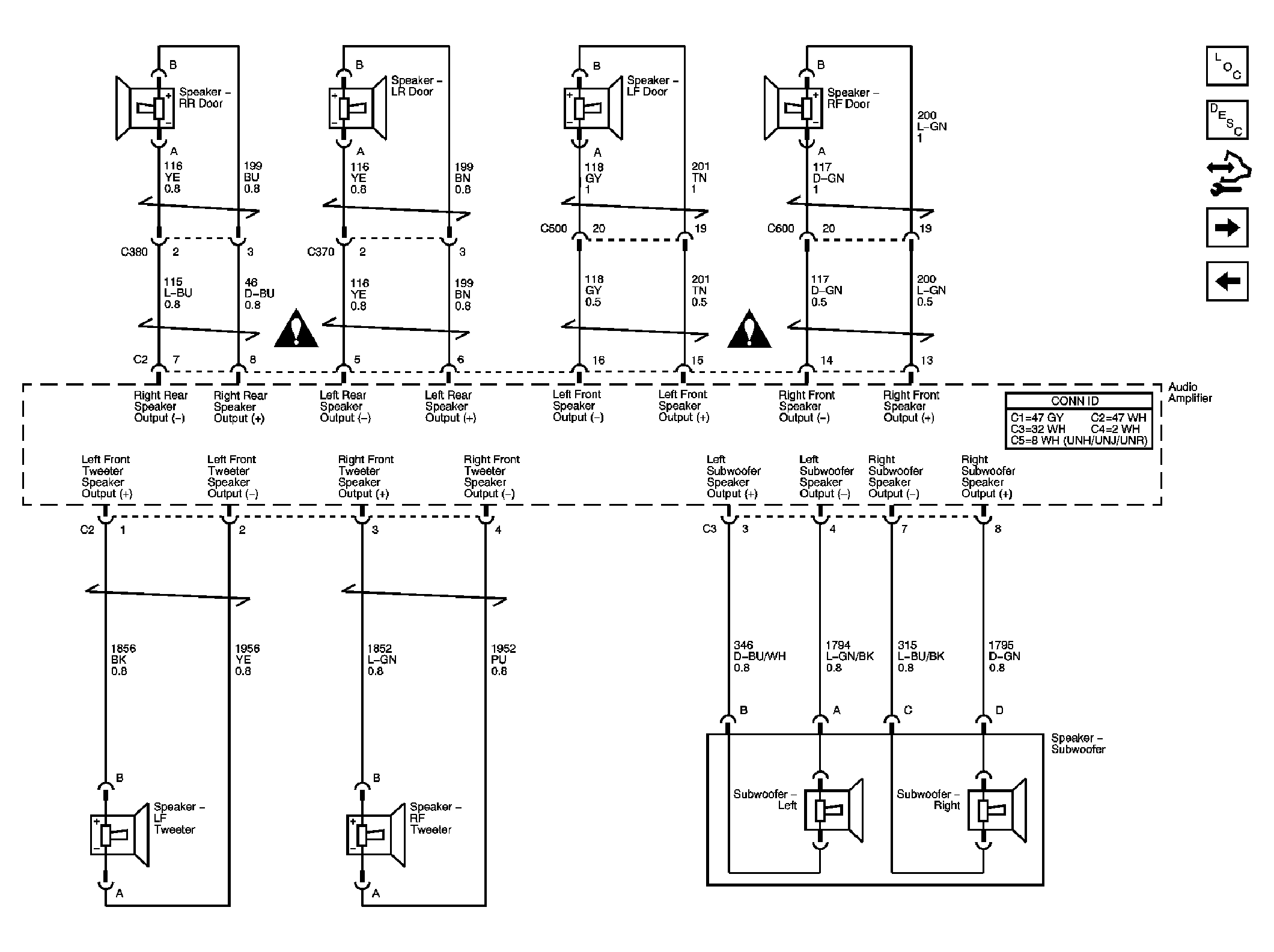

Fig 3: Base Radio Speakers Schematic

Courtesy of GENERAL MOTORS CORP.

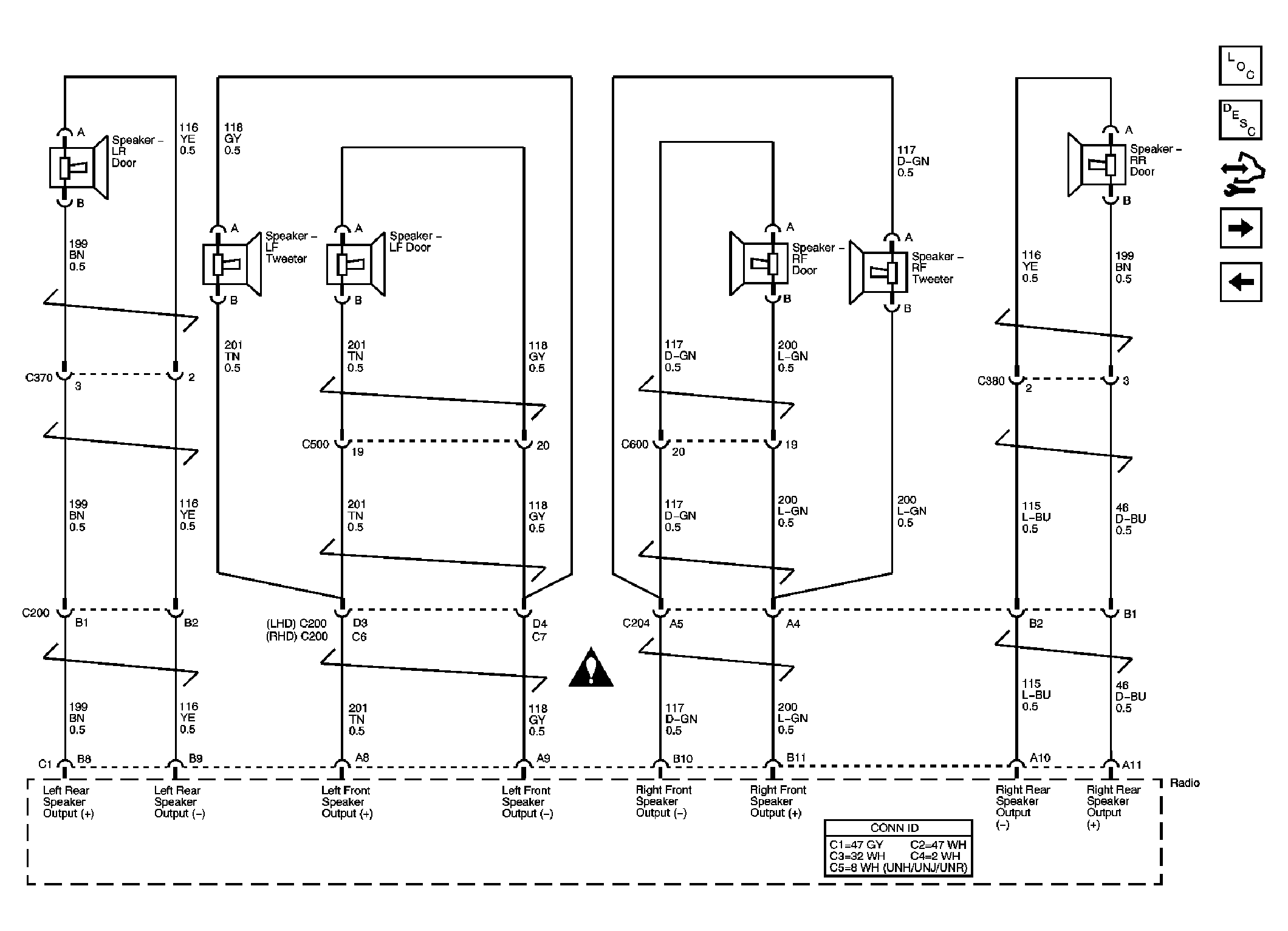

Fig 4: Premium Radio Speakers Schematic

Courtesy of GENERAL MOTORS CORP.

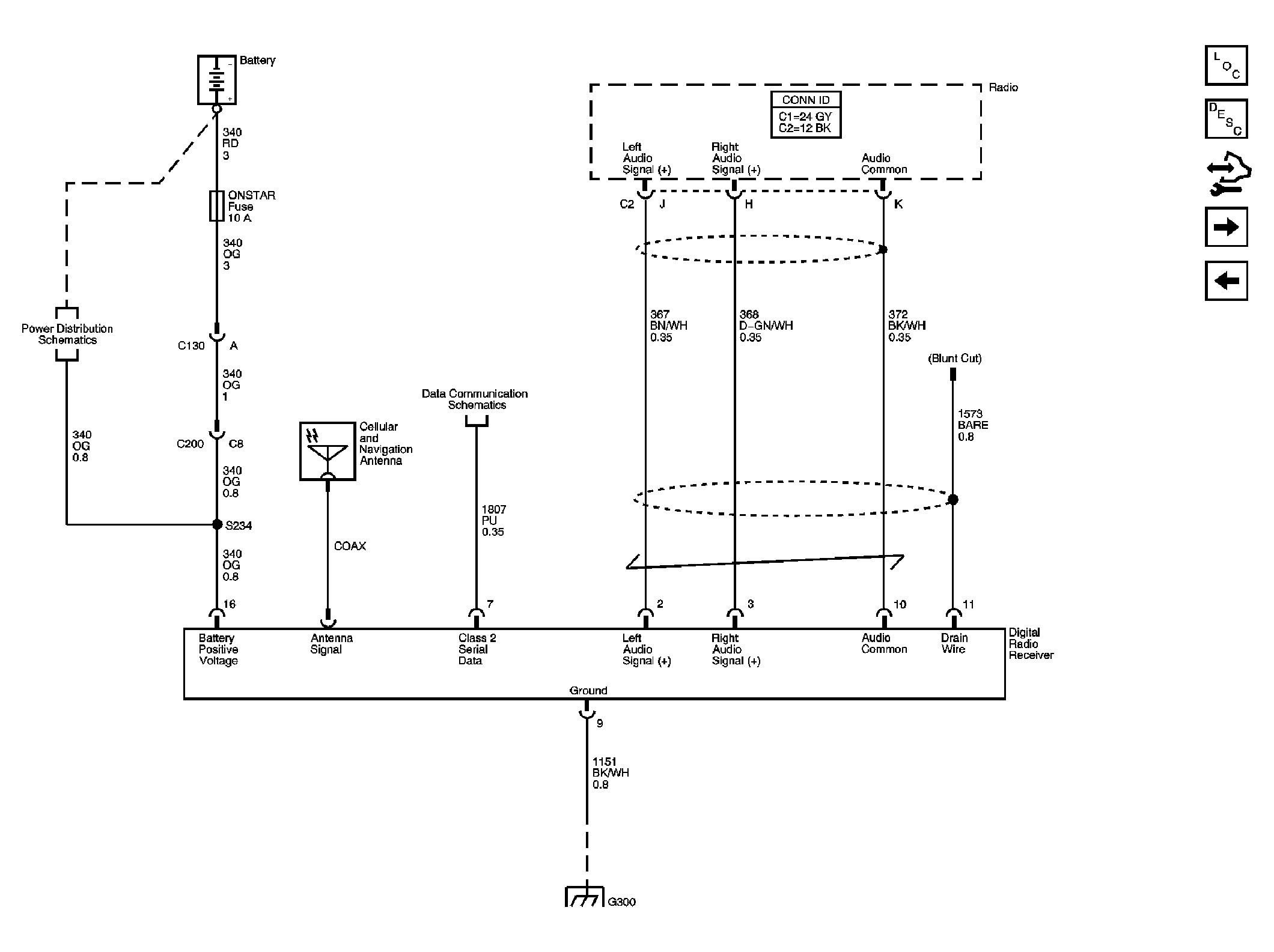

Fig 5: Digital Radio Receiver (U2K) Schematic

Courtesy of GENERAL MOTORS CORP.

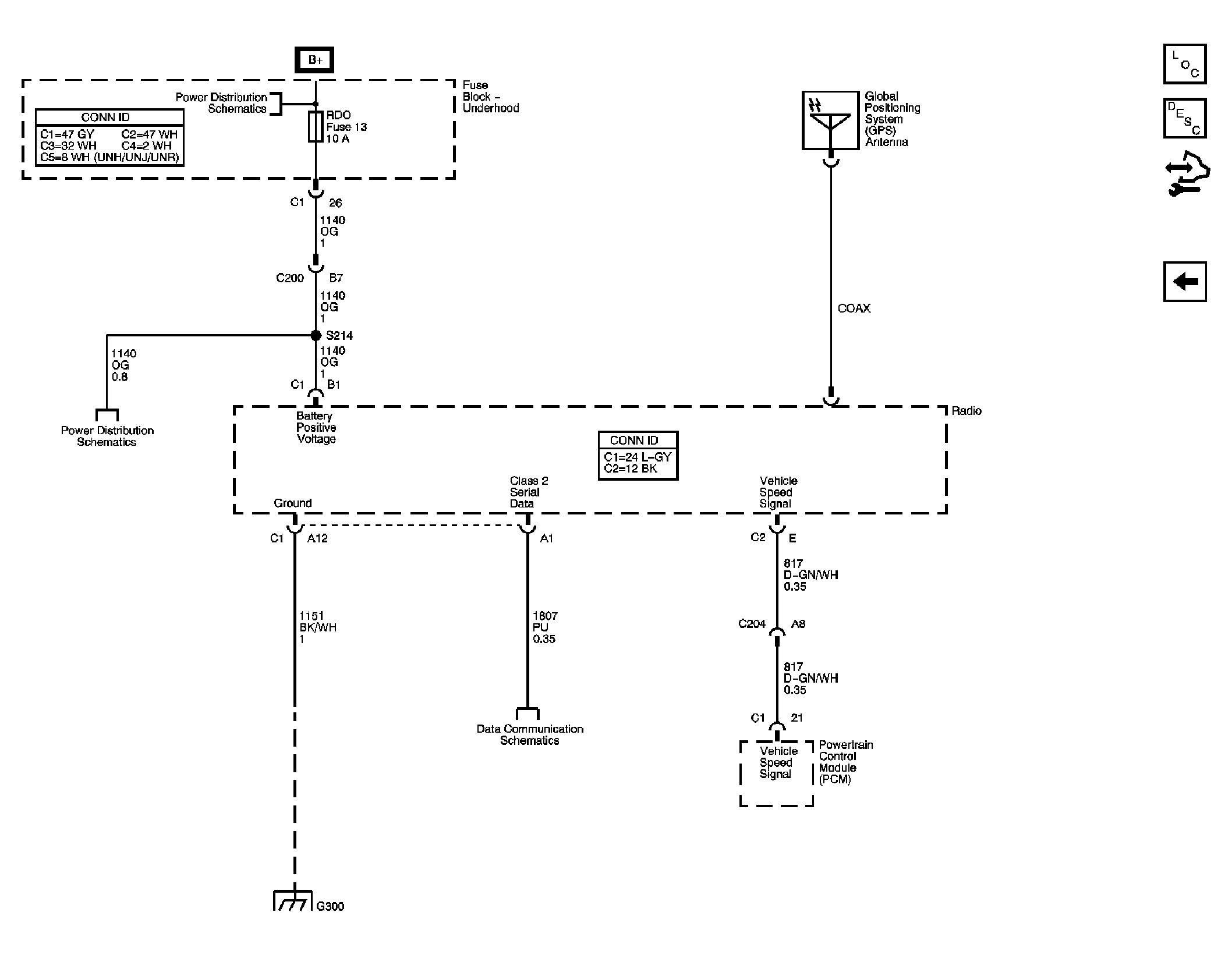

Fig 6: Navigation System Schematic

Courtesy of GENERAL MOTORS CORP.
