LEMON Manuals: Even more car manuals for everyone
Home >> Hummer >> 2007 >> H2 V8-6.0L >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Component Tests and General Diagnostics >> Charging System Test

Charging System Test



Charging System Test

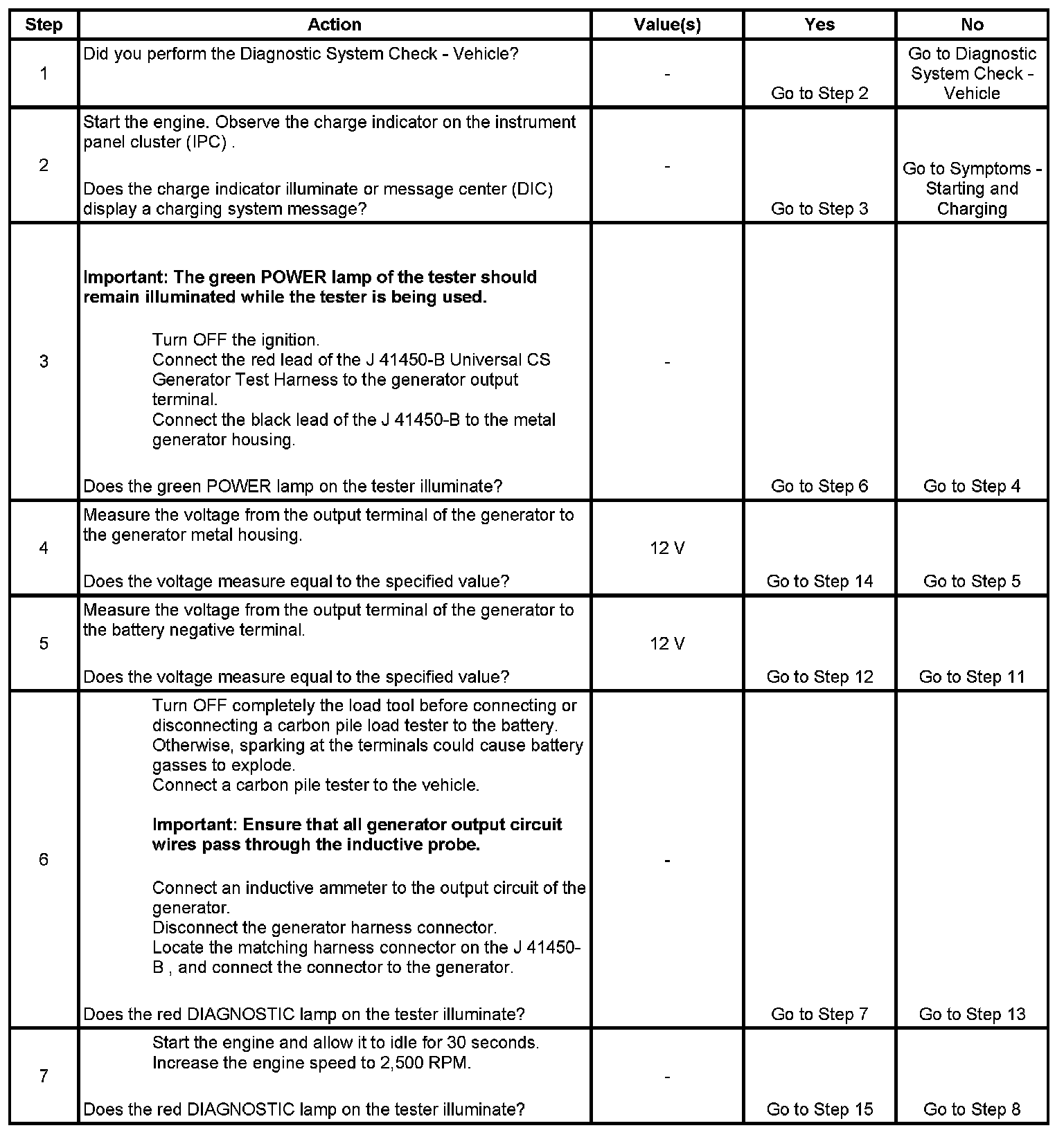

Step 1 - Step 7:

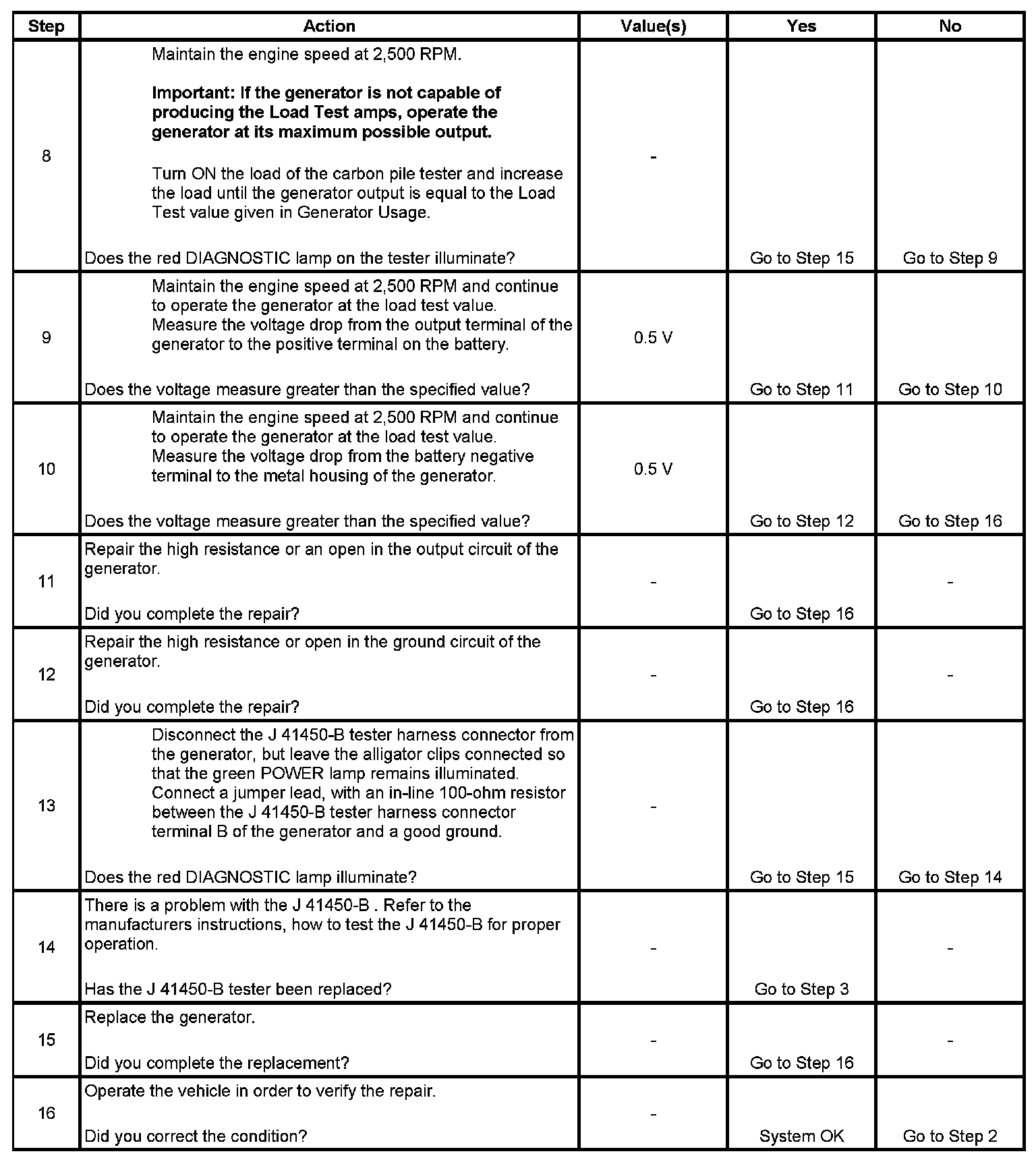

Step 8 - Step 16:
