Instrument Panel Views
>>
I/P Harness Components
I/P Harness Components

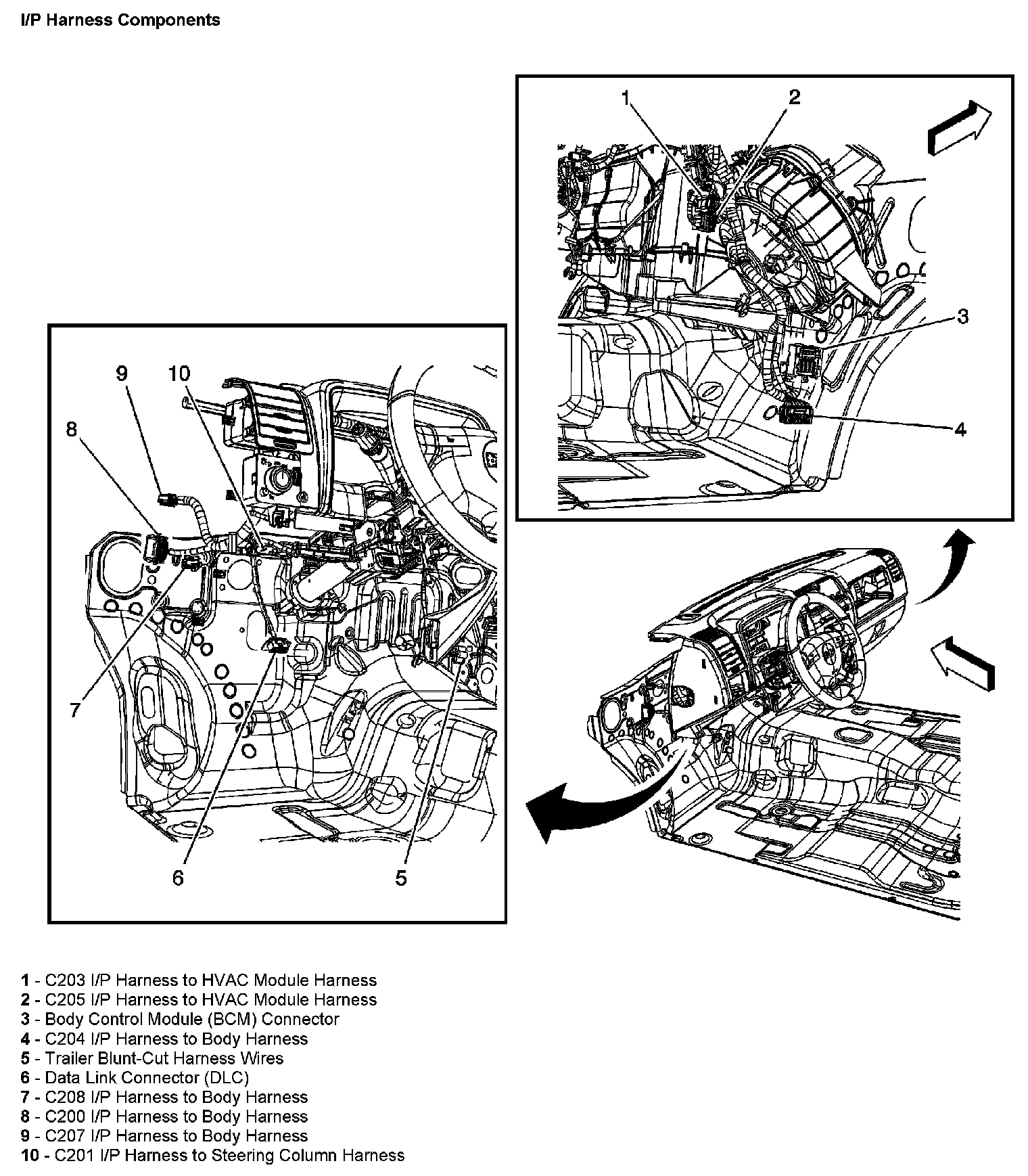

I/P Harness Components (Part 1):

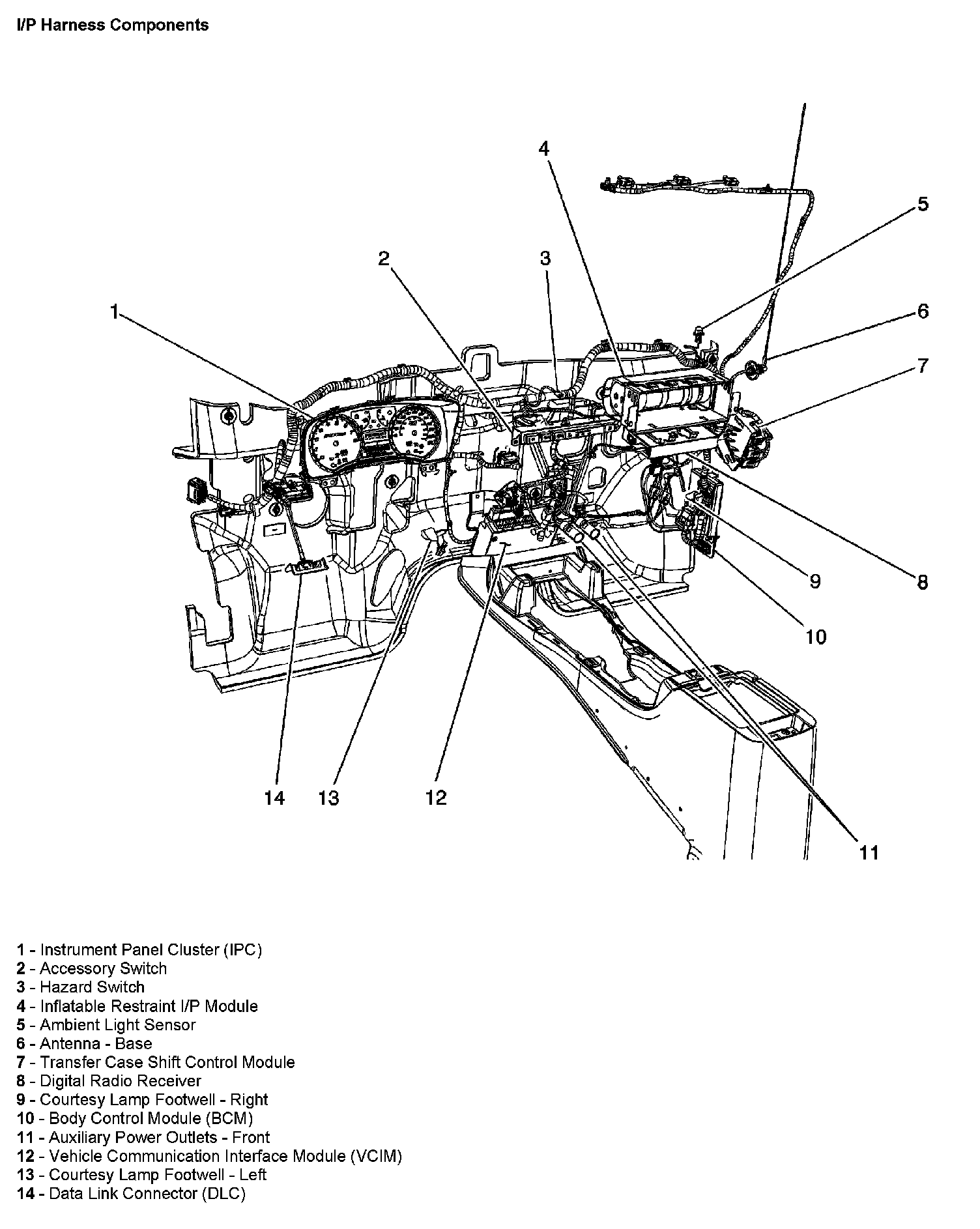

I/P Harness Components:

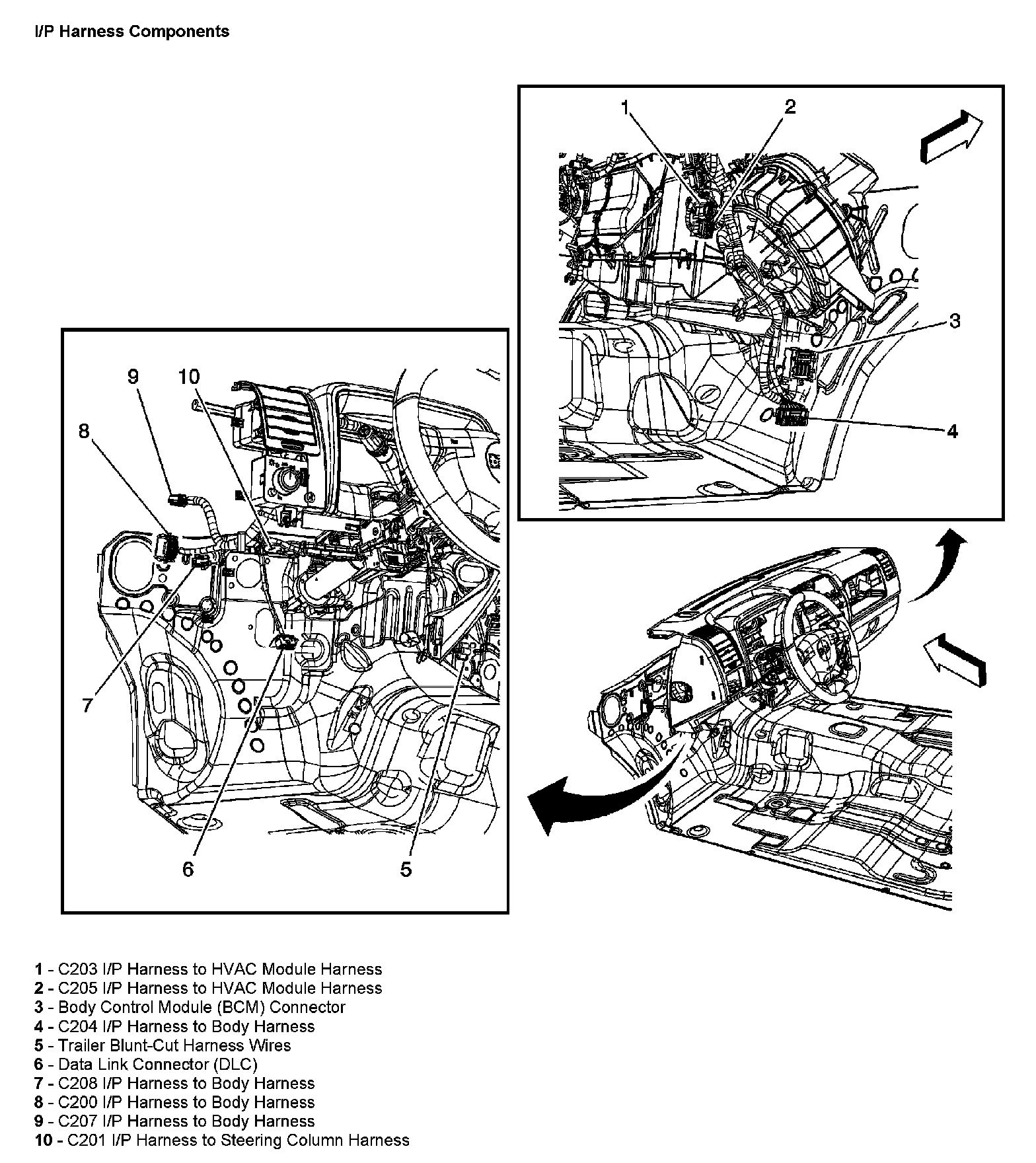

I/P Harness Components (Part 2):
