Steering Column

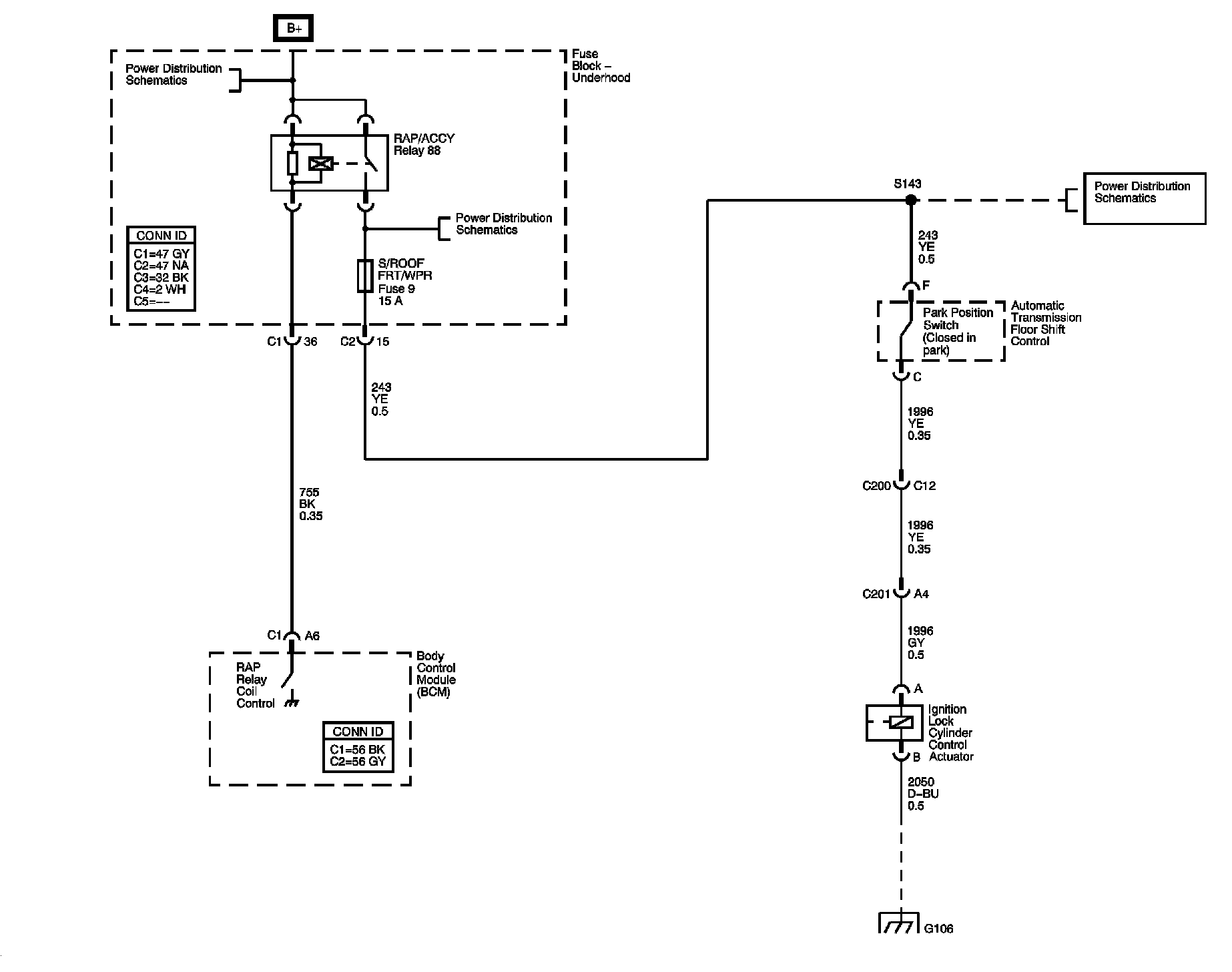

Column/Ignition Lock Diagrams

Column/Ignition Lock Diagrams:

Locations: The locations for the Connectors, Ground, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
