Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wheel Speed Sensor >> Wheel Speed Sensor (WSS) - RR

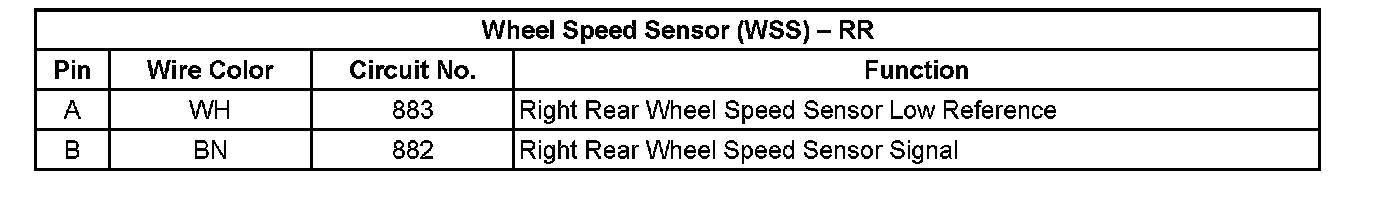

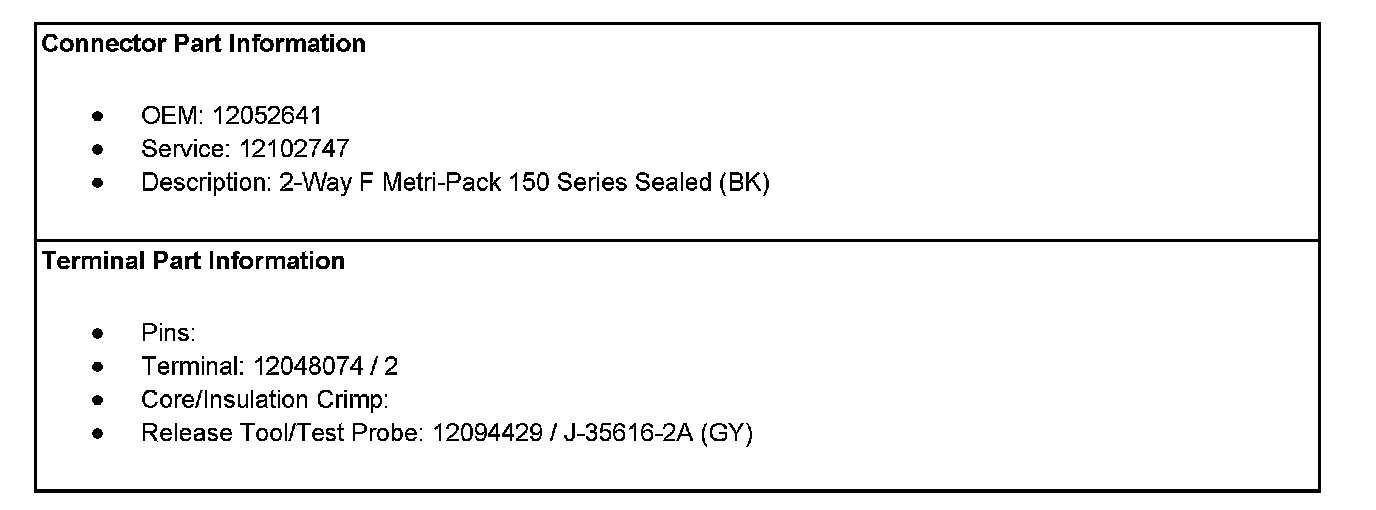

Wheel Speed Sensor (WSS) - RR



Wheel Speed Sensor (WSS) - RR







Wheel Speed Sensor (WSS) - RR:
