Variable Induction Control Solenoid
Variable Induction Control Solenoid

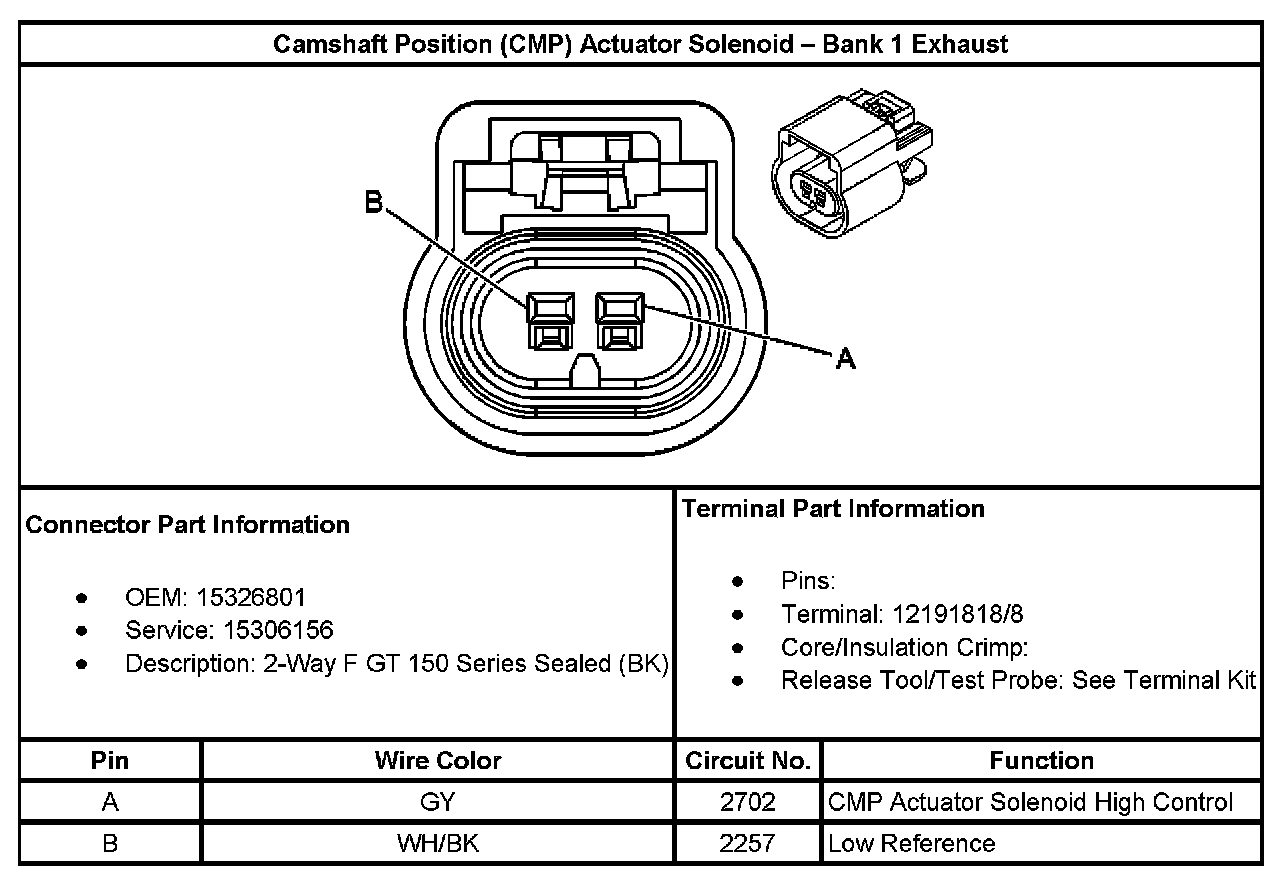

Camshaft Position (CMP) Actuator Solenoid - Bank 1 Exhaust:
