Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Rear Door Window Motor

Rear Door Window Motor

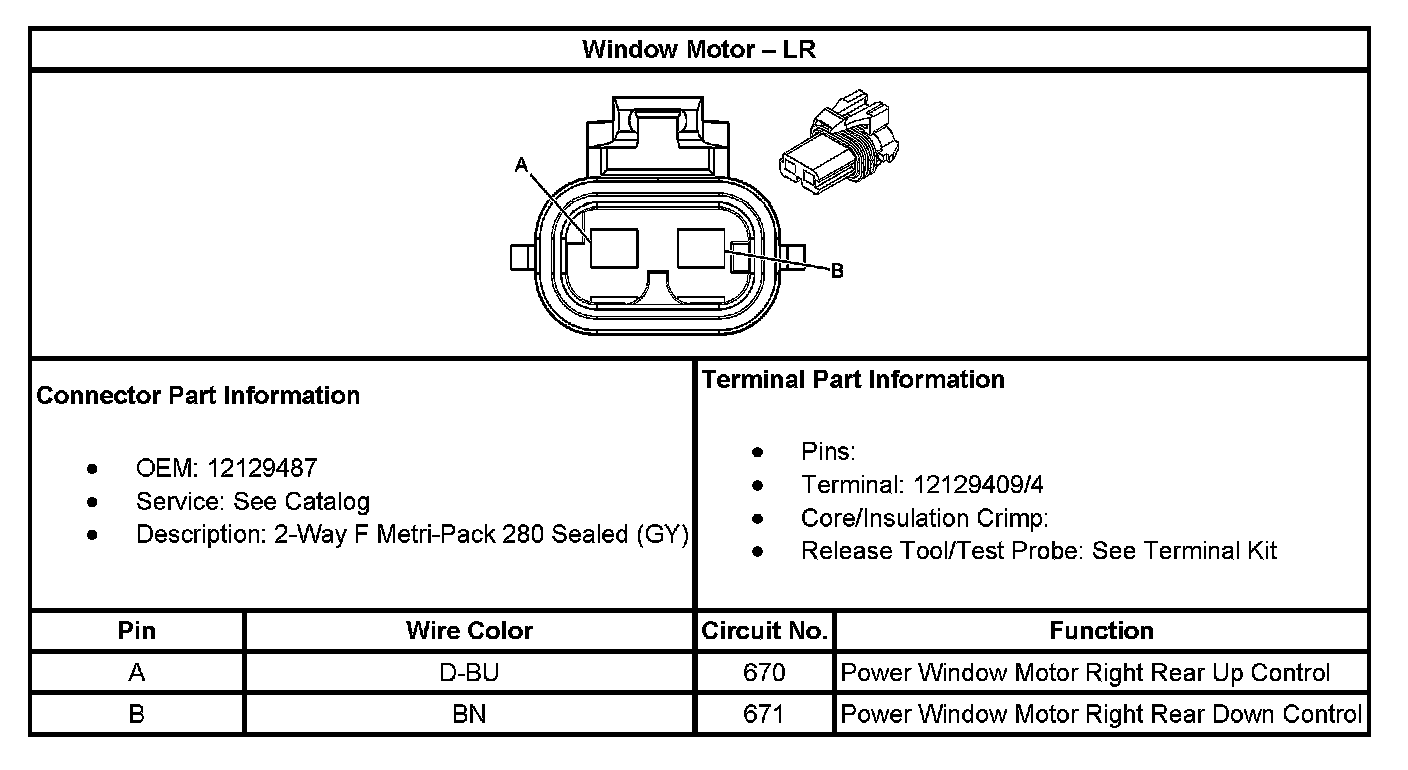

Window Motor - LR:

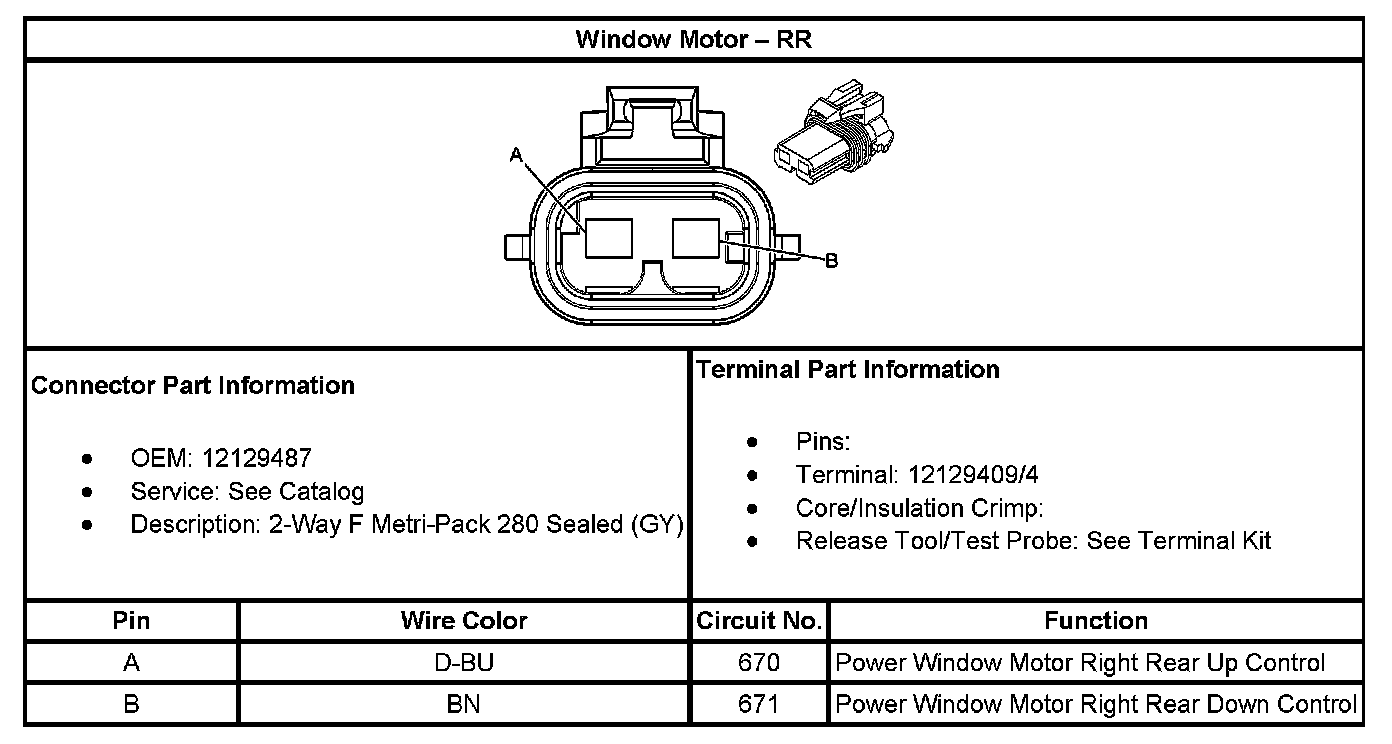

Window Motor - RR:
