LEMON Manuals
: Even more car manuals for everyone
Home
>>
Hummer
>>
2006
>>
H3 L5-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Motor
Power Seat Motor
Lumbar Pump Motor - Driver(With RPO Code AG1):
Lumbar Pump Motor - Passenger(With RPO Code AG2):

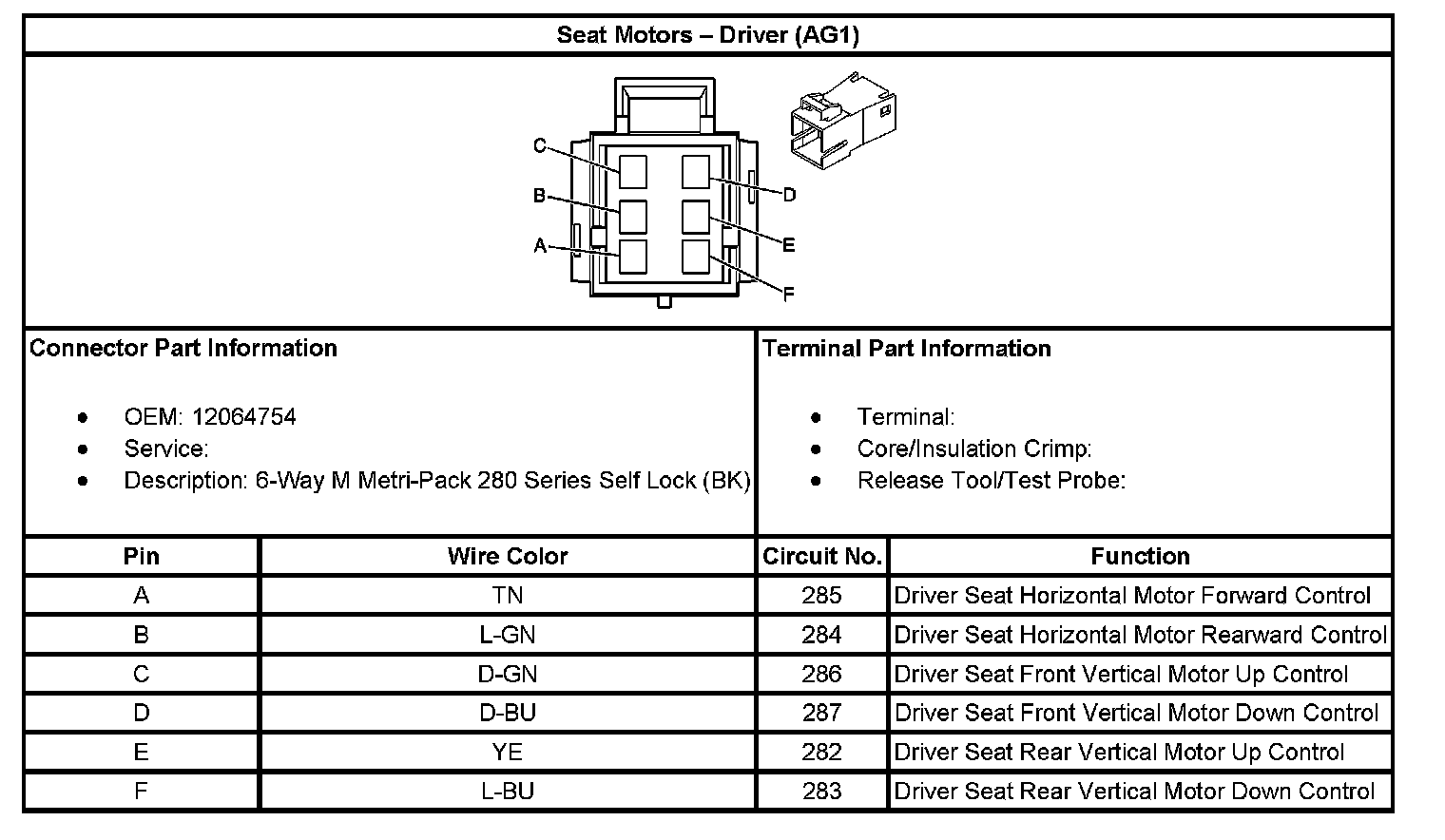

Seat Motors - Driver (With RPO Code AG1):

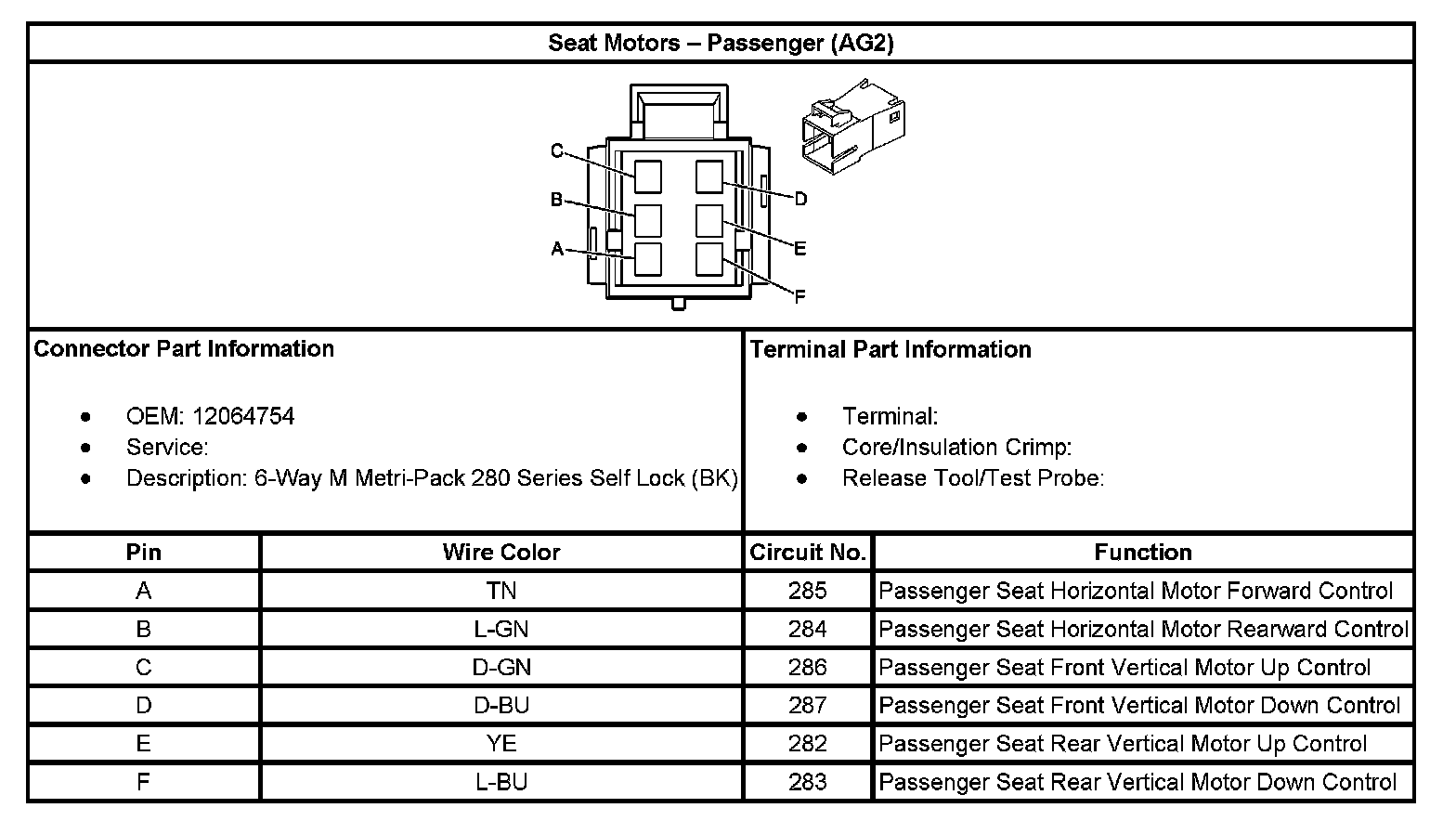

Seat Motors - Passenger (With RPO Code AG2):
