Home >> Hummer >> 2006 >> H2 V8-6.0L >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Charging System Test

Charging System Test

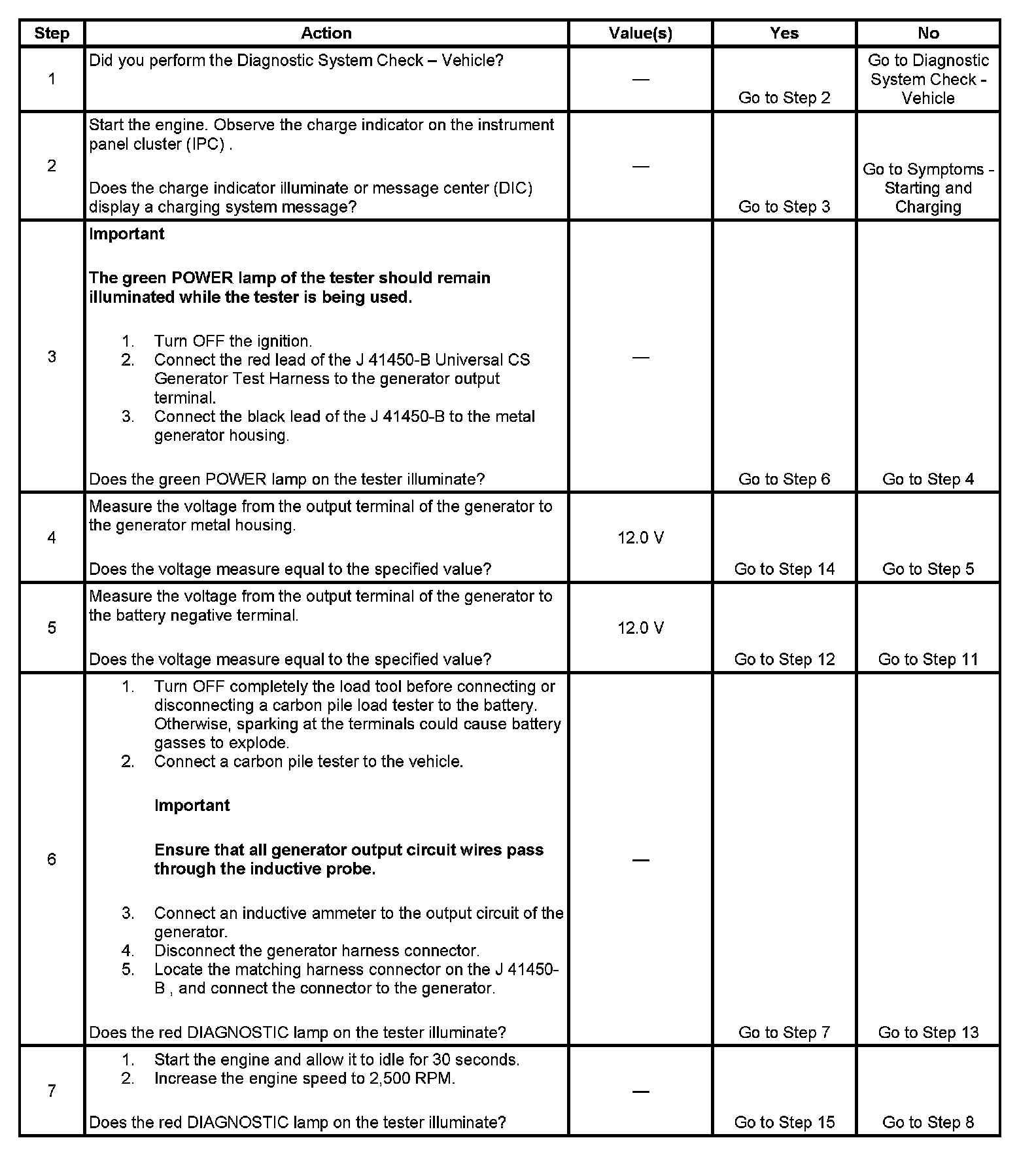

Steps 1 - 7:

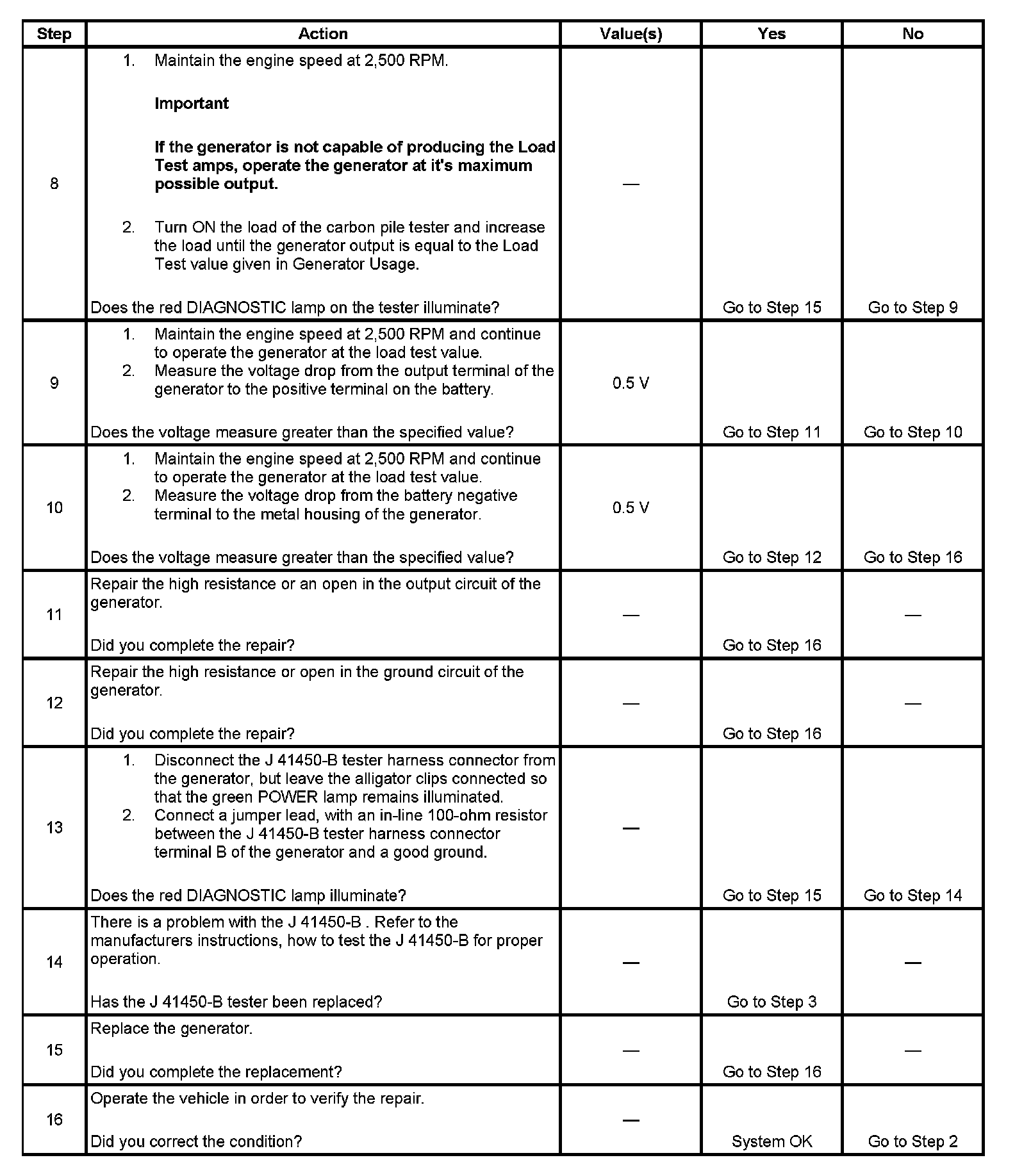

Steps 8 - 16:
