Relay Block - I/P C1

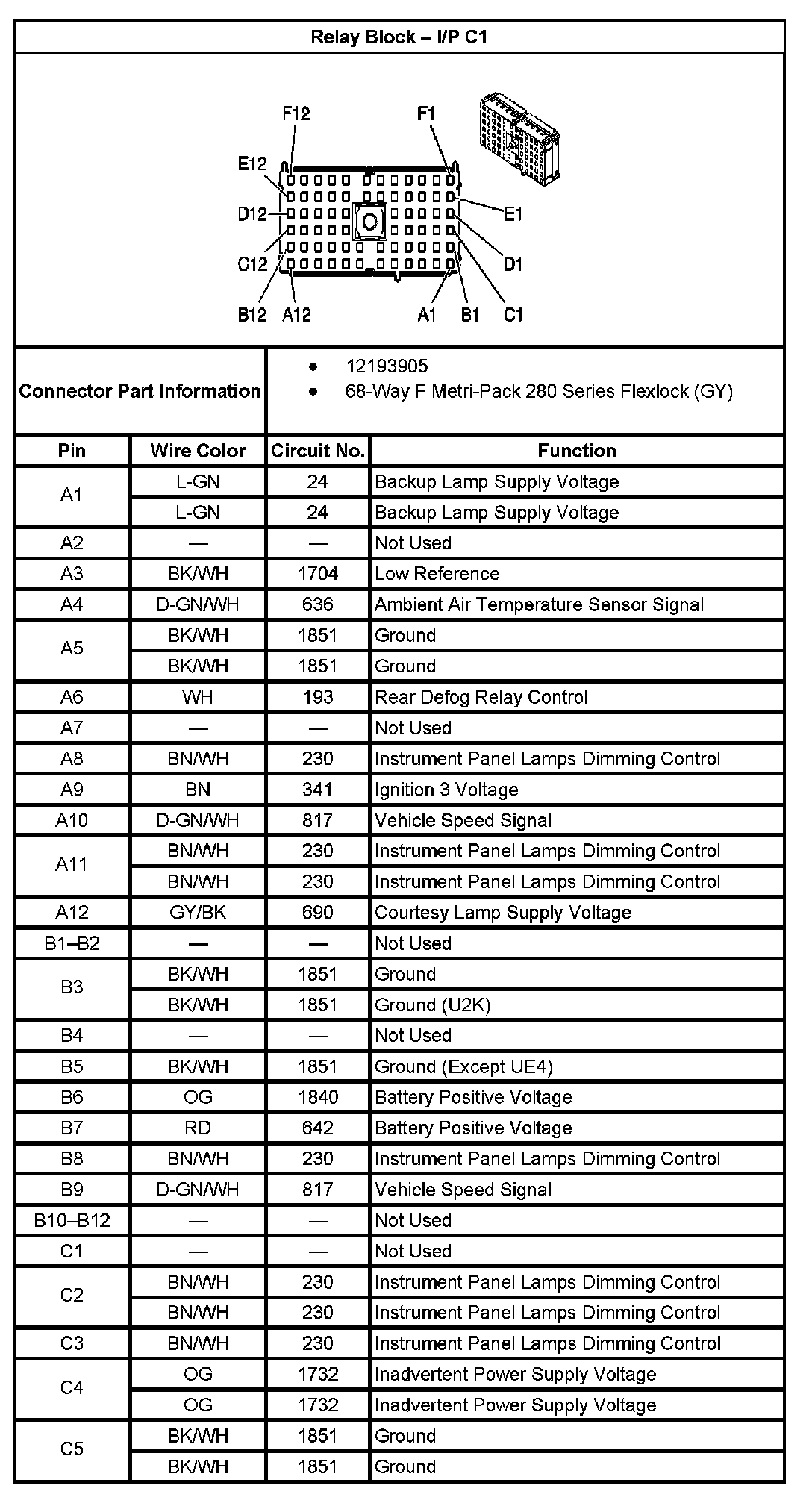

Relay Block - I/P C1 (Part 1):

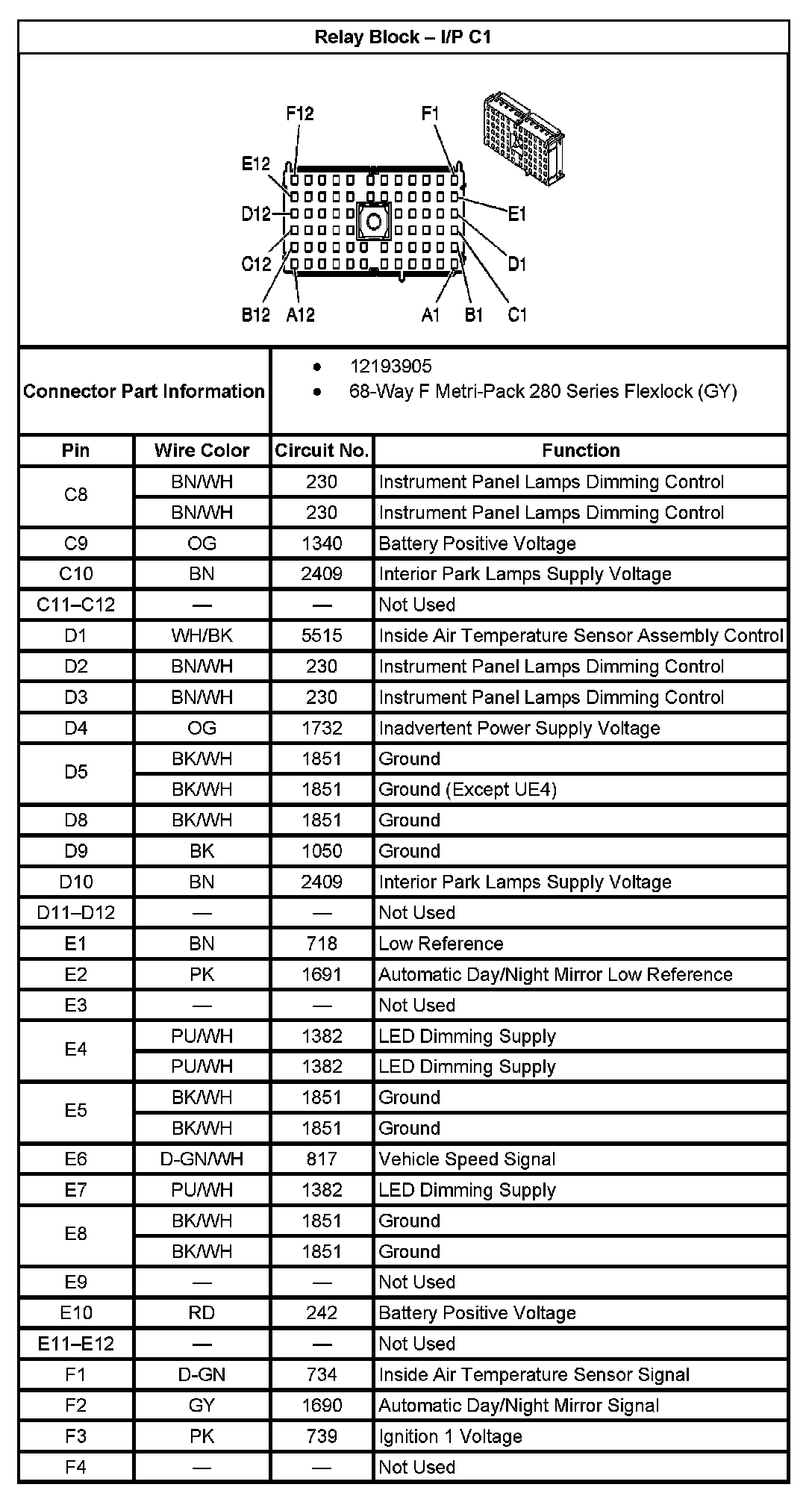

Relay Block - I/P C1 (Part 2):

Relay Block - I/P C1 (Part 3):
