Home >> Hummer >> 2006 >> H1 V8-6.6L DSL Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Crankshaft Position Sensor >> Locations

Crankshaft Position Sensor: Locations

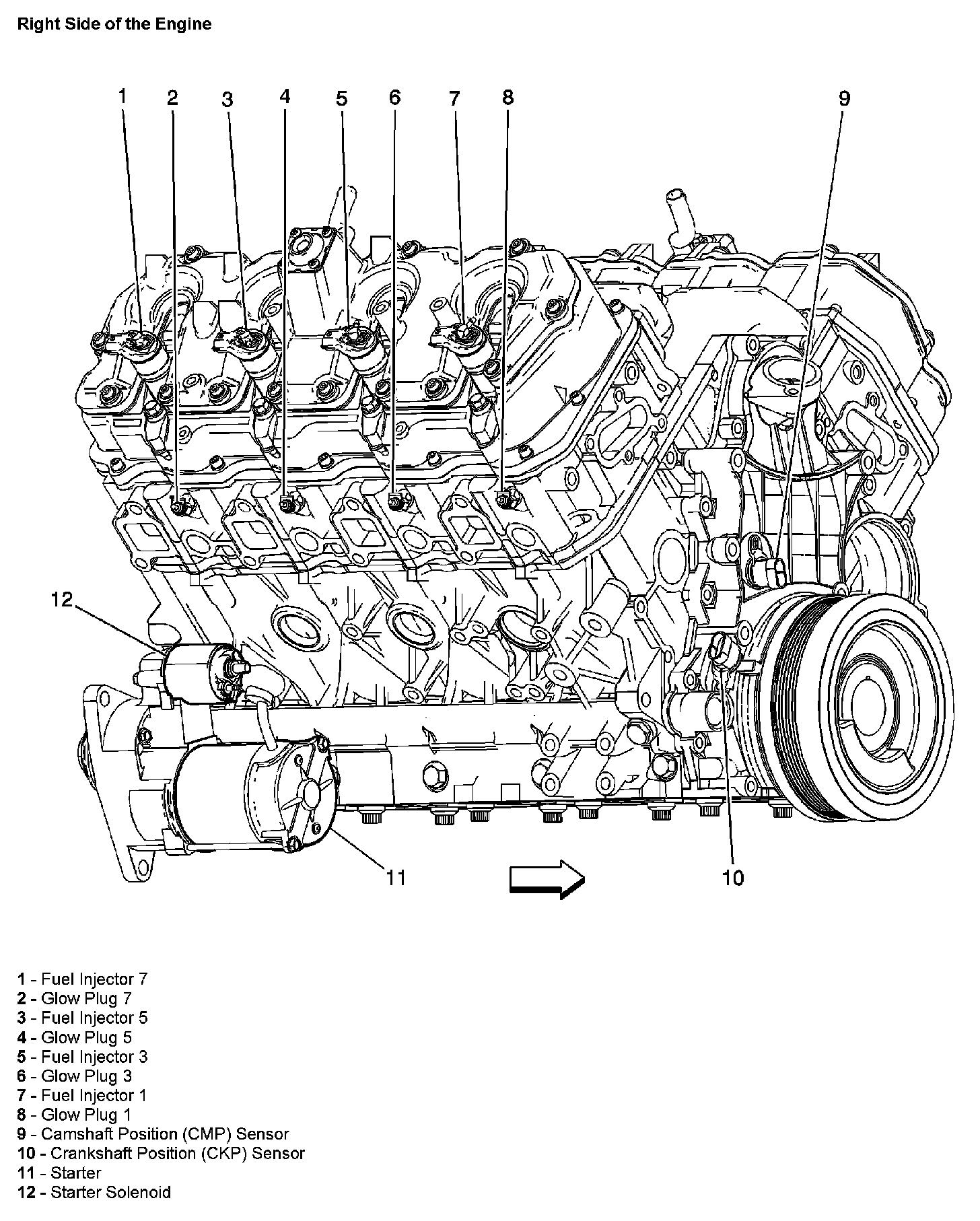

Right Side Of The Engine:
