Home >> Hummer >> 2005 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Control Module

Wiper Control Module

Rear Window Wiper Module (Except SUT):

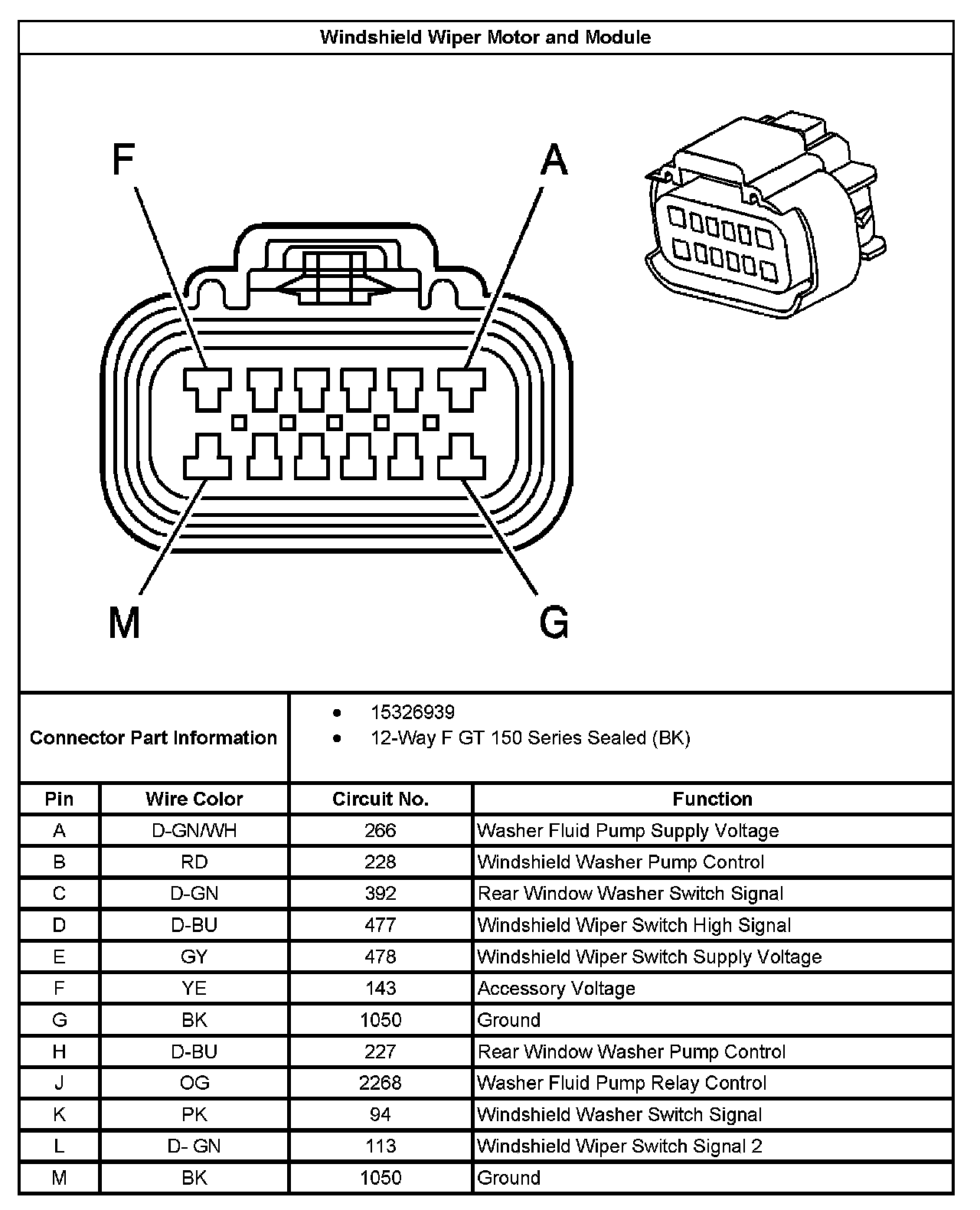

Windshield Wiper Motor And Module:
