Connector Views
>>
Trunk / Liftgate Latch
Trunk / Liftgate Latch

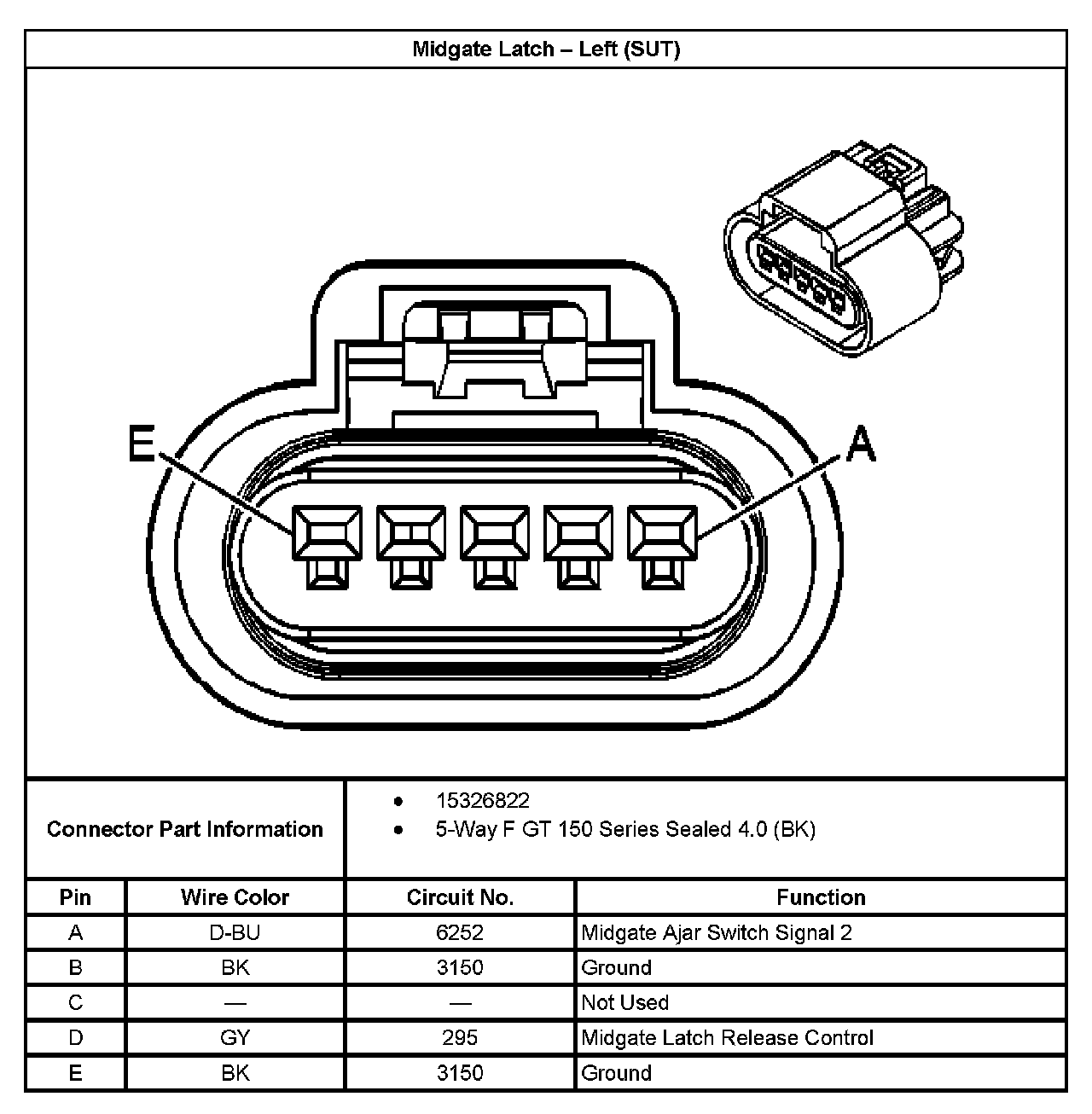

Midgate Latch - Left (SUT):

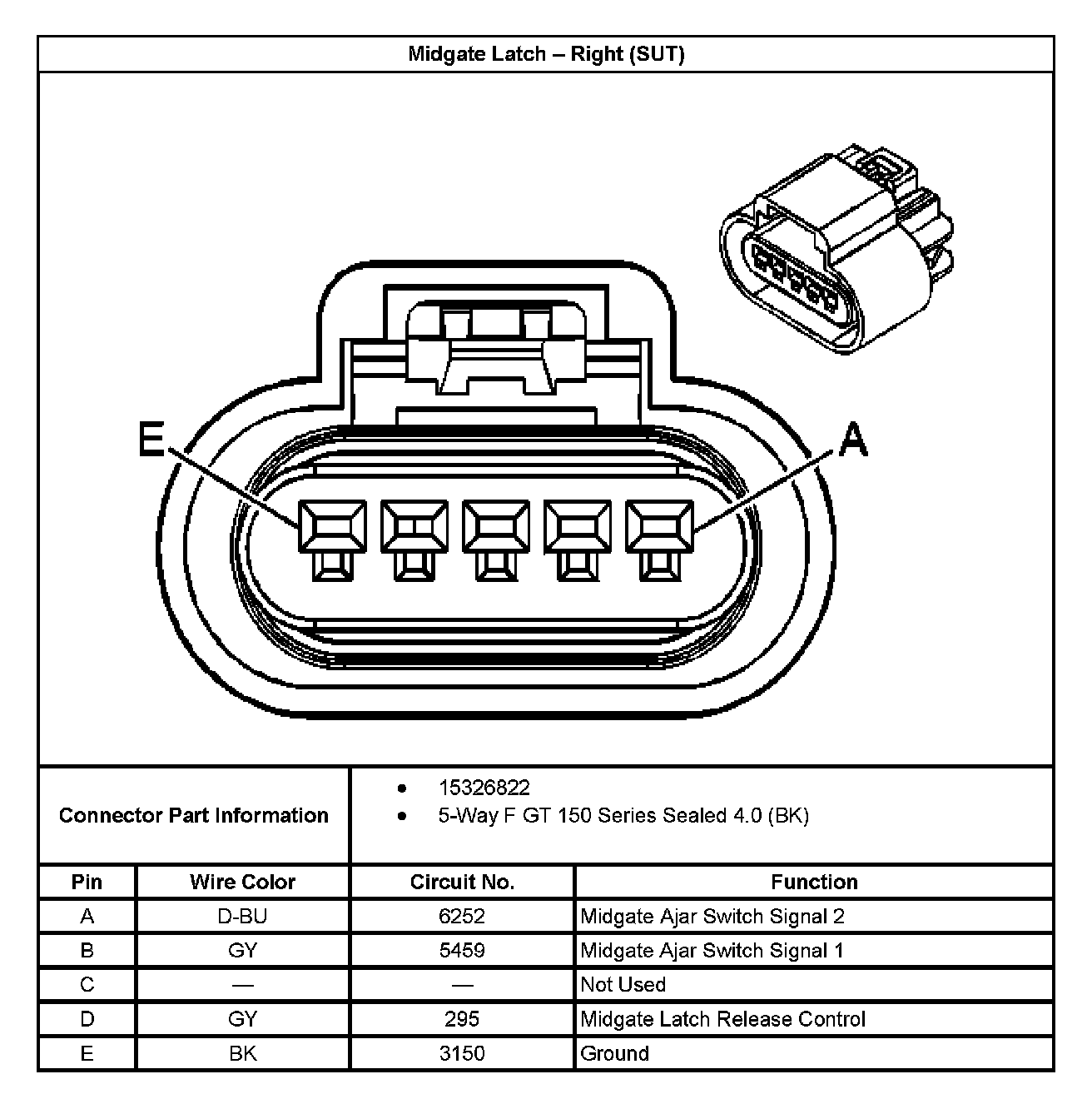

Midgate Latch - Right (SUT):
