Relay Block - I/P C1

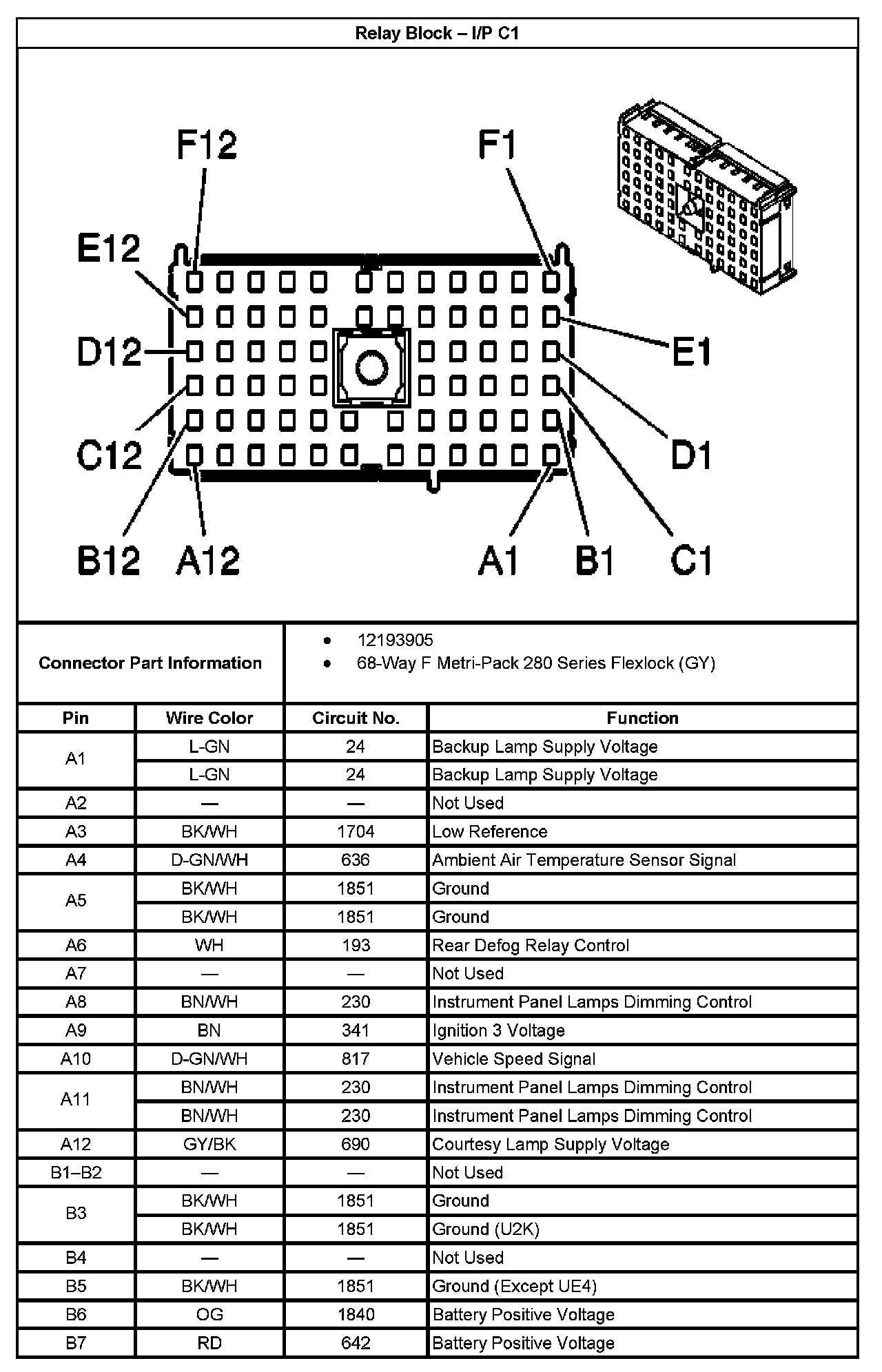

Relay Block - I/P C1 Part 1:

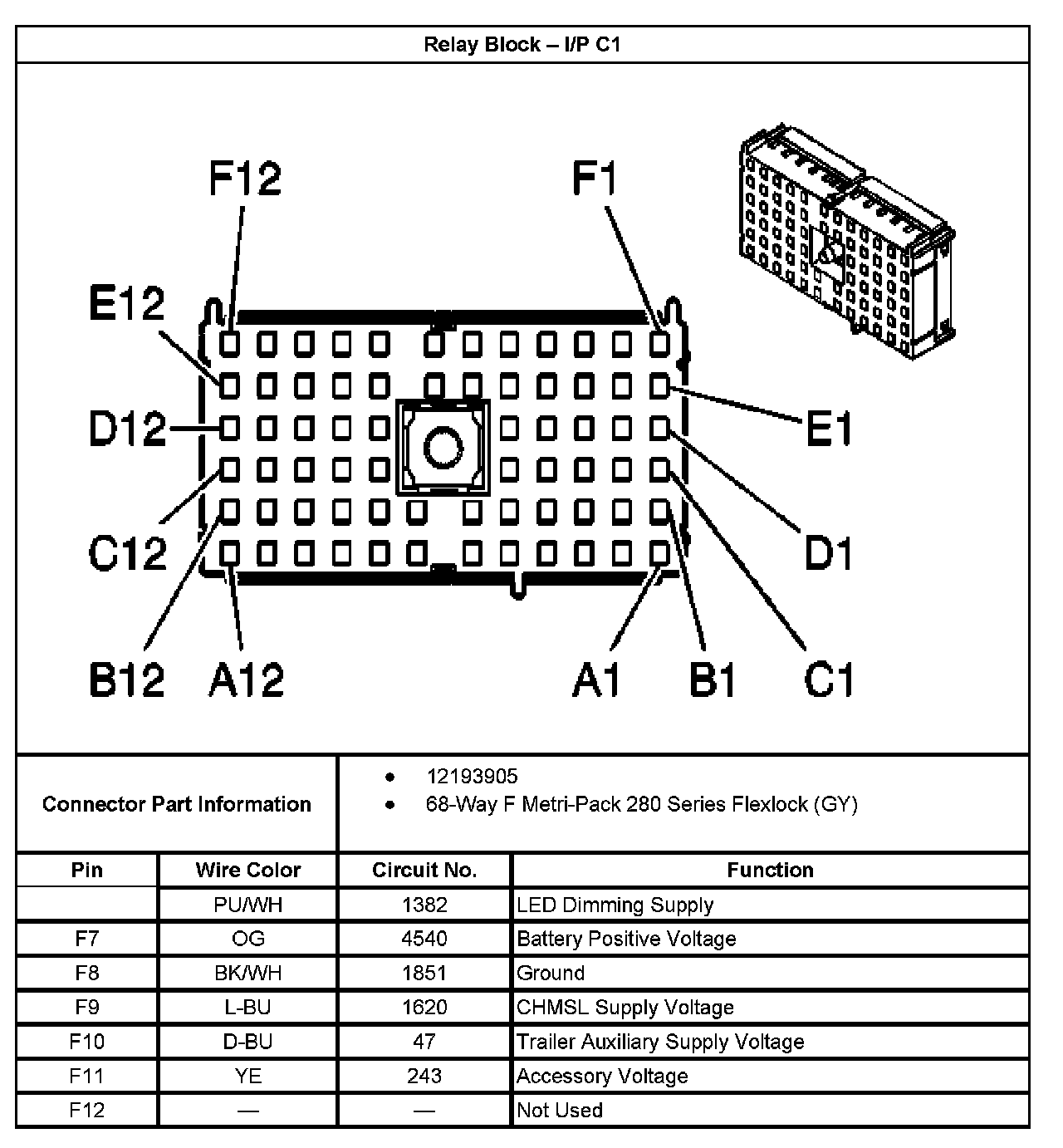

Relay Block - I/P C1 Part 2:

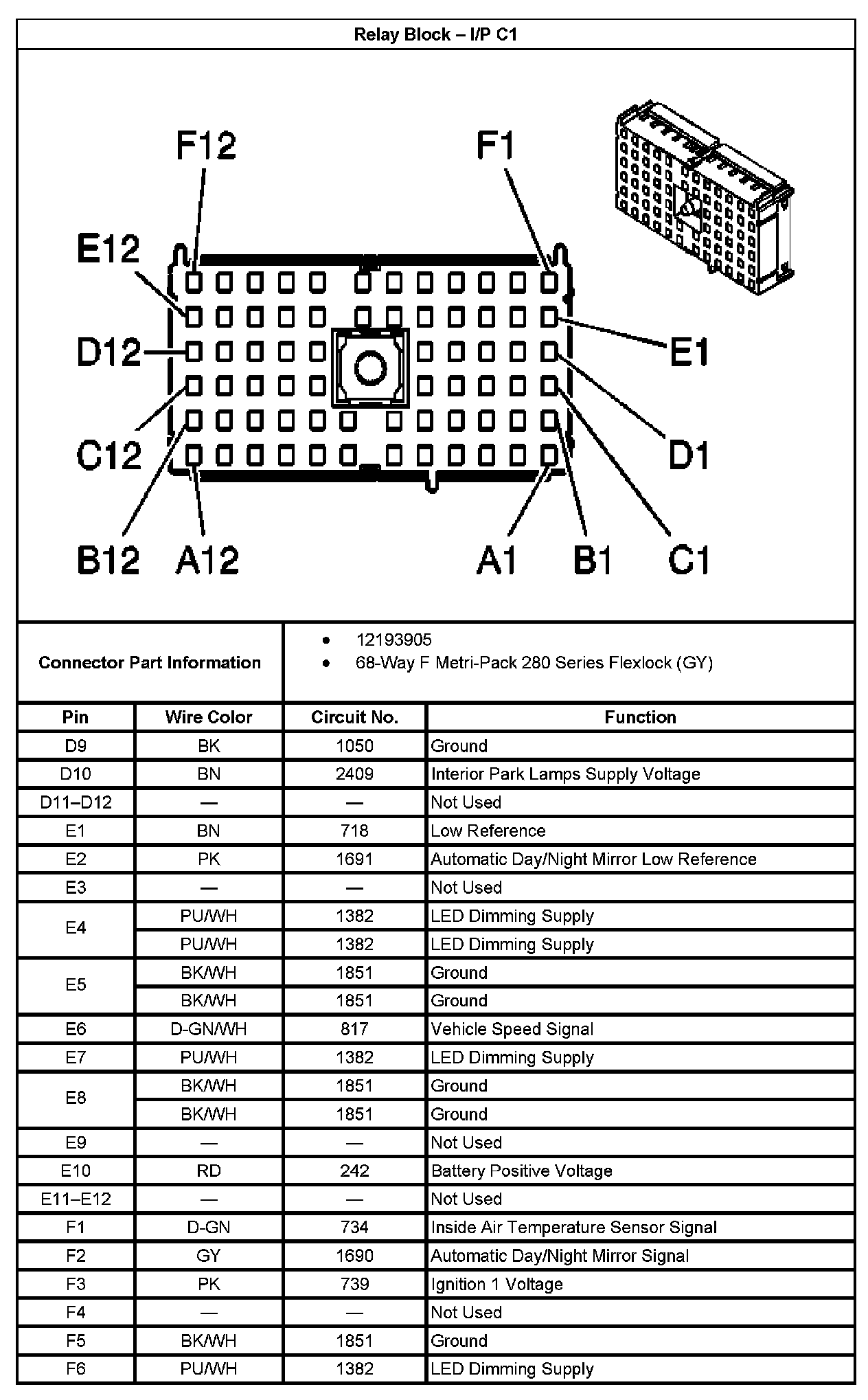

Relay Block - I/P C1 Part 3:

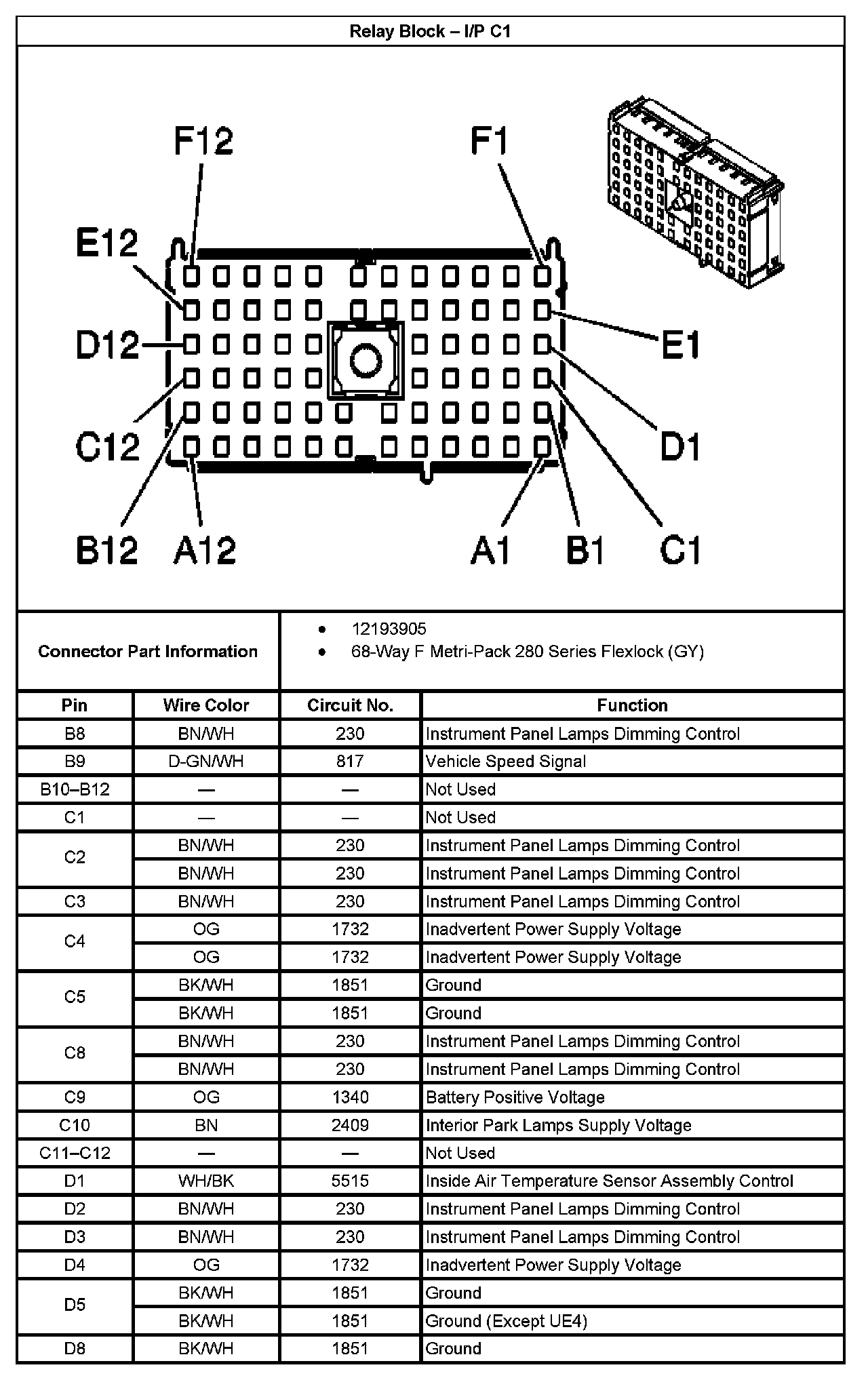

Relay Block - I/P C1 Part 4:
