Fuse Block - Underhood C2

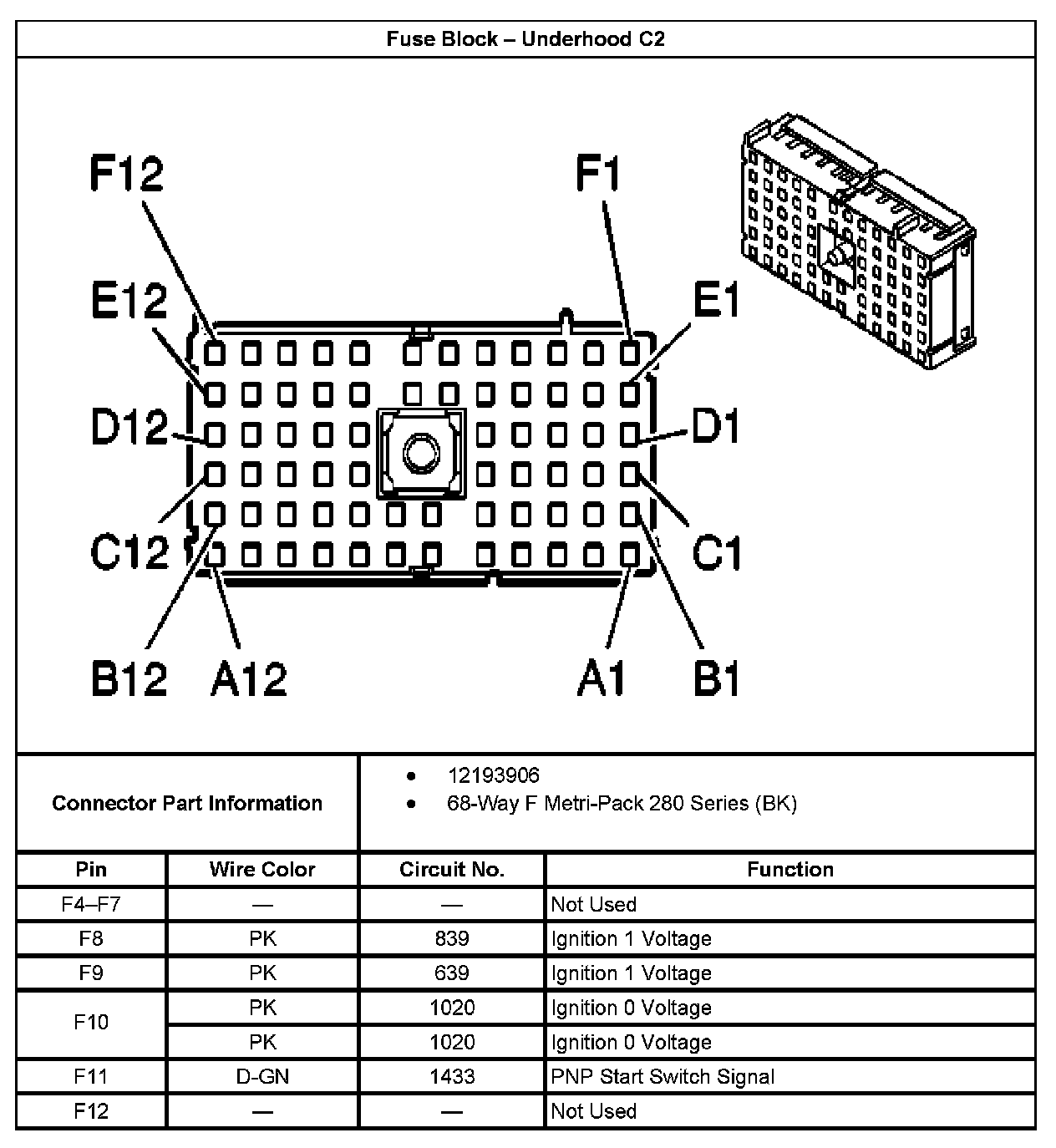

Fuse Block - Underhood C2 Part 1:

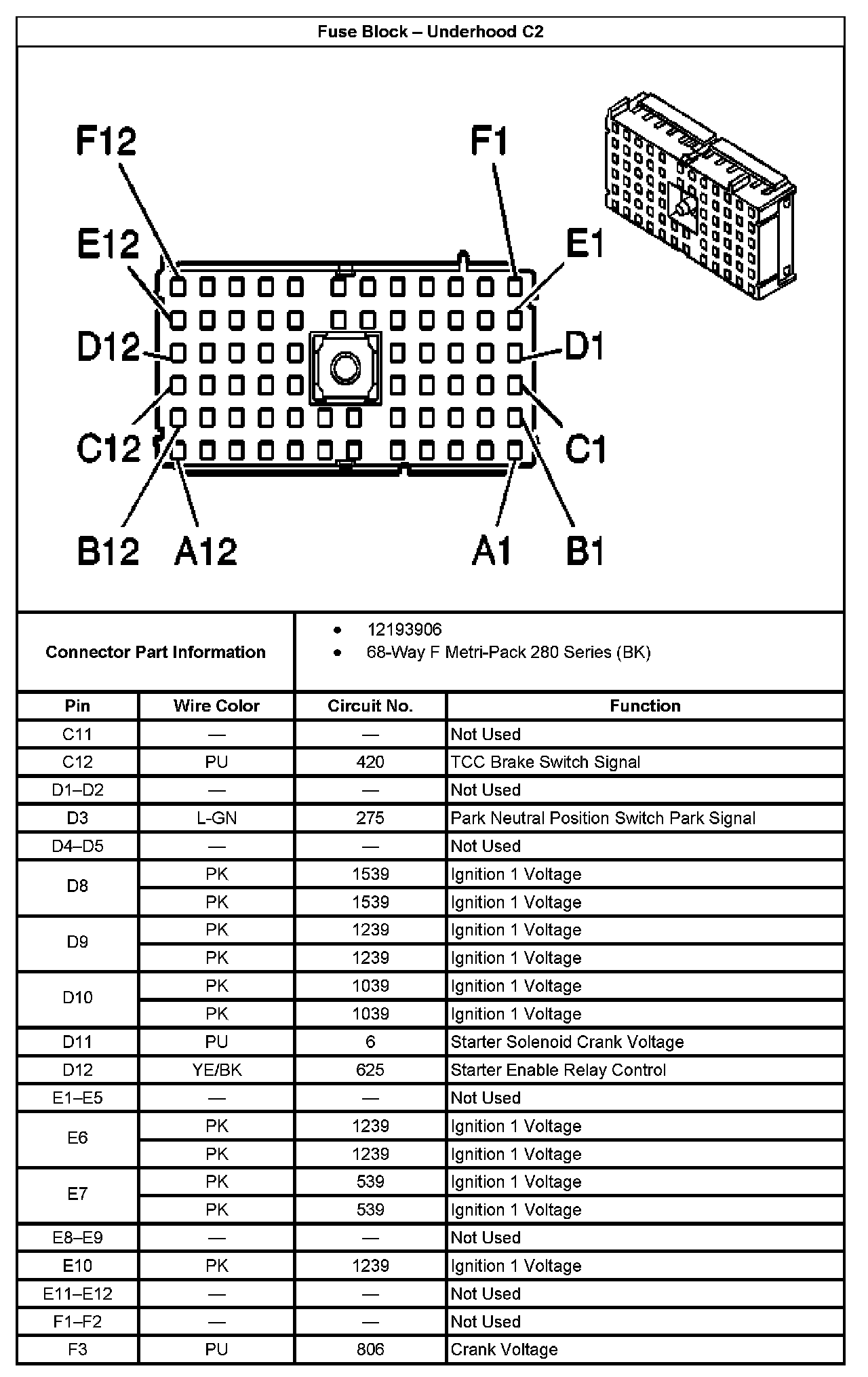

Fuse Block - Underhood C2 Part 2:

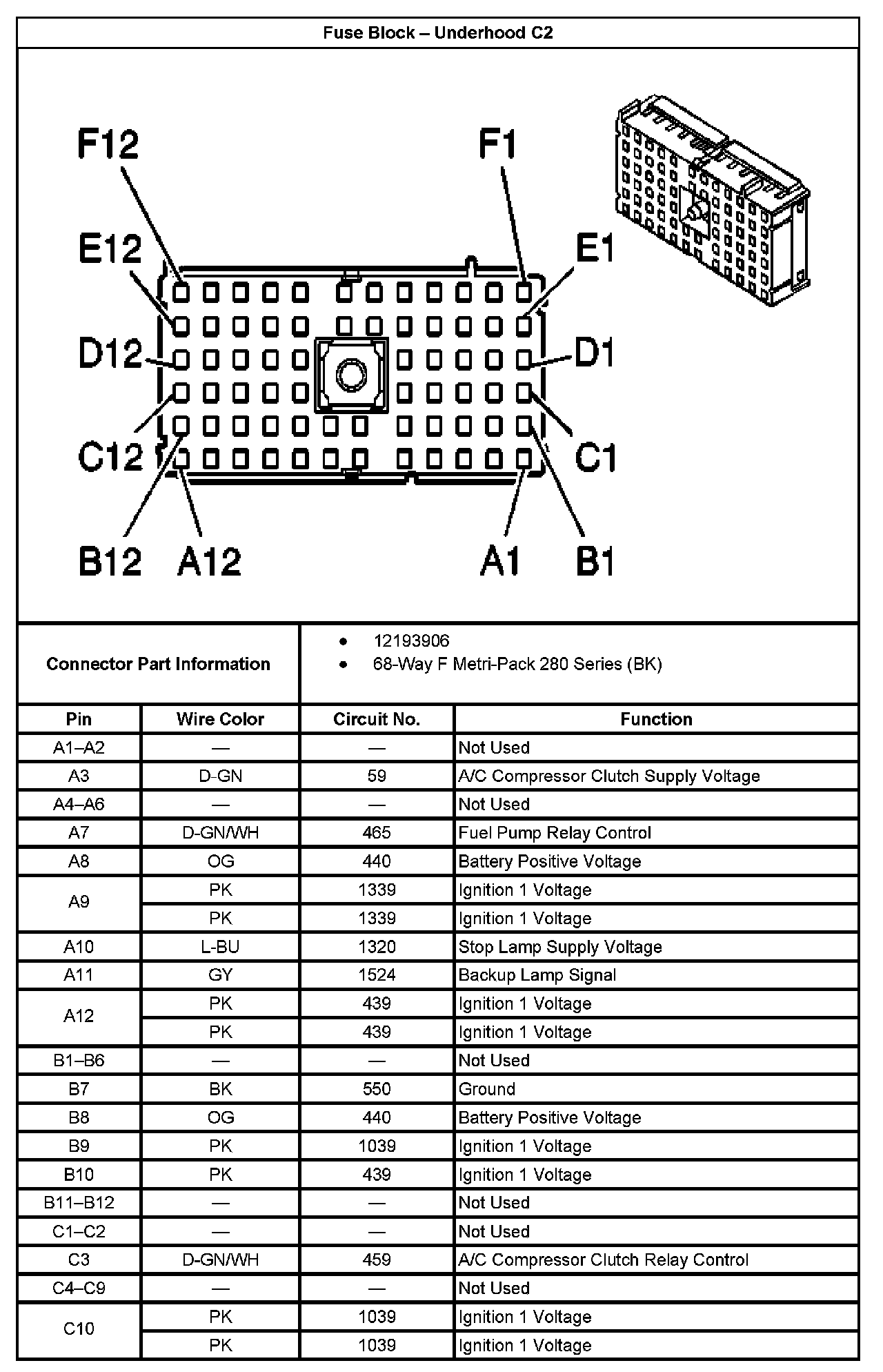

Fuse Block - Underhood C2 Part 3:
