Fluid Pressure Sensor/Switch, A/T

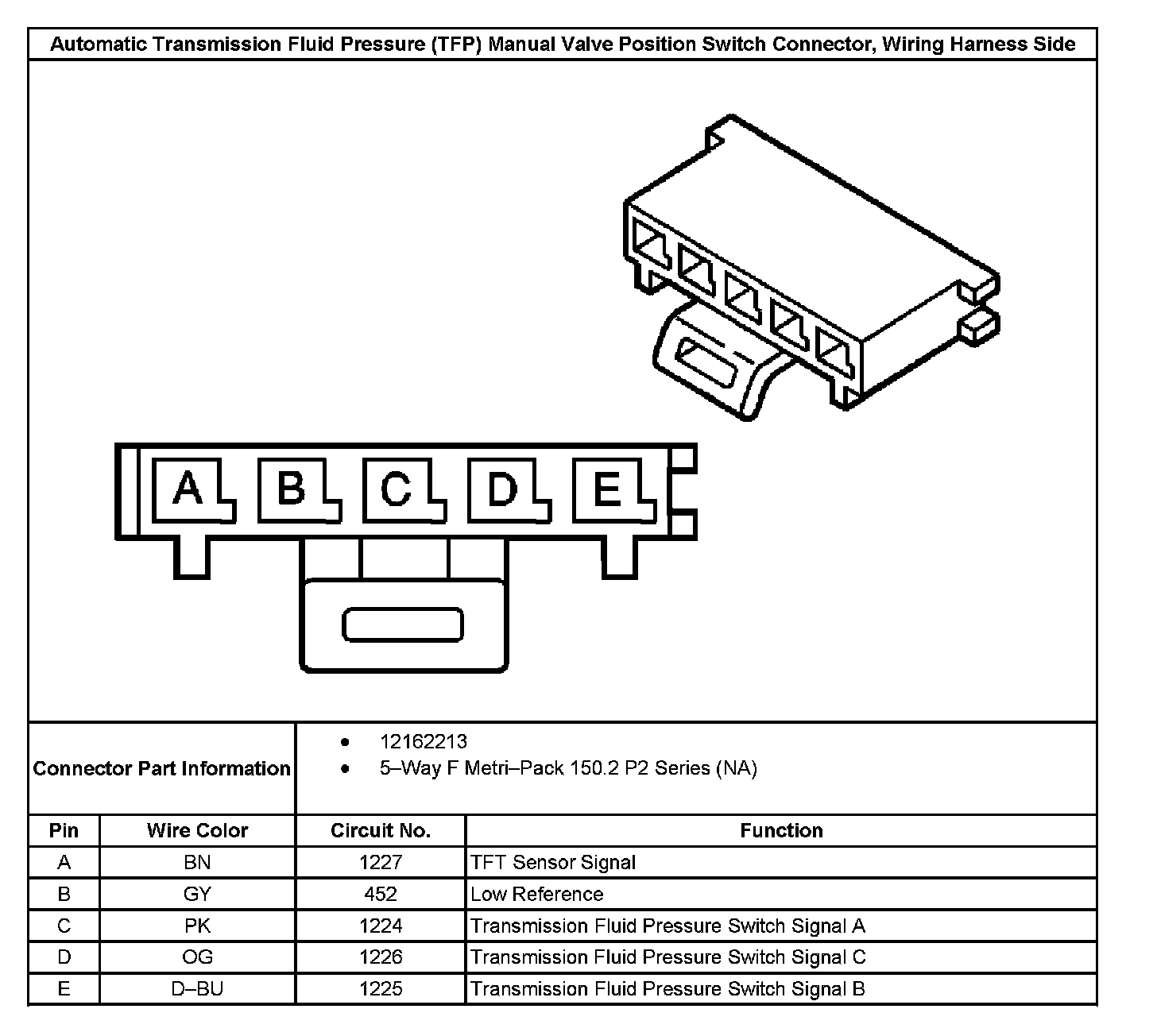

Automatic Transmission Fluid Pressure Manual Position Switch Connector, Wiring Harness Side:
