77. Manual Detent Spring Installation

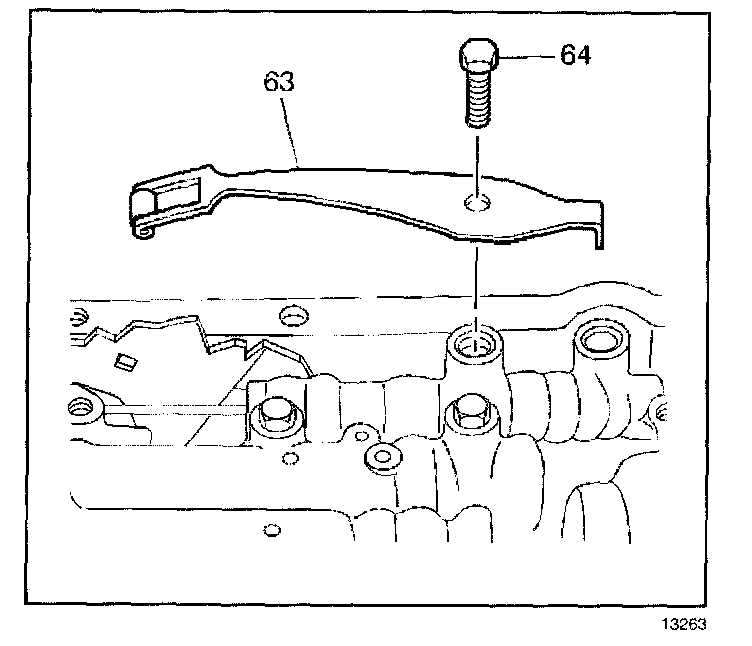

MANUAL DETENT SPRING INSTALLATION




1. Inspect the manual detent spring assembly (63) for cracks or damage
2. Install the manual detent spring assembly (63).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the manual detent spring bolt (64).

Tighten
Tighten the bolt to 24 N.m (18 lb ft).
