Home >> Hummer >> 2004 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Parking Lock and Manual Shift Shaft Assembly

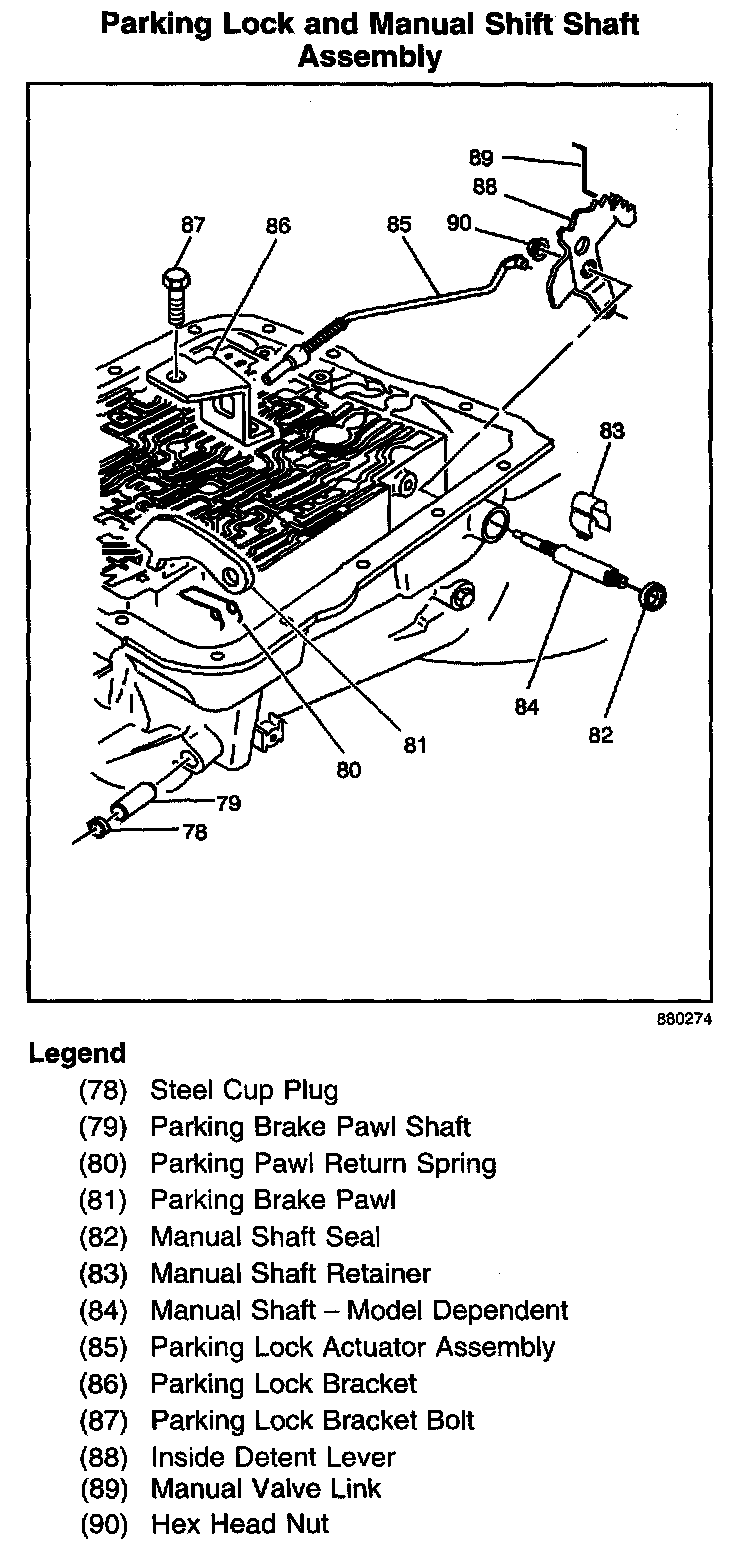

Parking Lock and Manual Shift Shaft Assembly

Parking Lock And Manual Shift Shaft Assembly:
