Case and Associated Parts

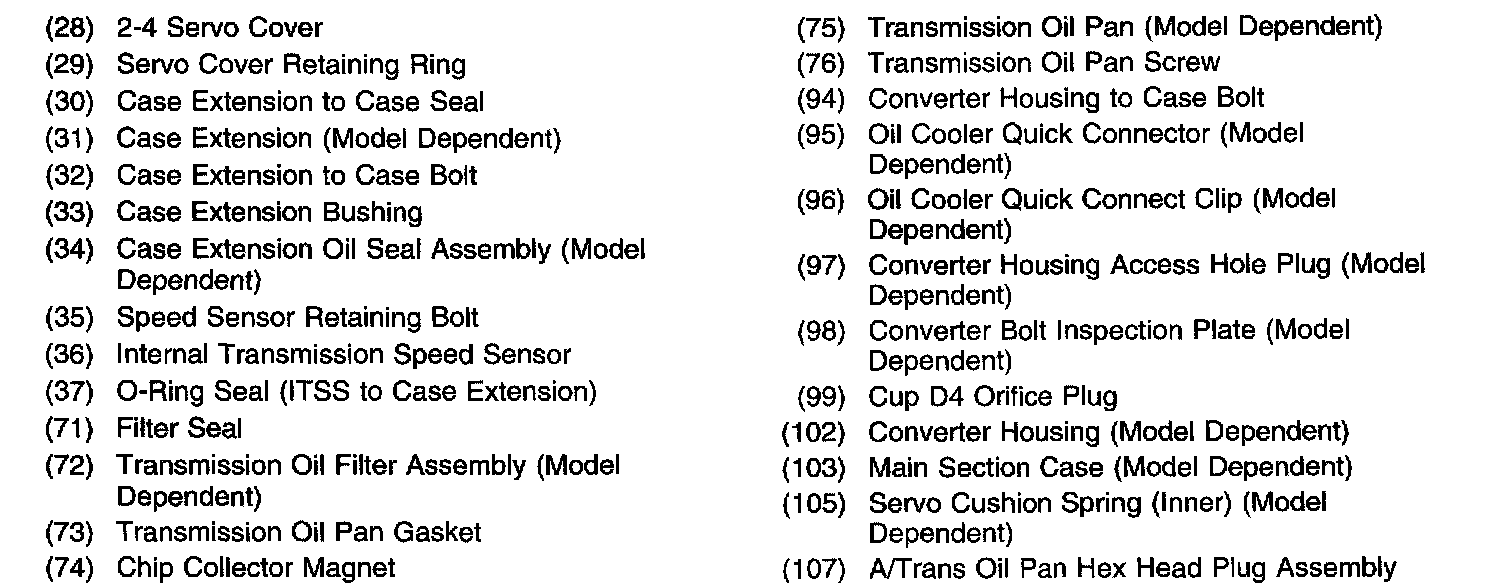

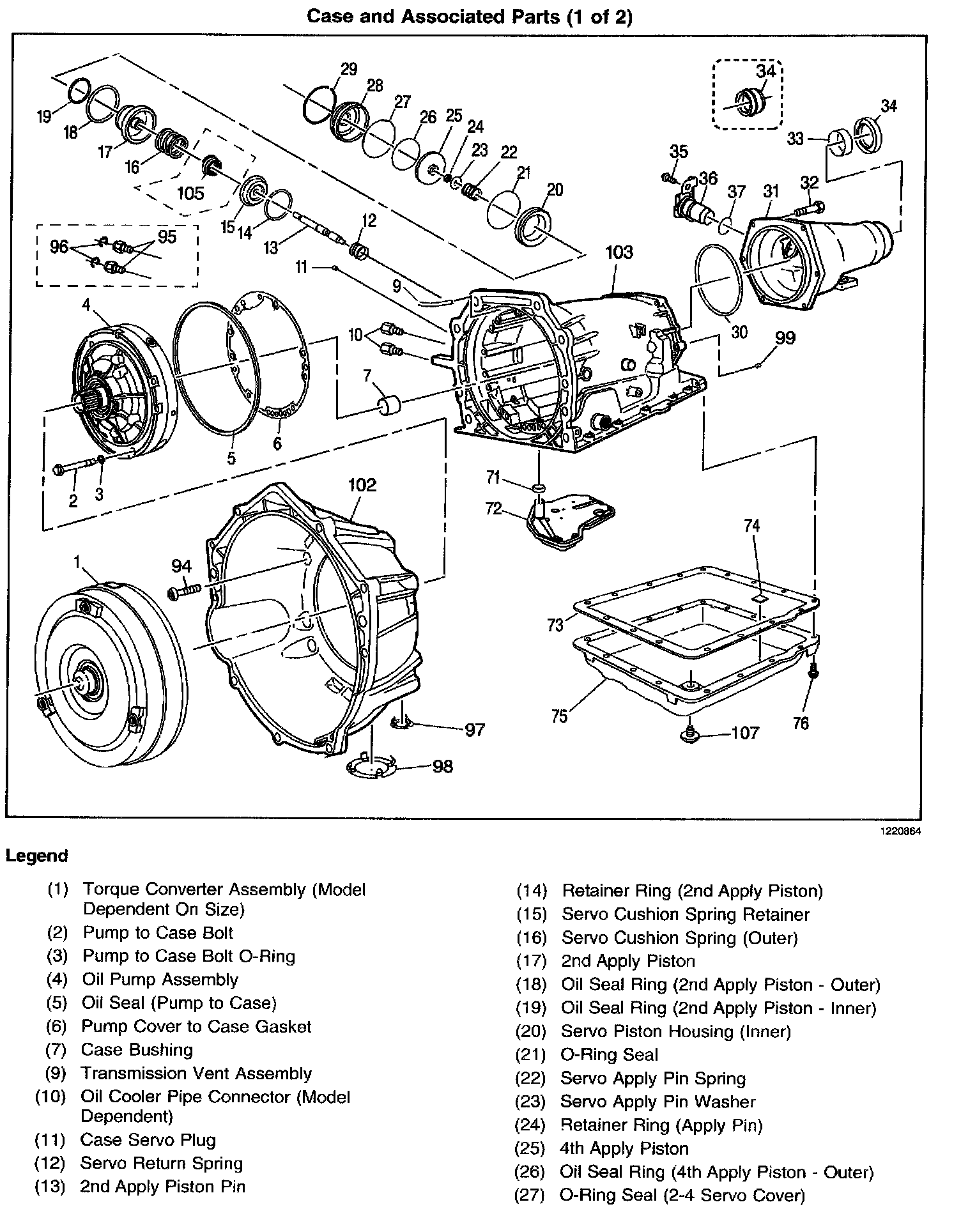

Case And Associated Parts Part 1:

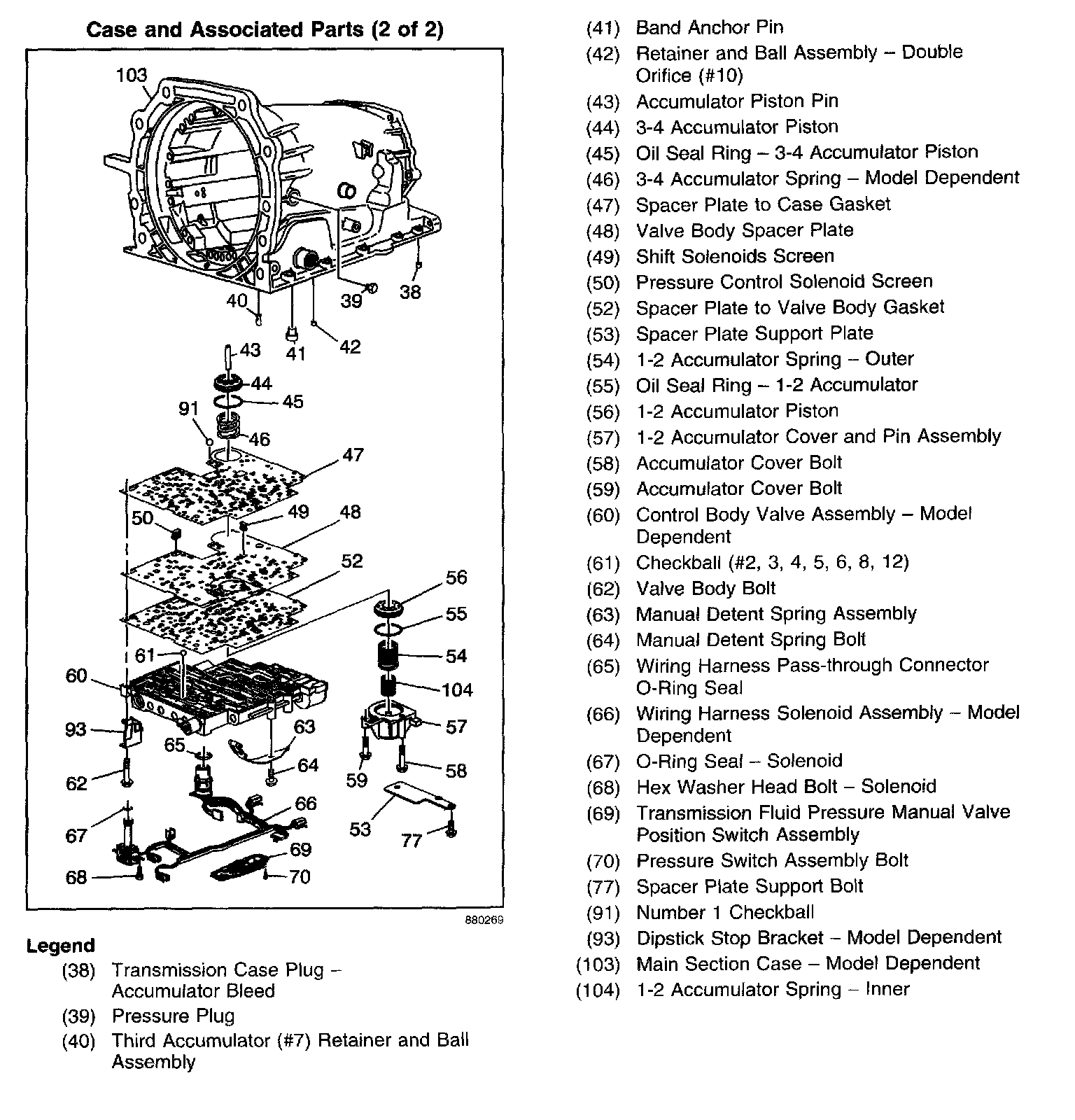

Case And Associated Parts Part 2:



Case And Associated Parts Part 2:
