Home >> Hummer >> 2004 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems

Antitheft and Alarm Systems

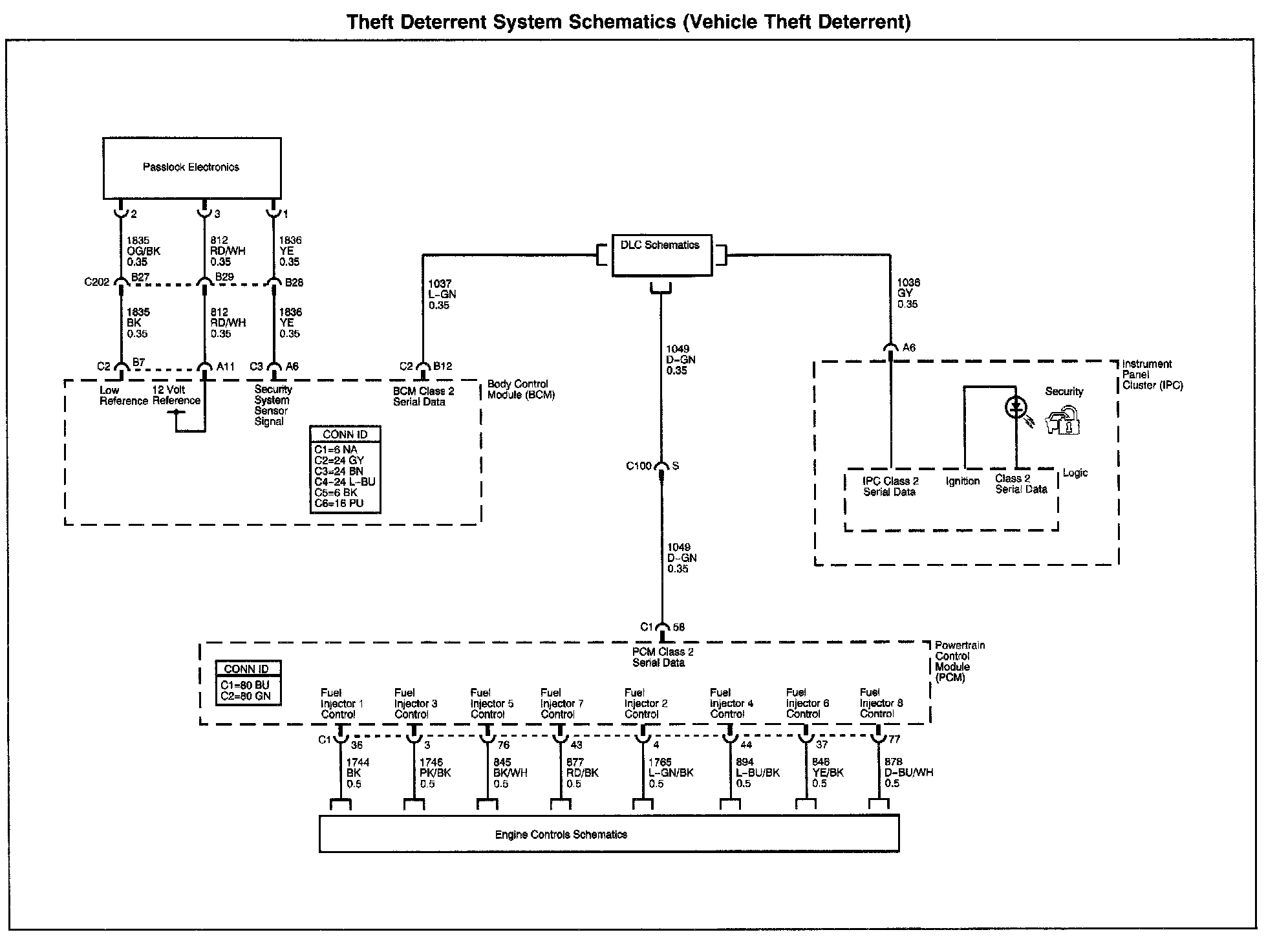

Theft Deterrent System Diagram 1:

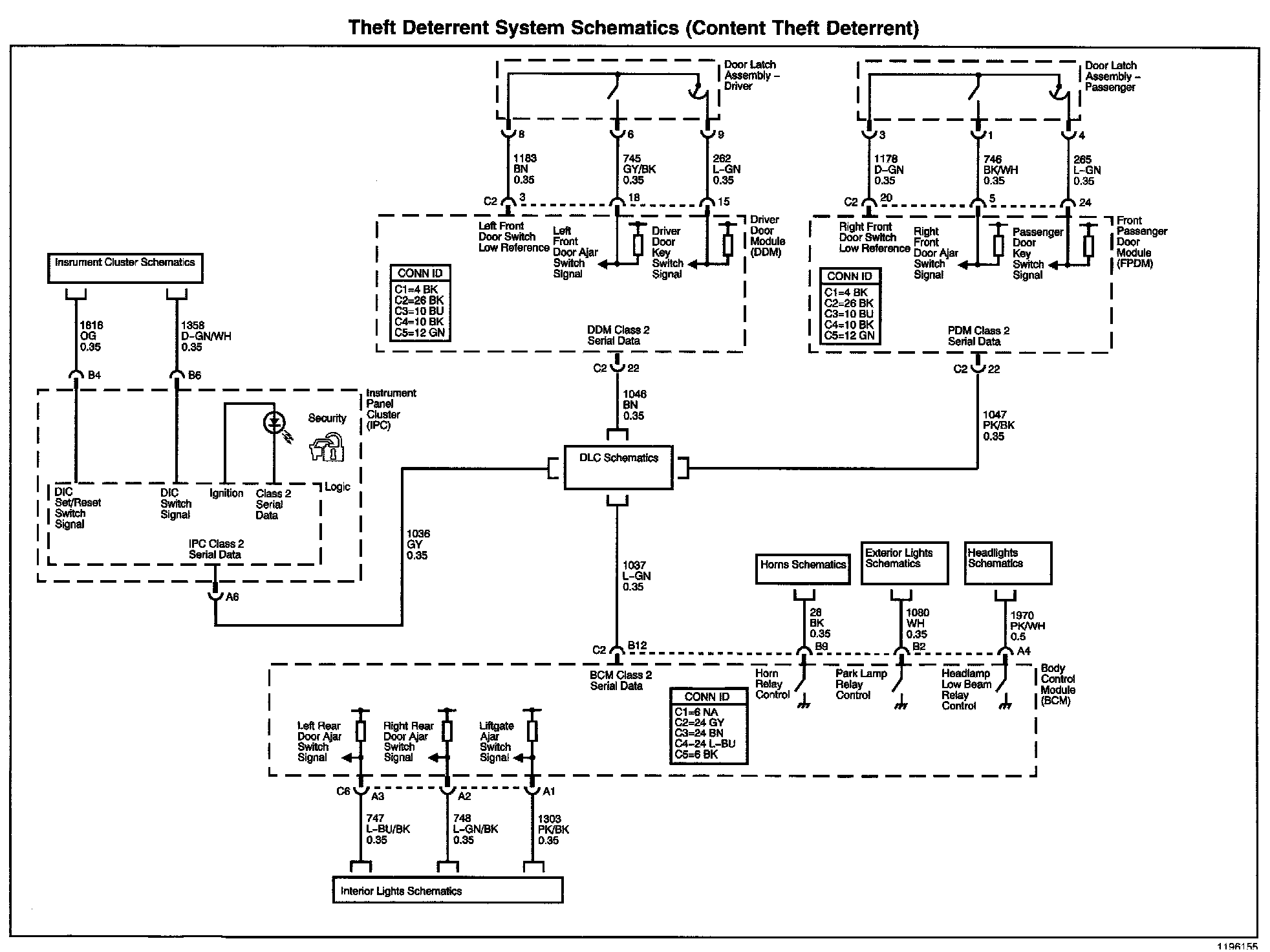

Theft Deterrent System Diagram 2:
