Home >> Hummer >> 2004 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Switch

Seat Temperature Switch

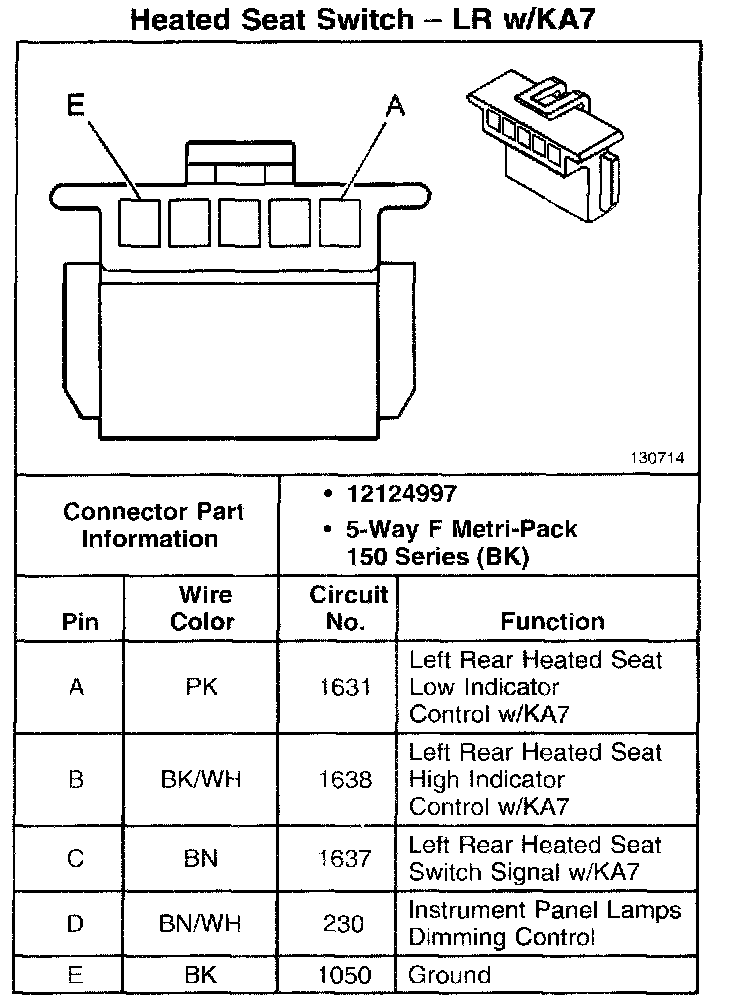

Heated Seat Switch - LR With RPO Code KA7:



Heated Seat Switch - RR With RPO Code KA7:
