Disassembled Views

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

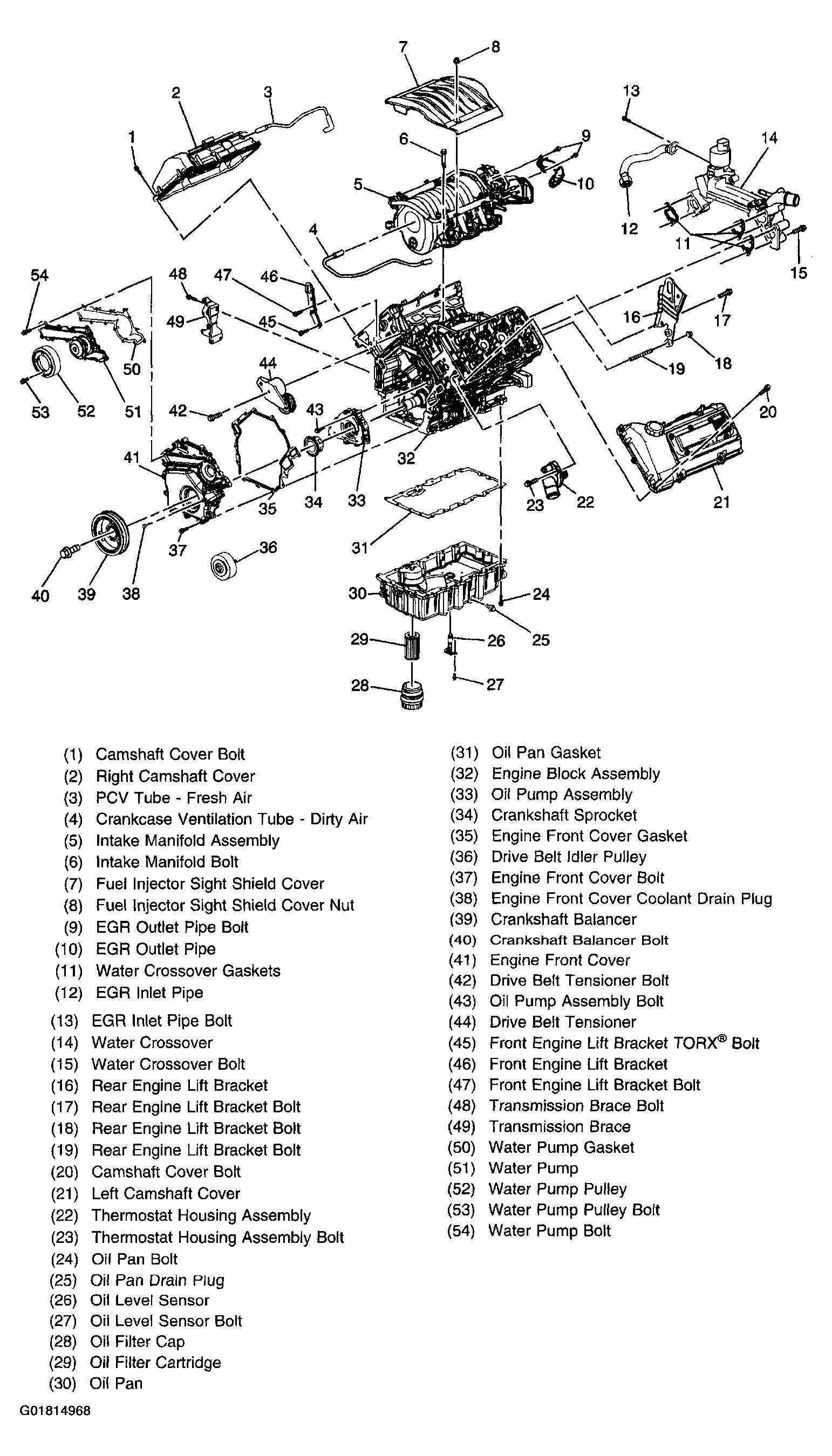

Fig 1: Engine Covers & Components Assemblies (1 of 2)

Courtesy of GENERAL MOTORS CORP.

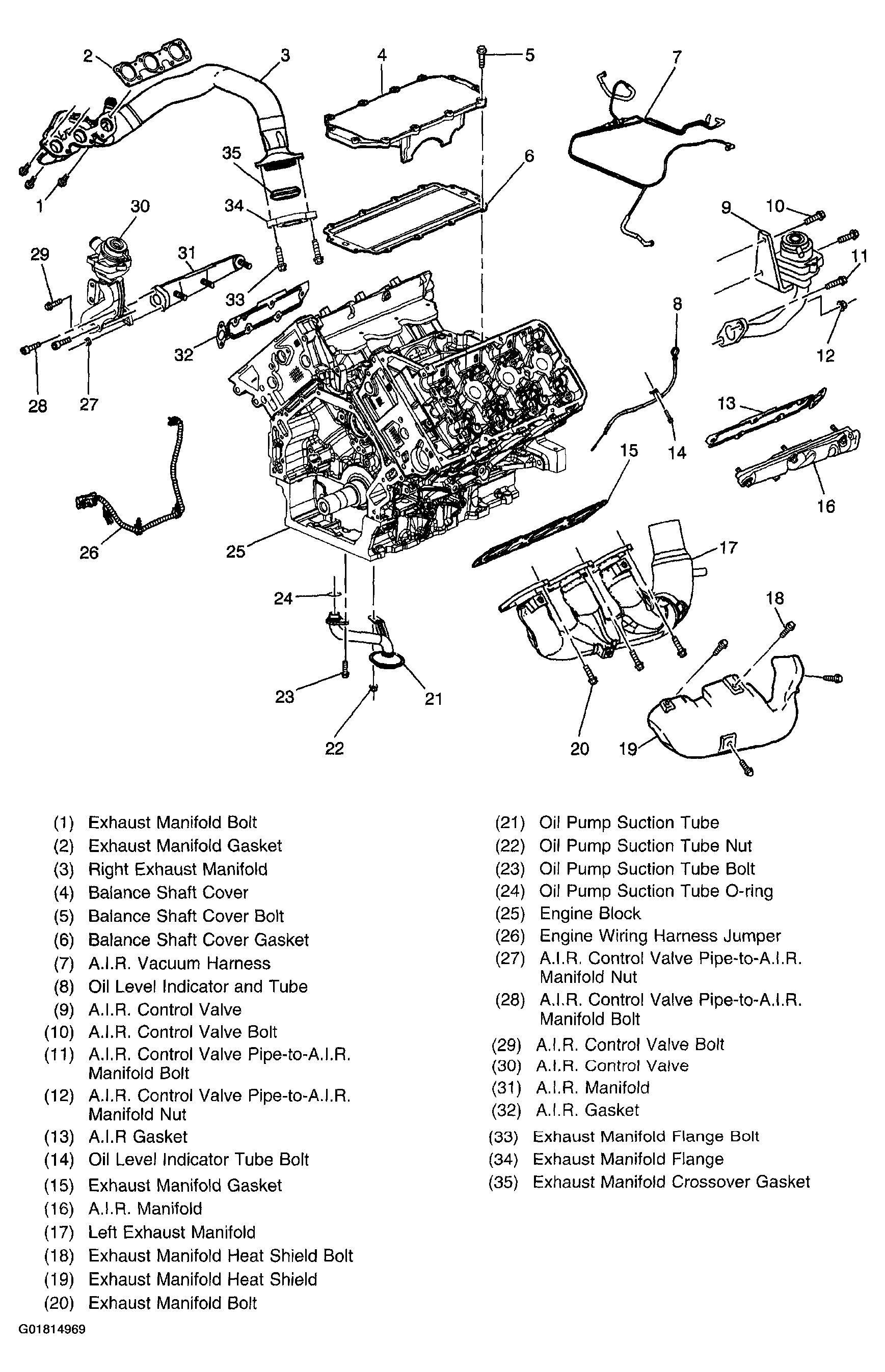

Fig 2: Engine Covers & Components Assemblies (2 of 2)

Courtesy of GENERAL MOTORS CORP.

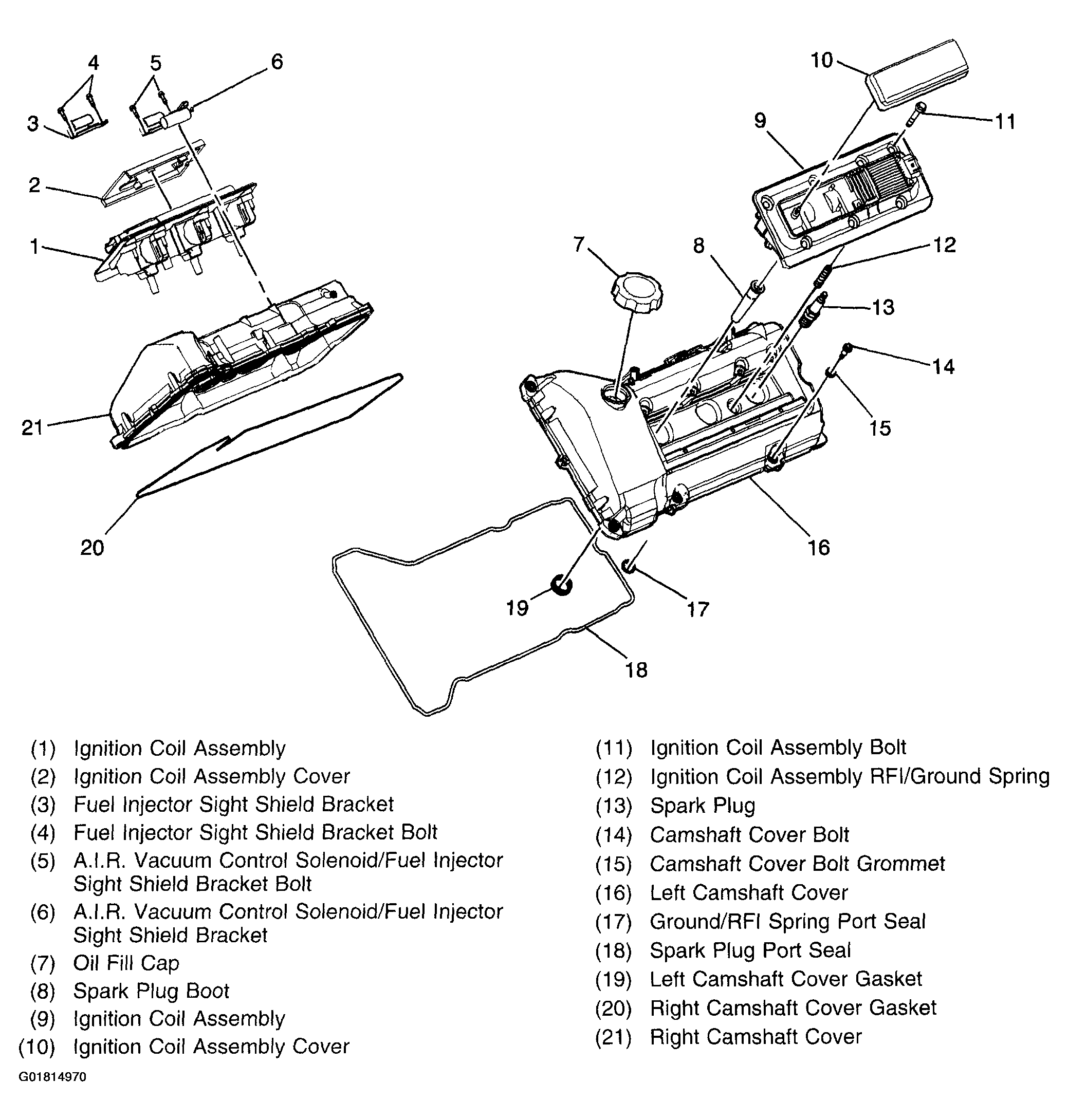

Fig 3: Camshaft Cover Assemblies

Courtesy of GENERAL MOTORS CORP.

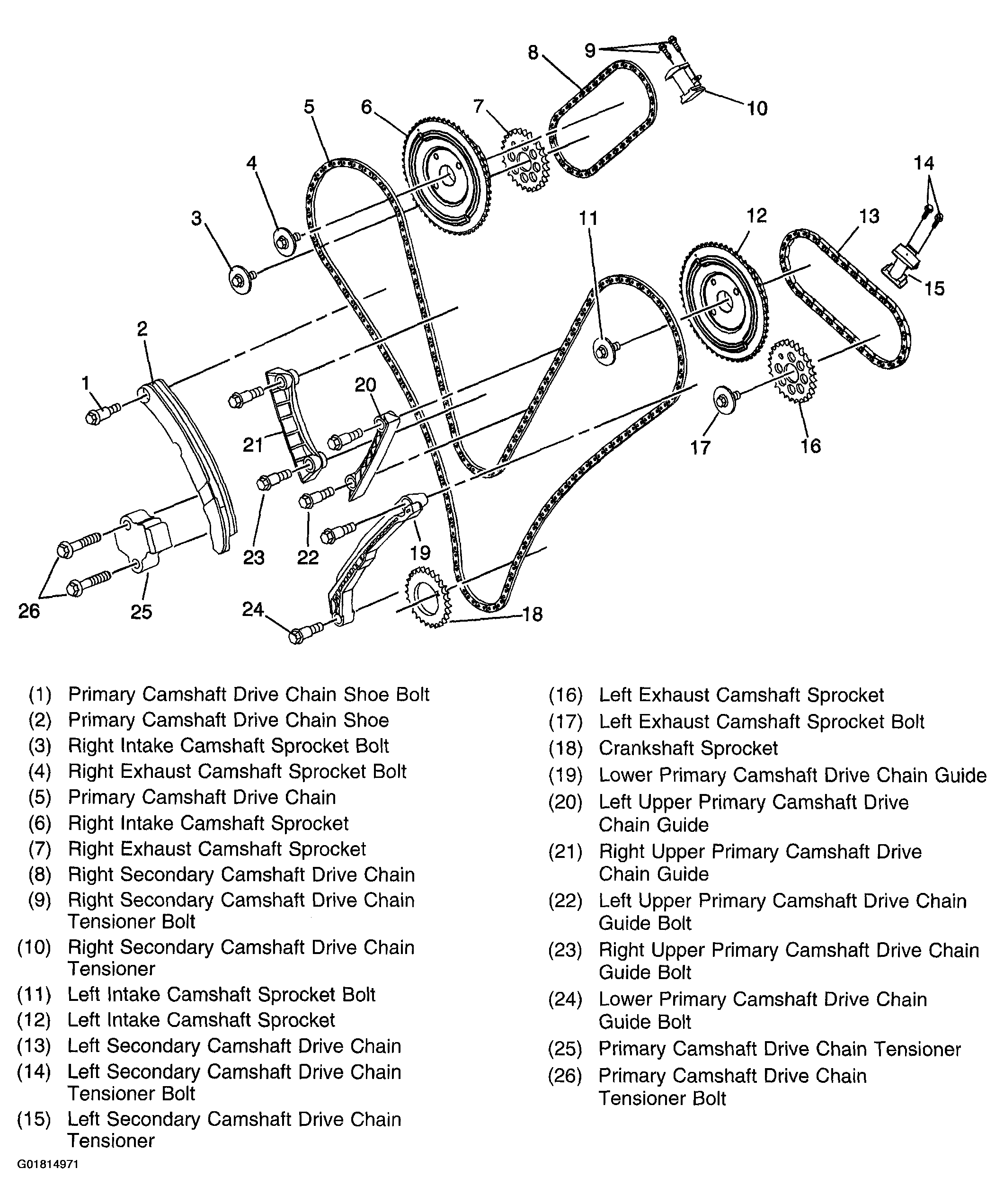

Fig 4: Camshaft Timing Components

Courtesy of GENERAL MOTORS CORP.

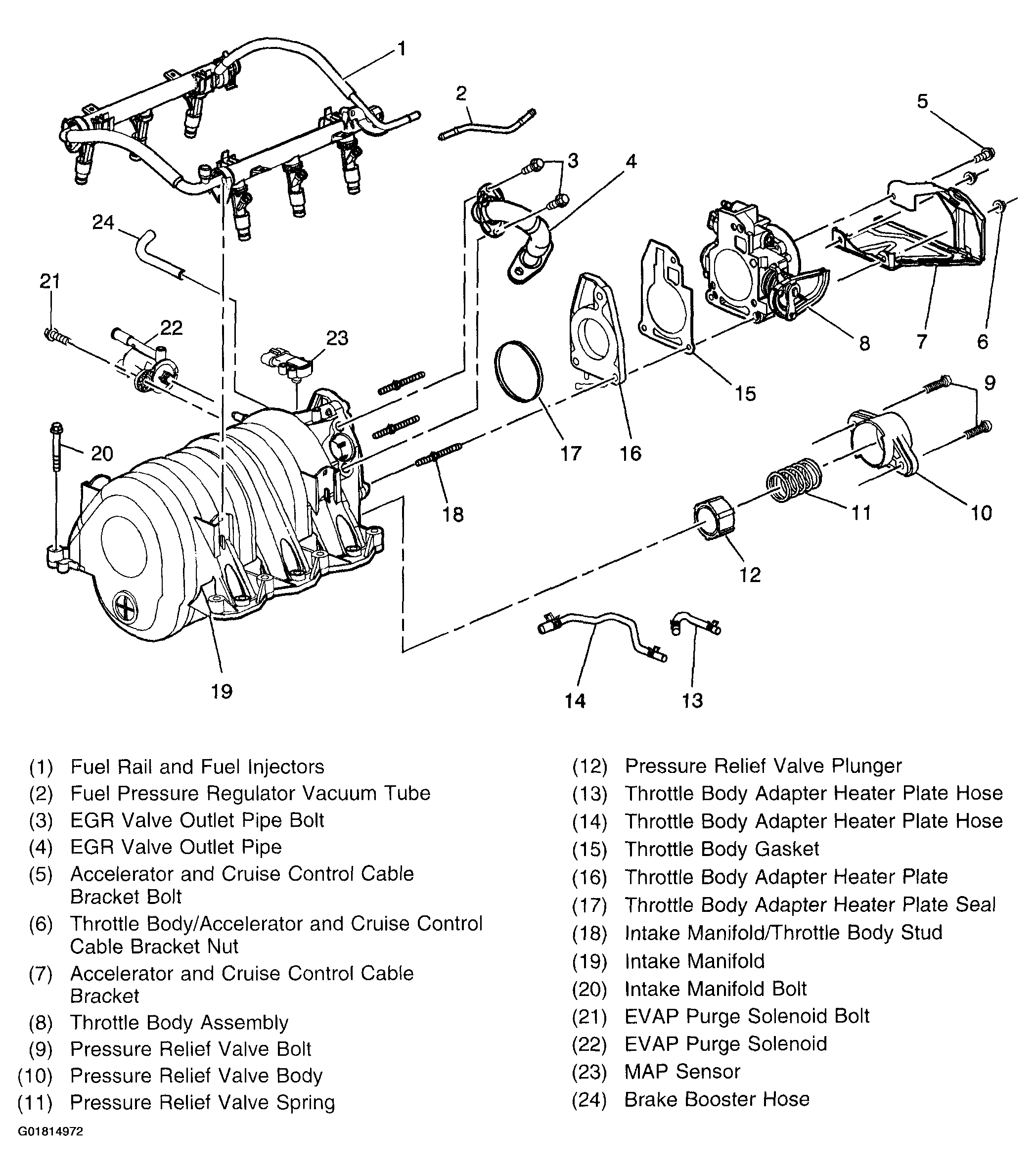

Fig 5: Intake Manifold and Fuel Components

Courtesy of GENERAL MOTORS CORP.

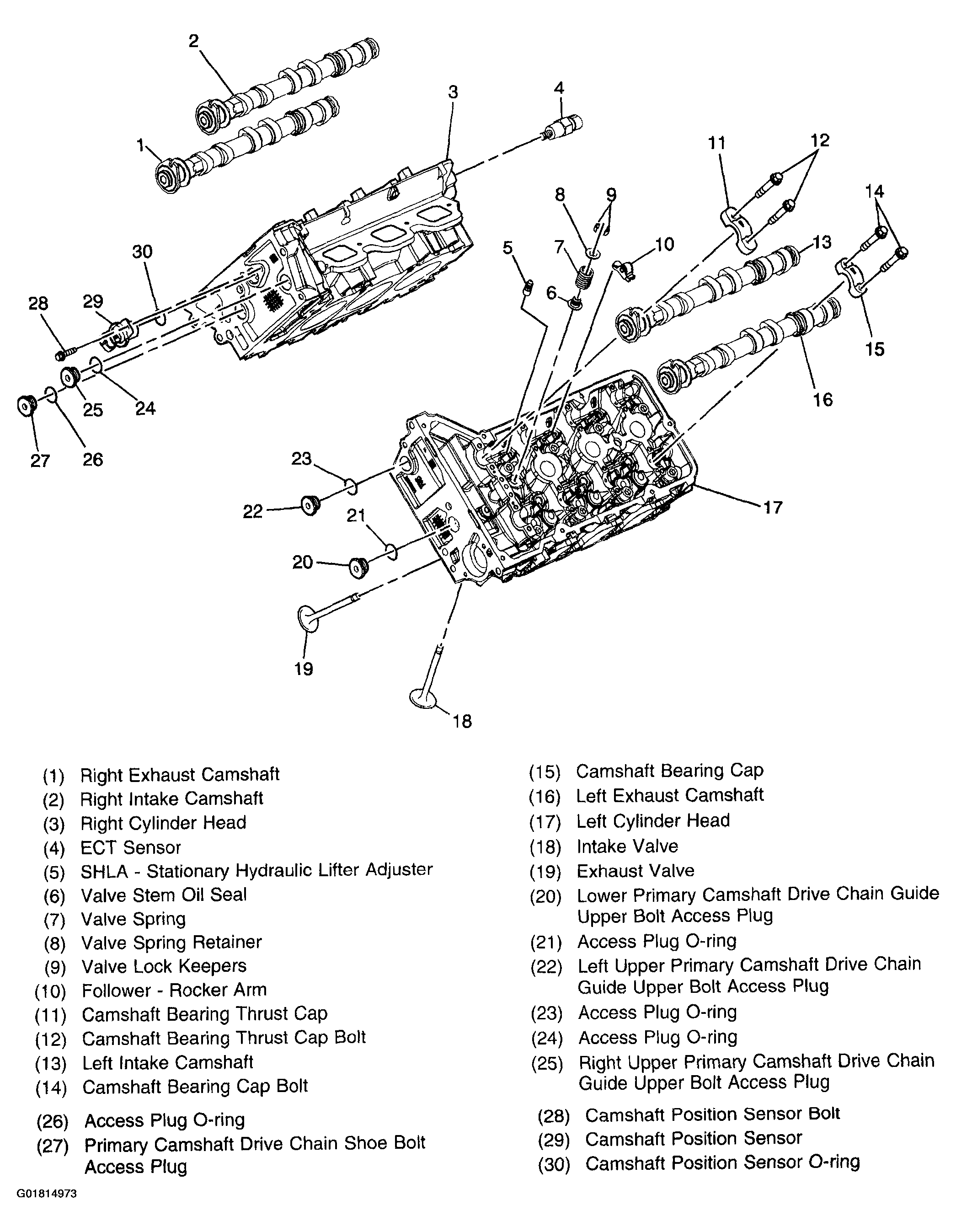

Fig 6: Cylinder Head Assemblies

Courtesy of GENERAL MOTORS CORP.

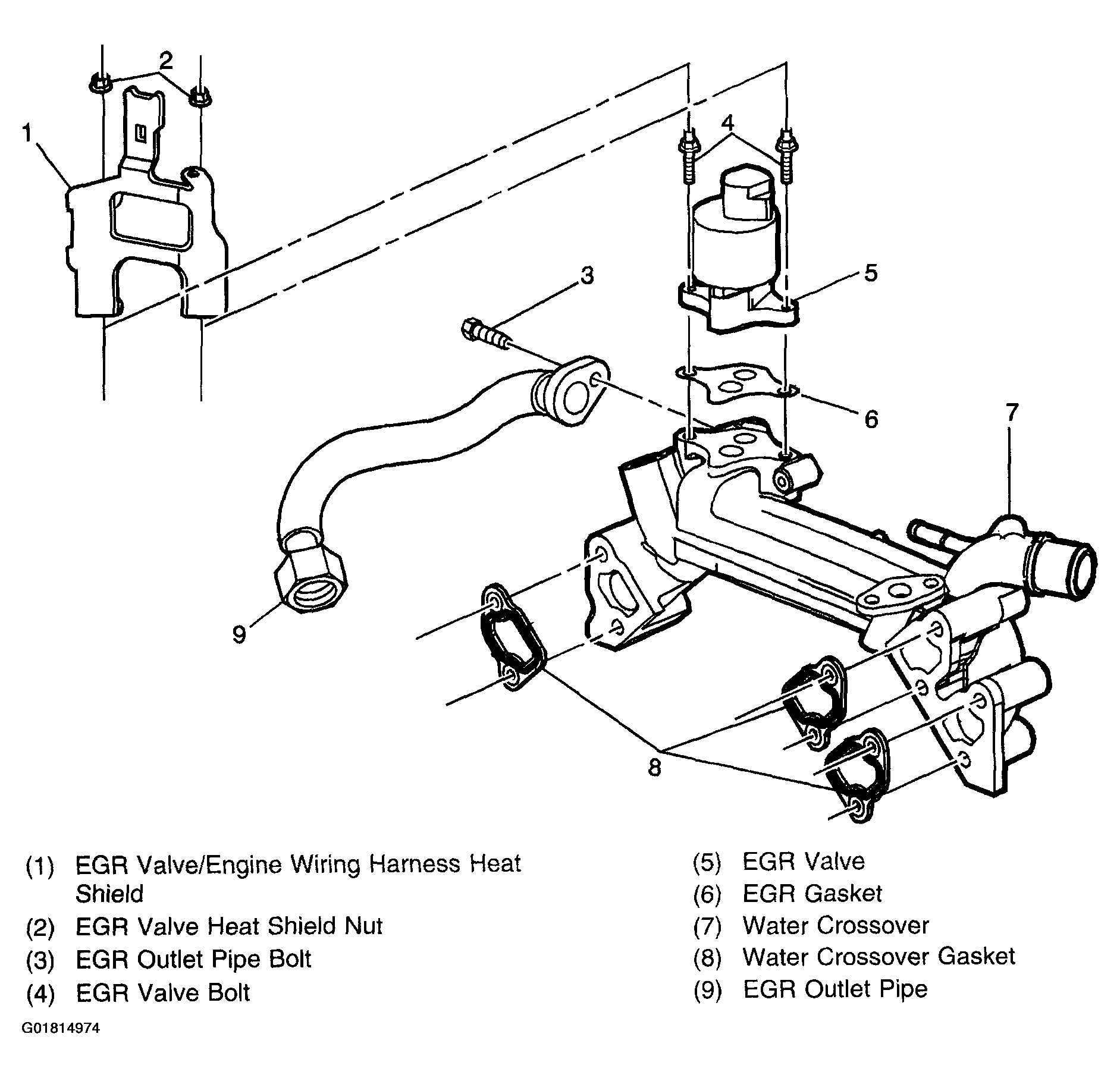

Fig 7: Water Crossover

Courtesy of GENERAL MOTORS CORP.

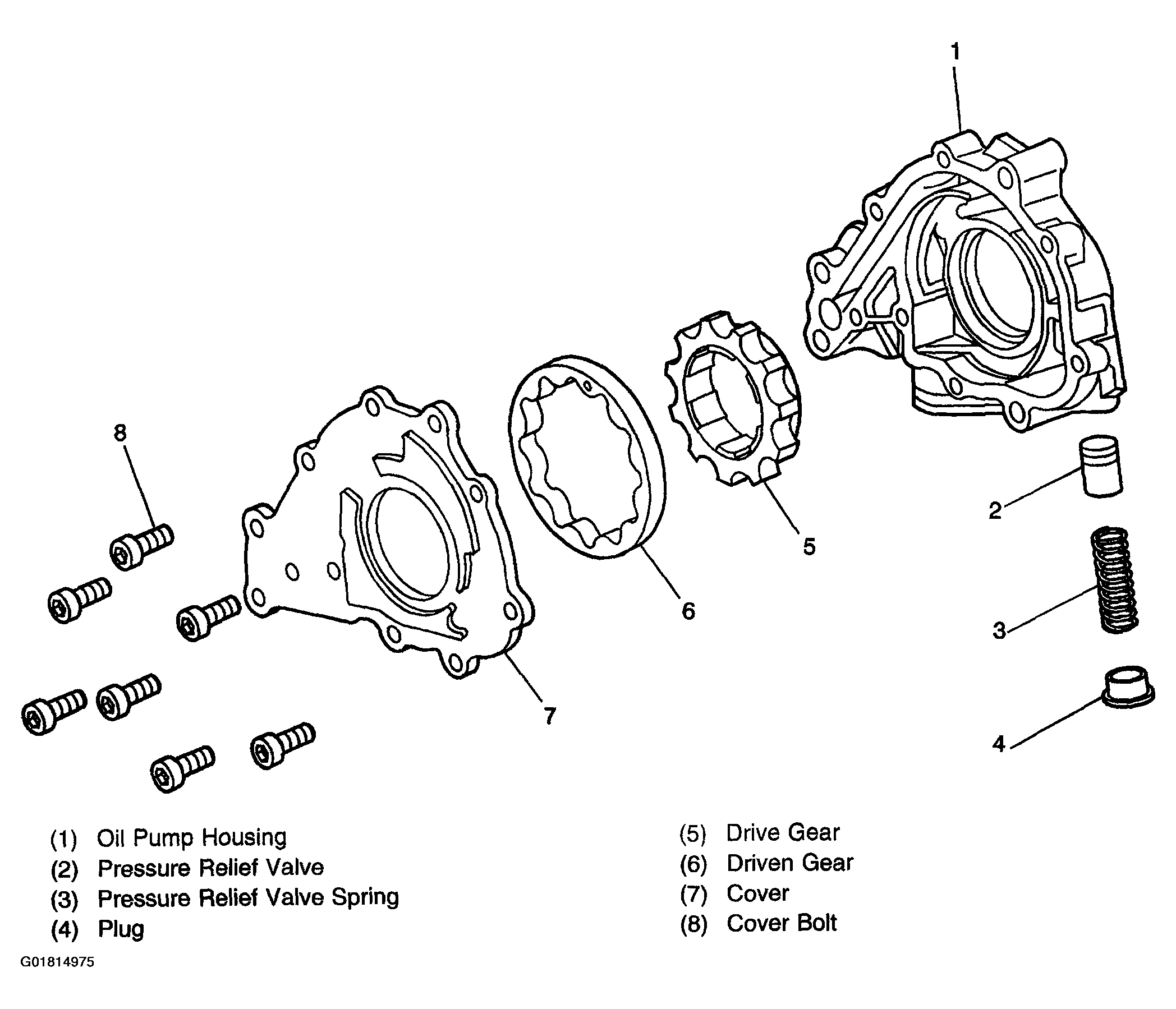

Fig 8: Oil Pump Assembly

Courtesy of GENERAL MOTORS CORP.

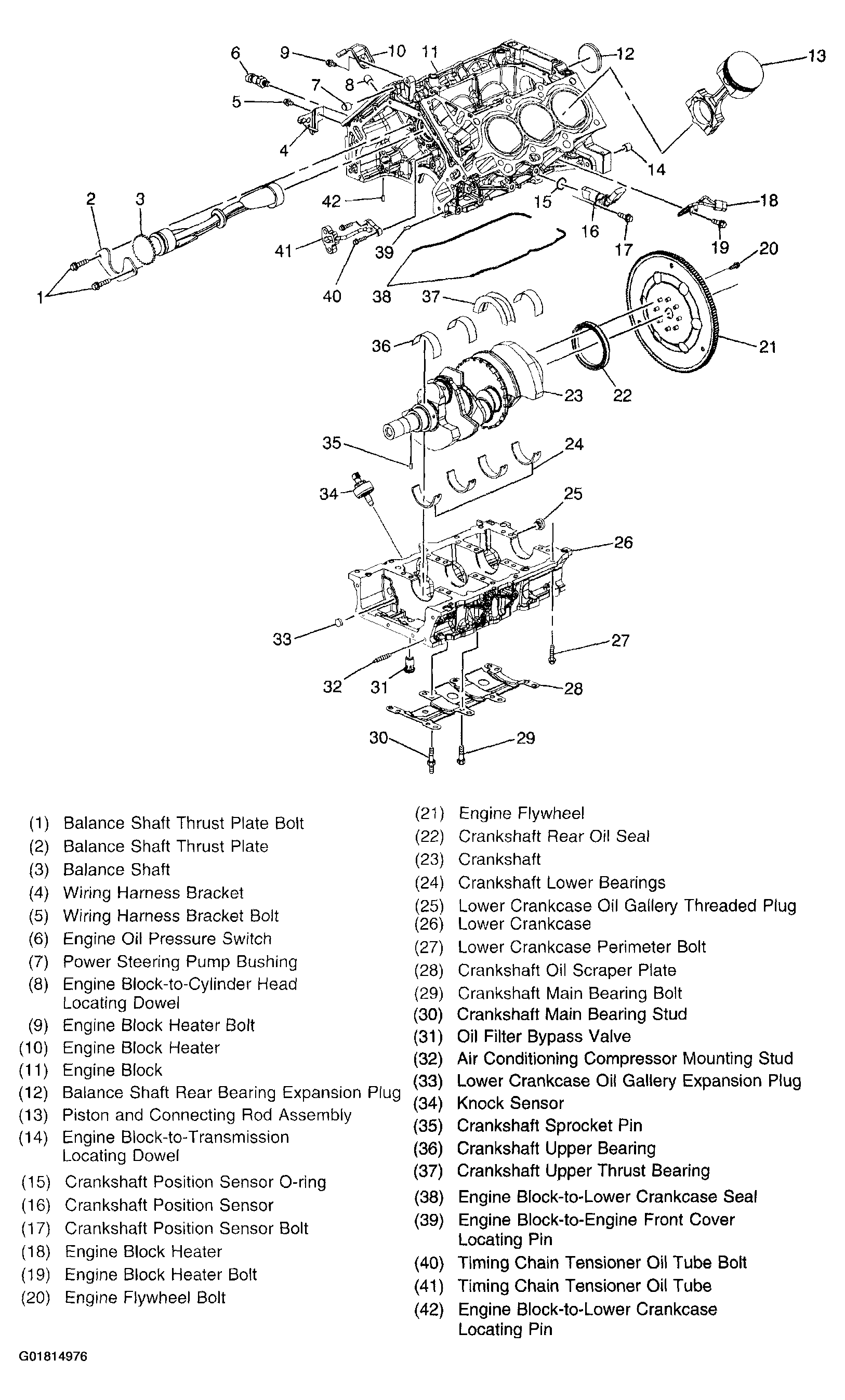

Fig 9: Engine Block Assembly

Courtesy of GENERAL MOTORS CORP.

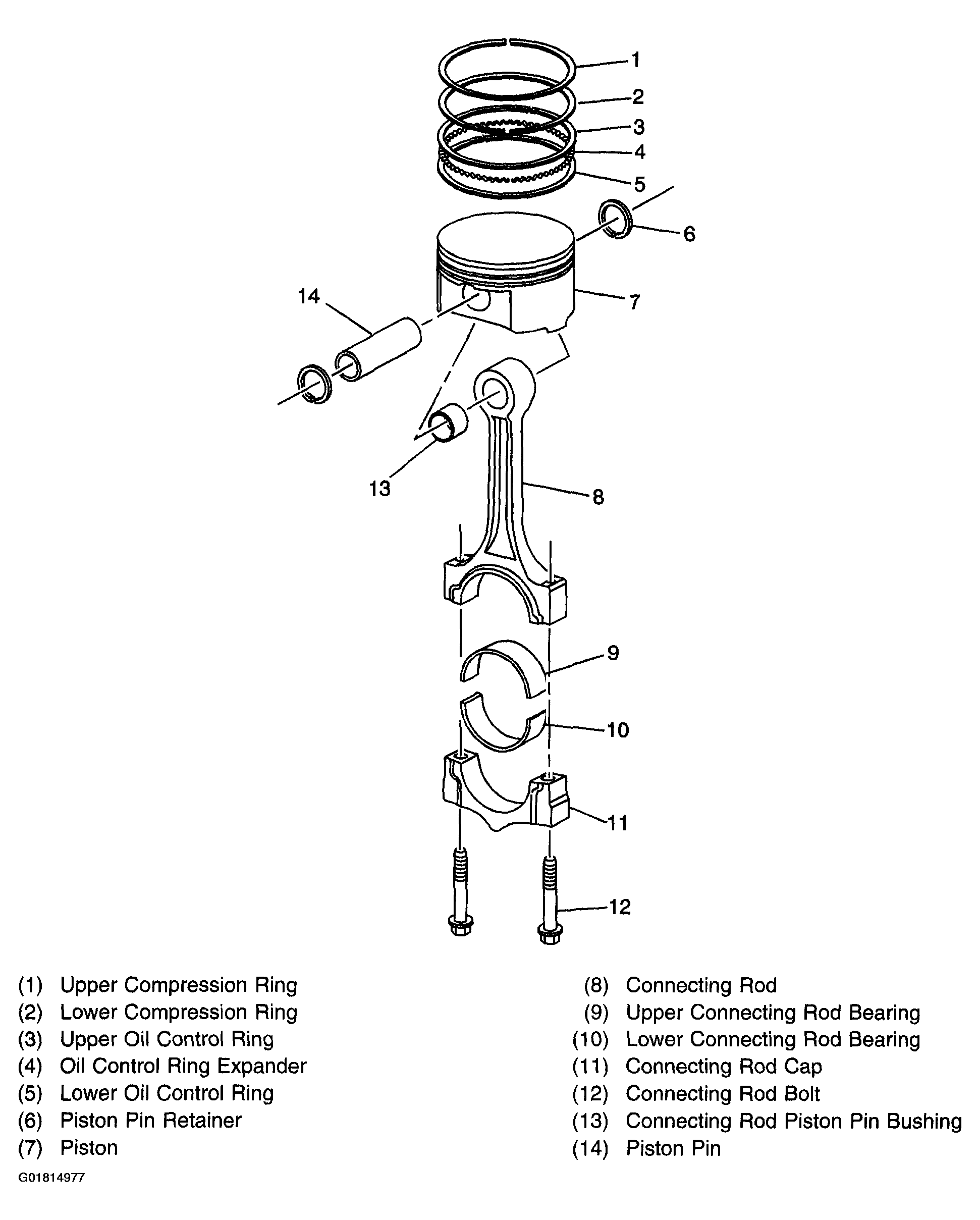

Fig 10: Piston, Rings, Bearing and Connecting Rod

Courtesy of GENERAL MOTORS CORP.
