Removal Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove trim panel replacement-I/P accessory right- from the I/P substraight (1). Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory Right in Instrument Panel, Gauges and Console.
  2. Disable the SIR system (2). Refer to SIR Disabling and Enabling Zones .

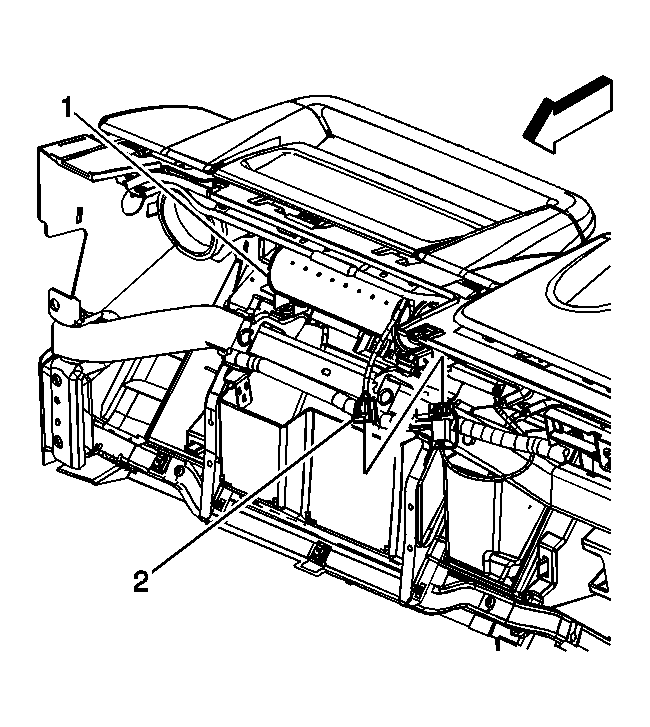

    3. Fig 1: Inflatable Restraint I/P Module
    GM832804Courtesy of GENERAL MOTORS CORP.
  3. Remove the connector from the I/P.
    4. Fig 2: Removing Inflatable Restraint I/P Module Retaining Bolts
    GM815844Courtesy of GENERAL MOTORS CORP.
  4. Remove the inflatable restraint I/P module retaining bolts.
  5. Ensure that you keep a firm hold on the I/P module.
