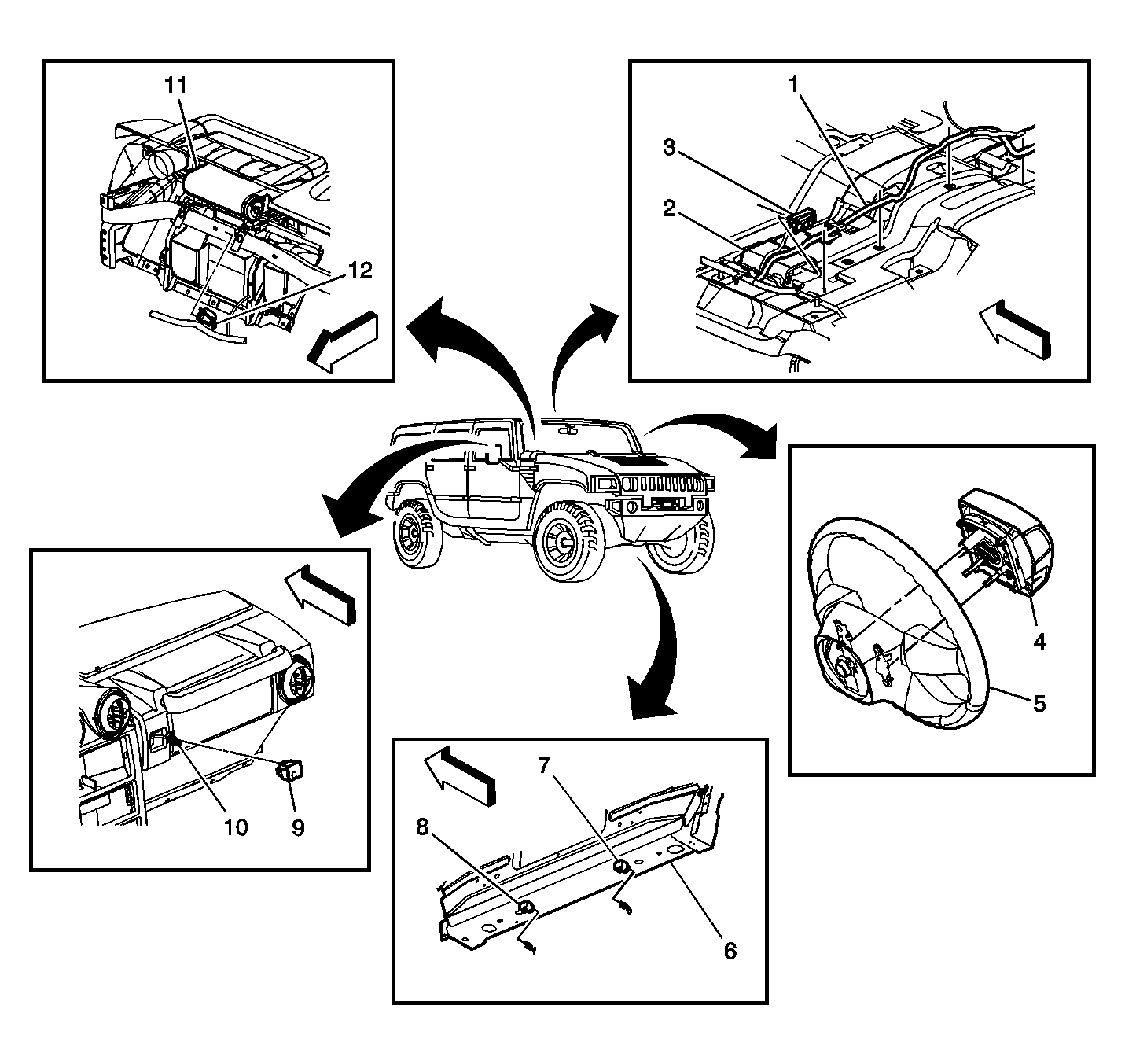

SIR Component Views
WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Body Harness |
| 2 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 3 | Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector |
| 4 | Inflatable Restraint Steering Wheel Module |
| 5 | Steering Wheel |
| 6 | Radiator Support |
| 7 | Inflatable Restraint Front End Discriminating Sensor - Left |
| 8 | Inflatable Restraint Front End Discriminating Sensor - Right |
| 9 | Inflatable Restraint I/P Module Disable Switch |
| 10 | Inflatable Restraint I/P Module Disable Switch Connector |
| 11 | Inflatable Restraint I/P Module |
| 12 | Inflatable Restraint I/P Module Connector |
