Ignition Module Installation - Left

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

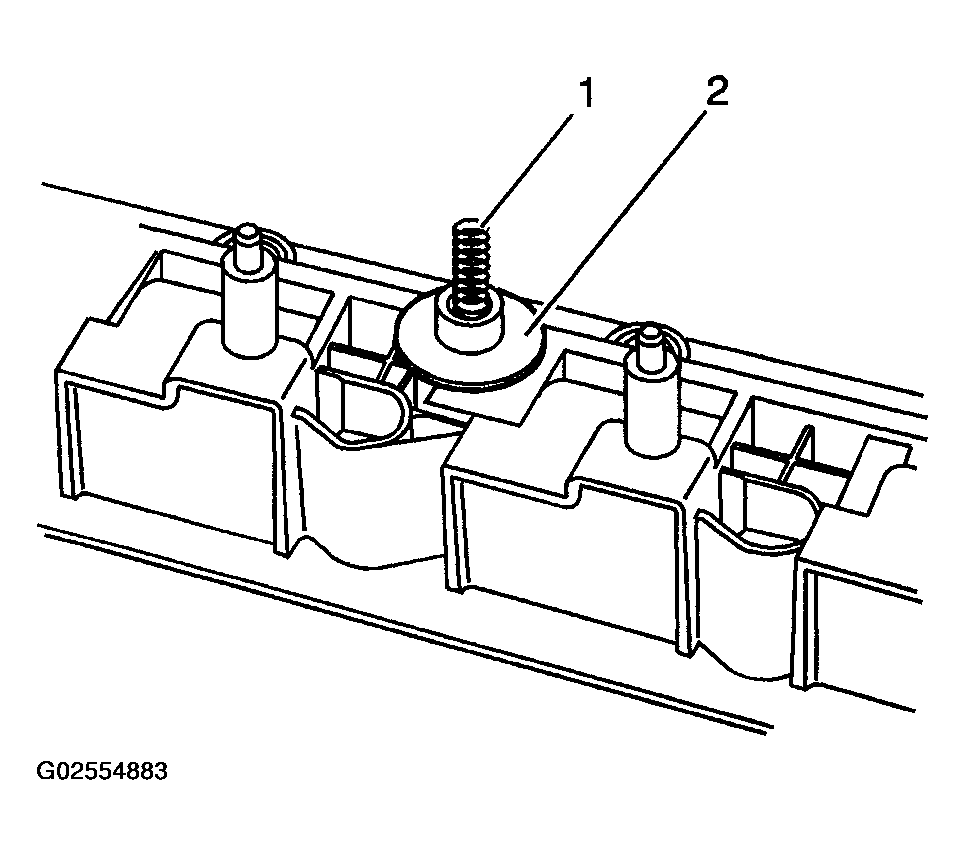

Ensure the RFI/ground spring (1) and the seal (2) are in place and inspect each for serviceability.

Fig 1: Inspecting RFI/Ground Spring And Seal
Courtesy of GENERAL MOTORS CORP.

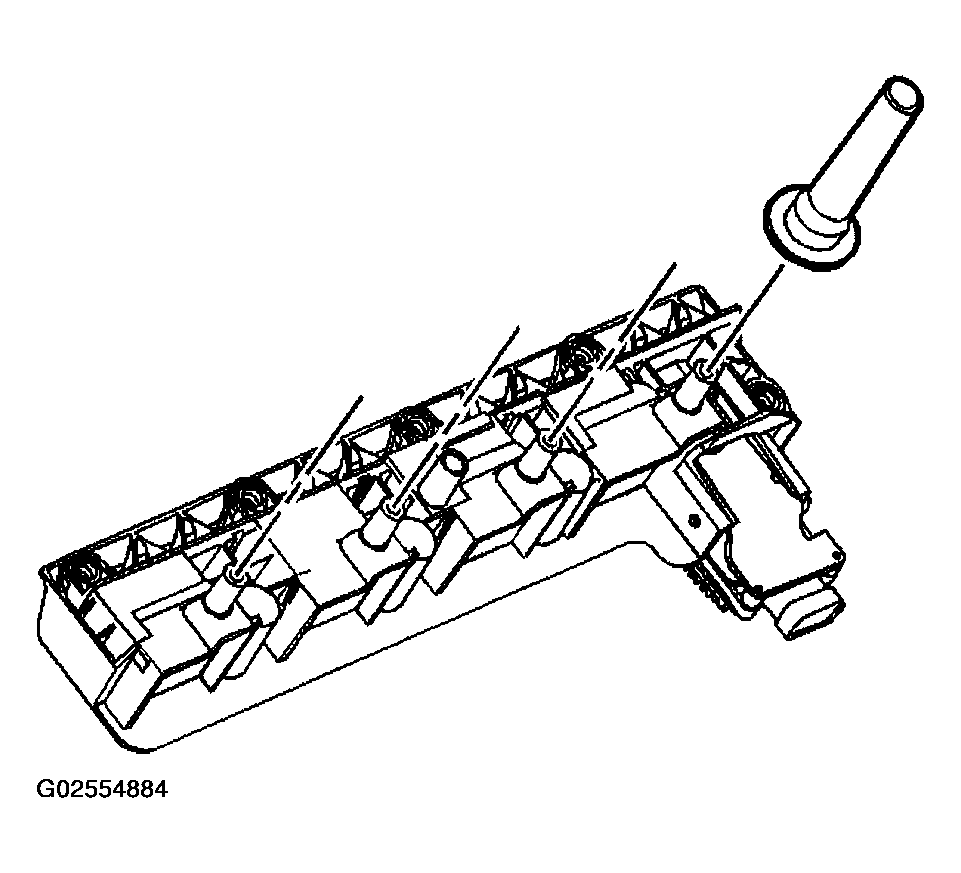

Install the left spark plug boots onto the ignition coil assembly.

Fig 2: Installing Left Spark Plug Boots Onto Ignition Coil Assembly
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .

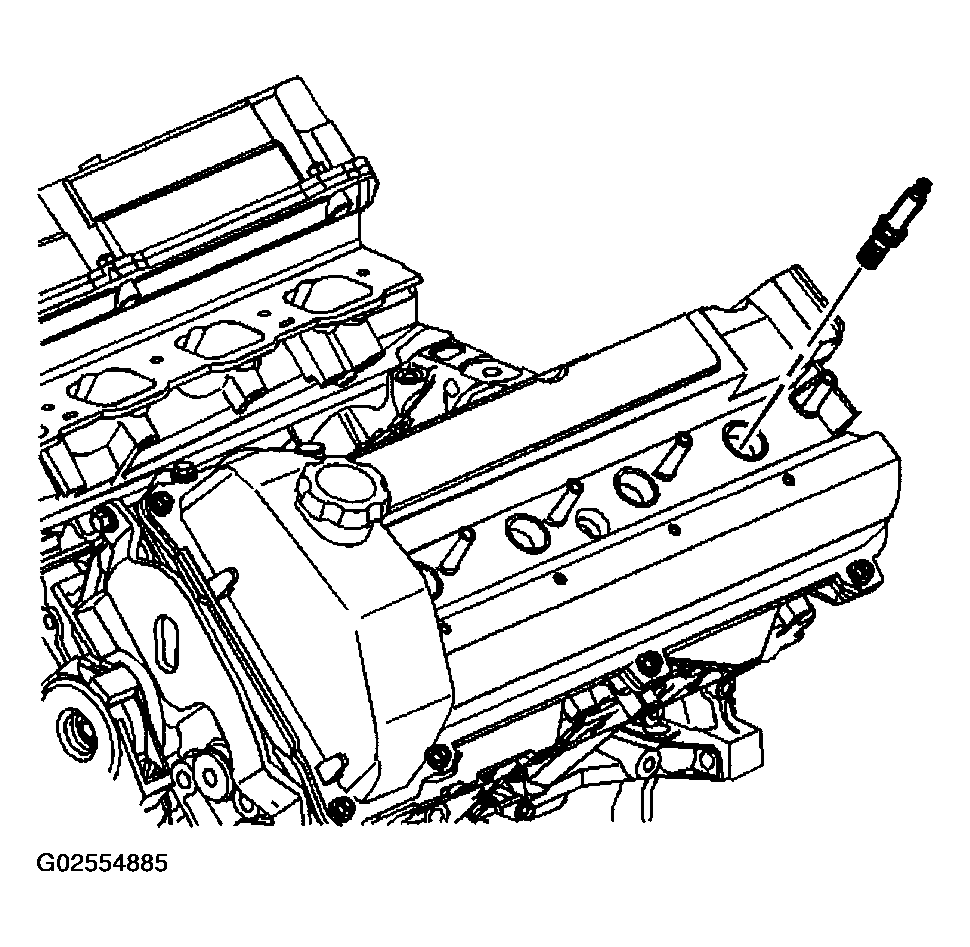

Install the left spark plugs.
Tighten

Tighten the spark plugs to 15 N.m (11 lb ft).

Fig 3: Installing Left Spark Plugs
Courtesy of GENERAL MOTORS CORP.

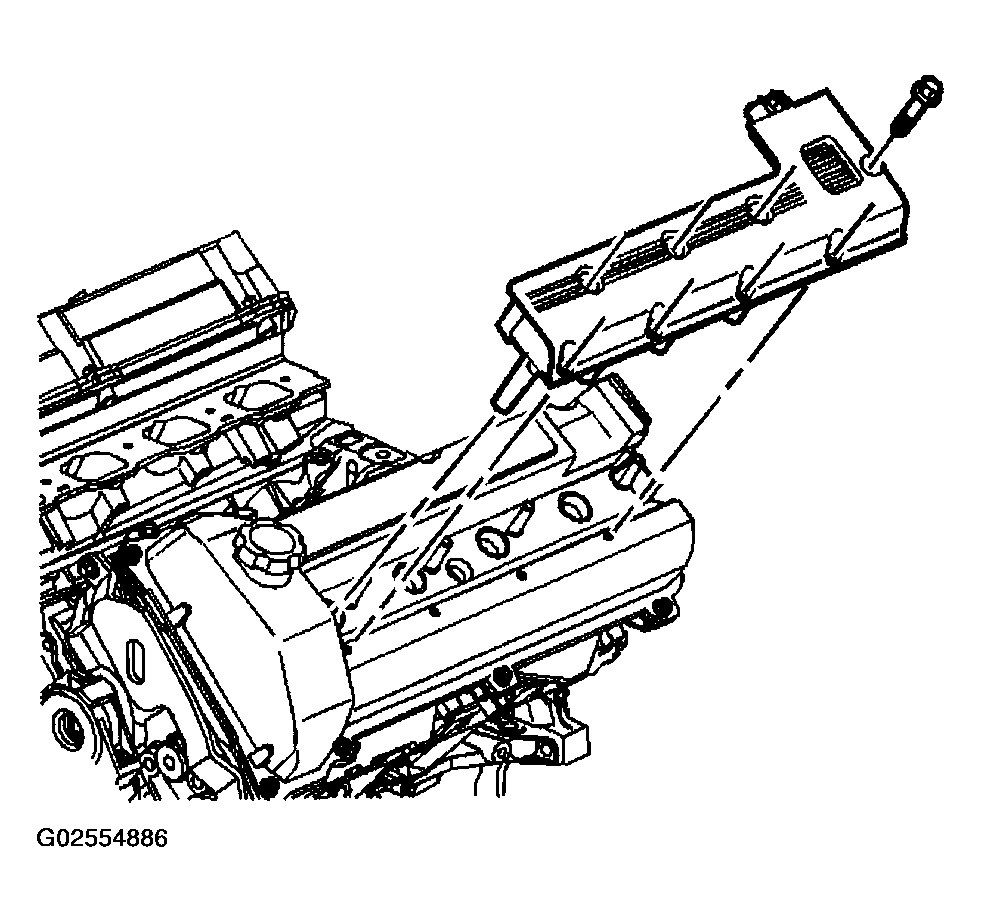

Position the ignition coil assembly on the left camshaft cover.

Fig 4: Installing Ignition Coil Assembly
Courtesy of GENERAL MOTORS CORP.

Important: DO NOT damage the ignition coil perimeter seal.
Install the ignition coil assembly bolts in sequence.
Tighten

Tighten the ignition coil assembly bolts to 9 N.m (80 lb in).

Fig 5: Identifying Ignition Coil Assembly Bolts Tightening Sequence
Courtesy of GENERAL MOTORS CORP.
