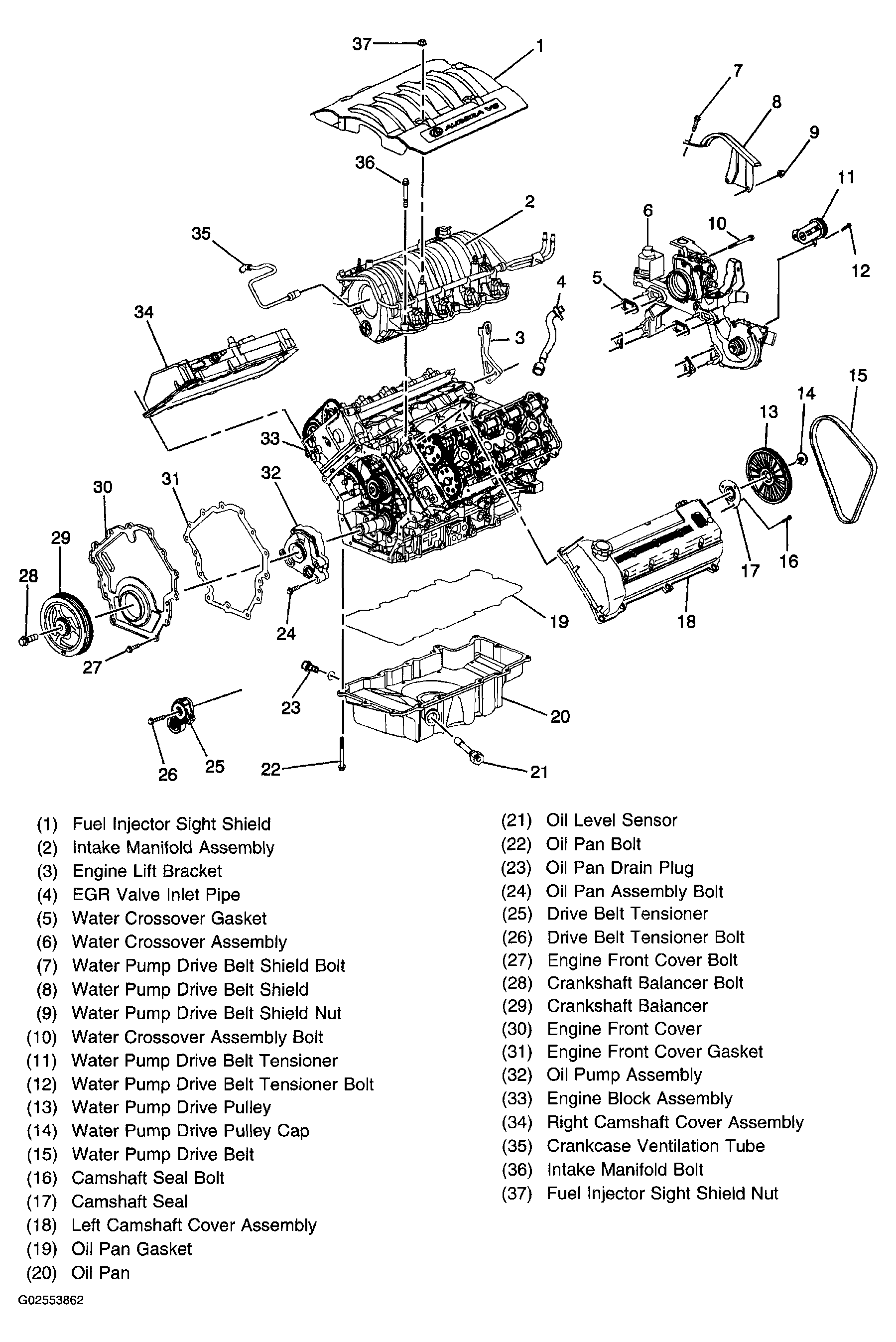

Fig 1: Disassembled View Of Engine Covers And Component Assemblies (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

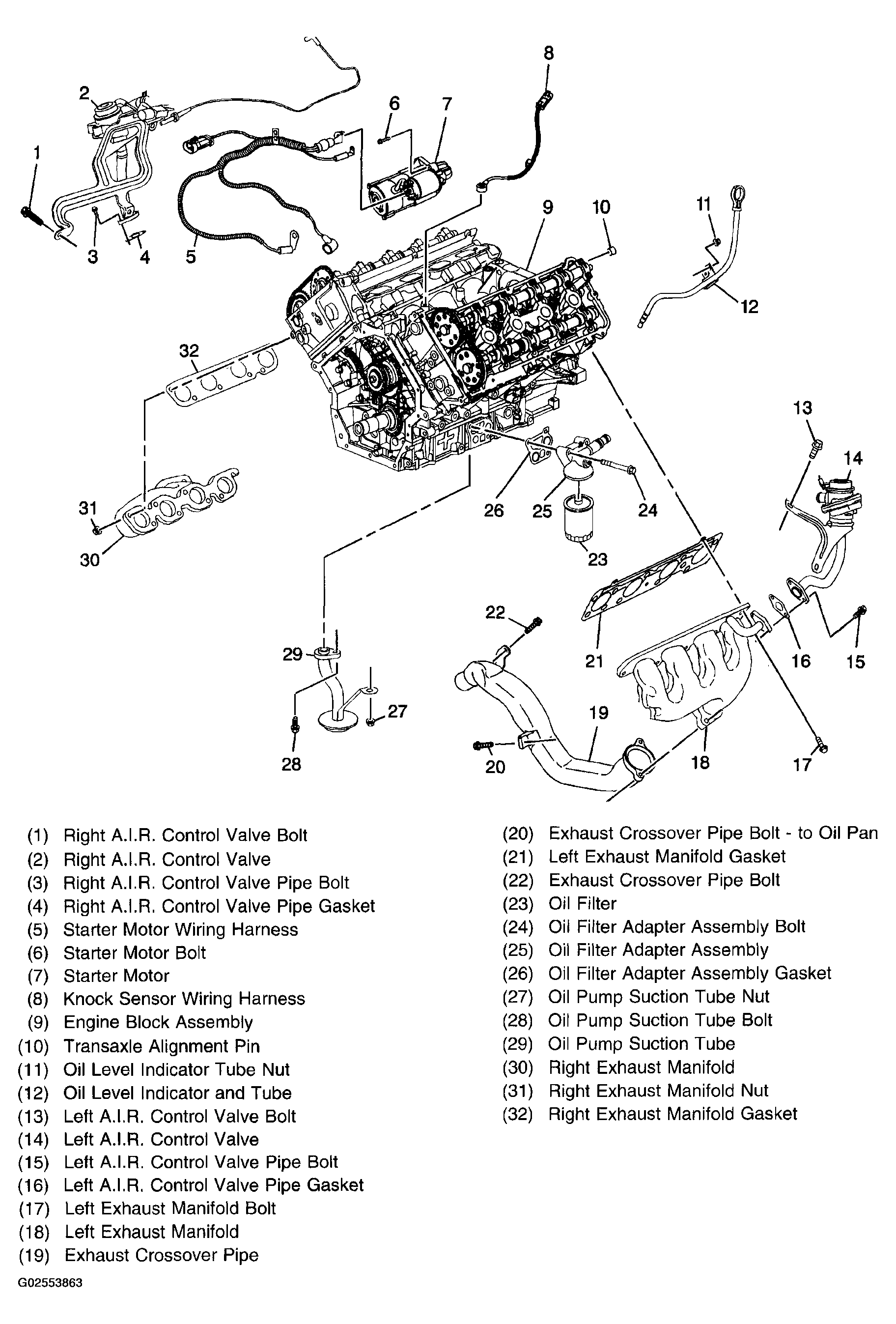

Fig 2: Disassembled View Of Engine Covers And Component Assemblies (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

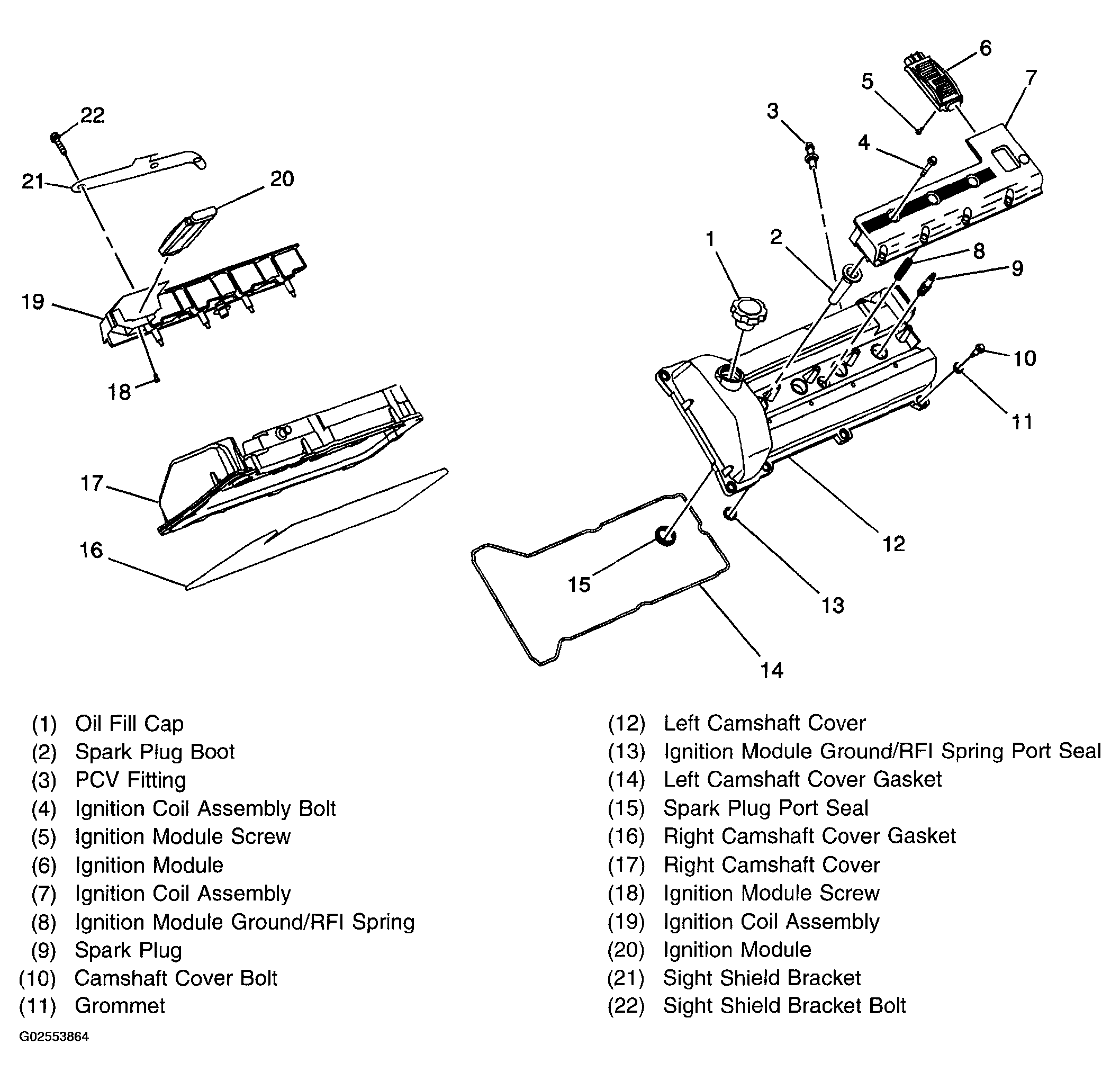

Fig 3: Disassembled View Of Camshaft Cover Assembly
Courtesy of GENERAL MOTORS CORP.

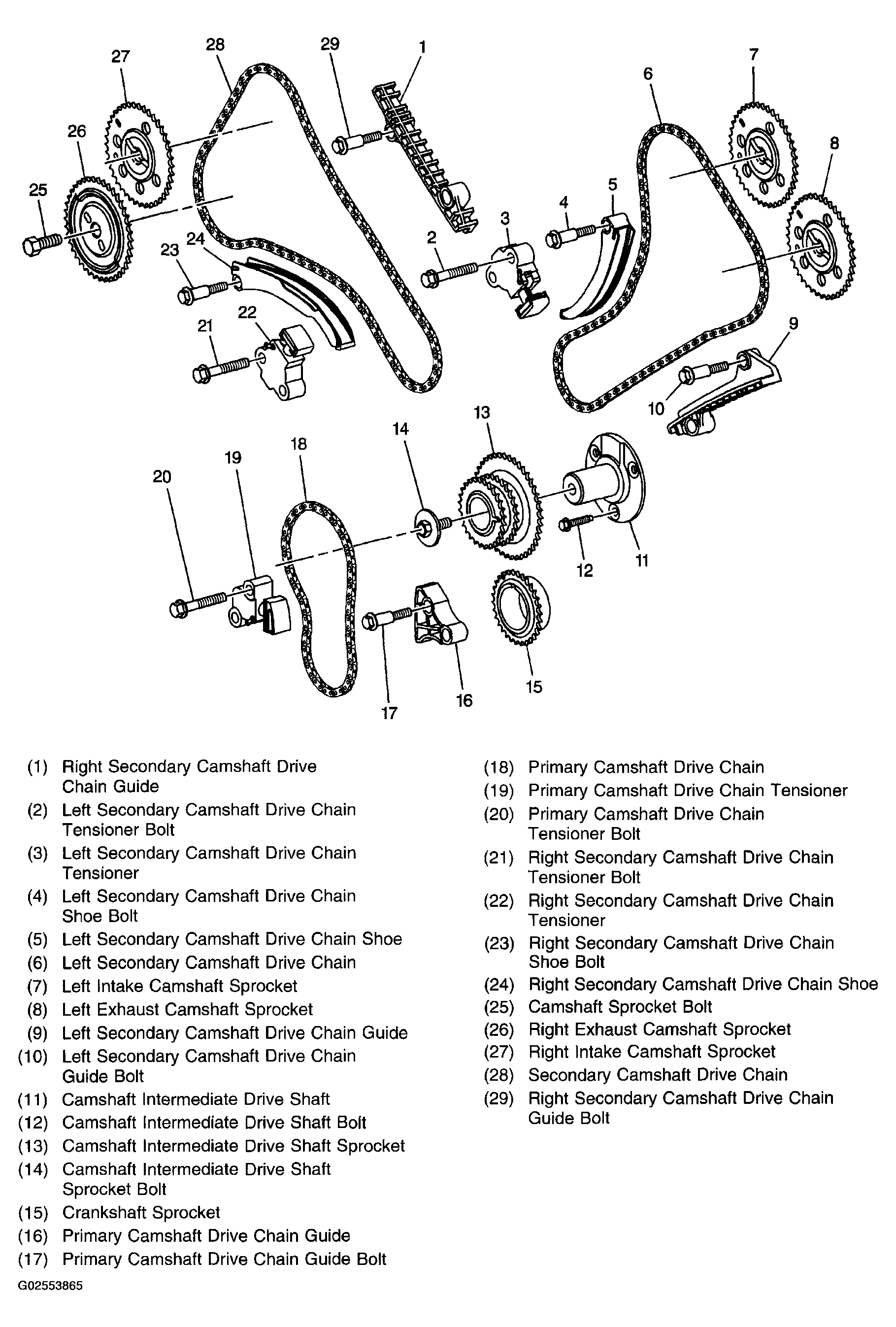

Fig 4: Disassembled View Of Camshaft Timing Components
Courtesy of GENERAL MOTORS CORP.

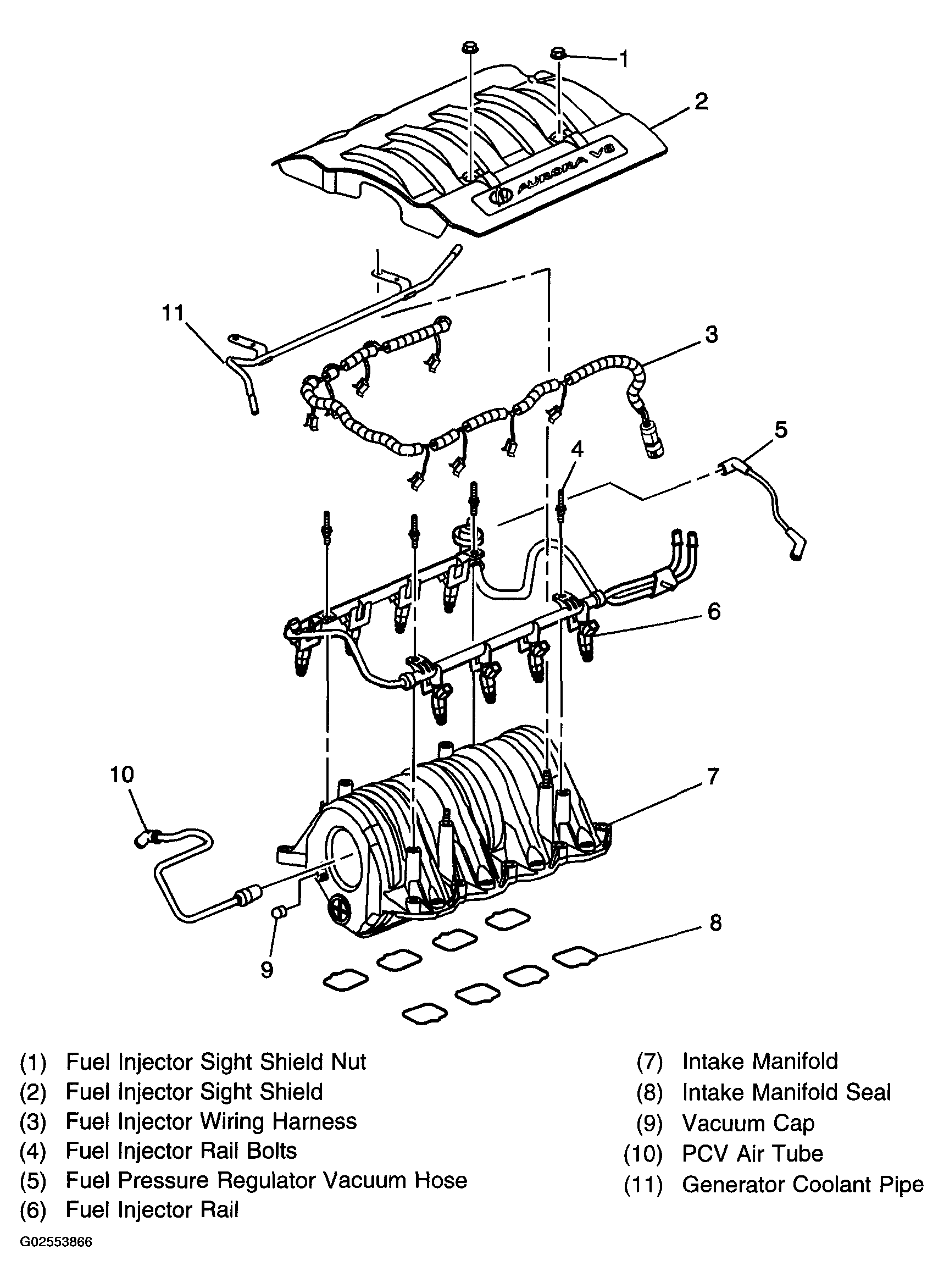

Fig 5: Disassembled View Of Intake Manifold
Courtesy of GENERAL MOTORS CORP.

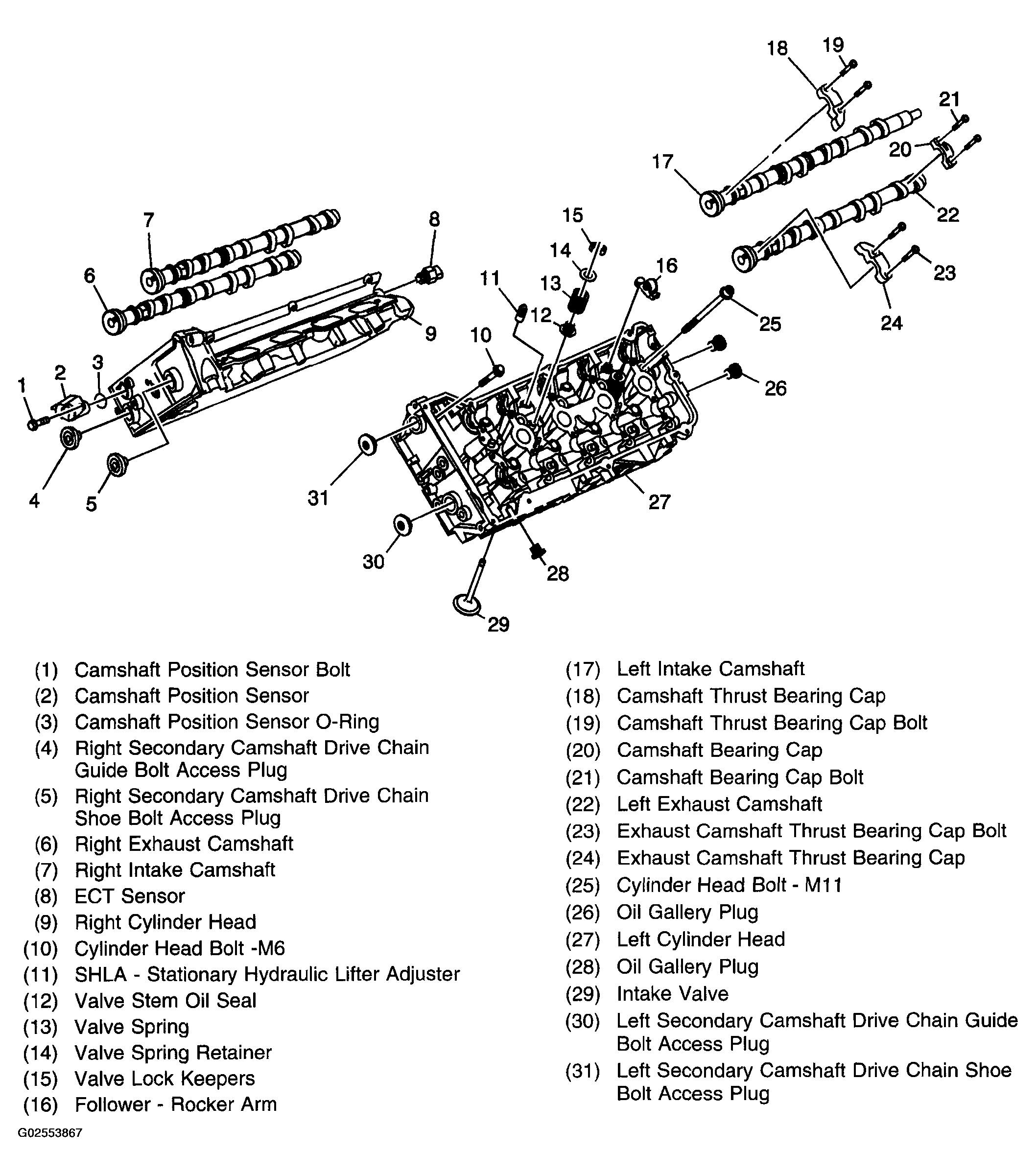

Fig 6: Disassembled View Of Cylinder Head Assemblies
Courtesy of GENERAL MOTORS CORP.

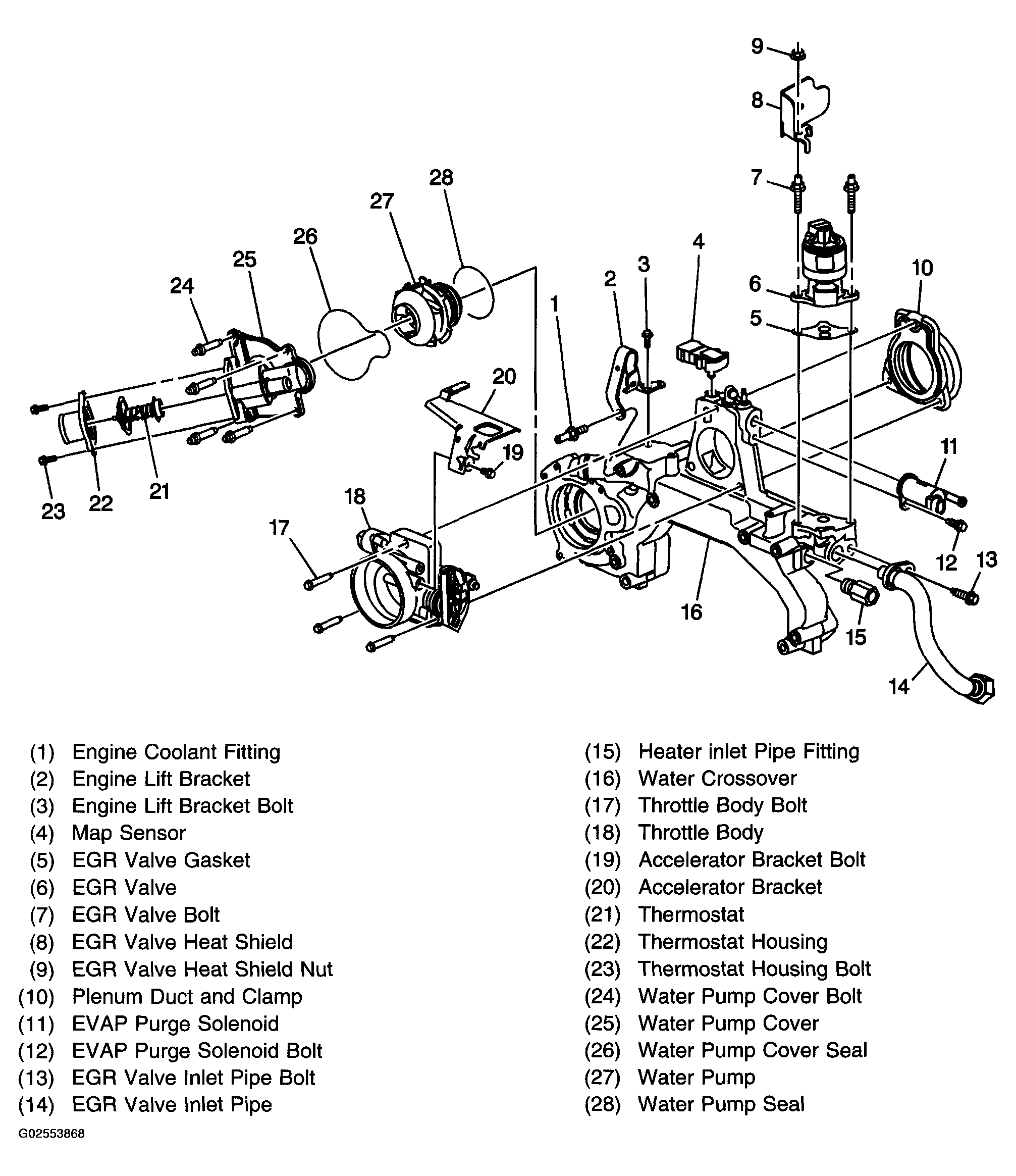

Fig 7: Disassembled View Of Water Crossover And Throttle Body Assembly
Courtesy of GENERAL MOTORS CORP.

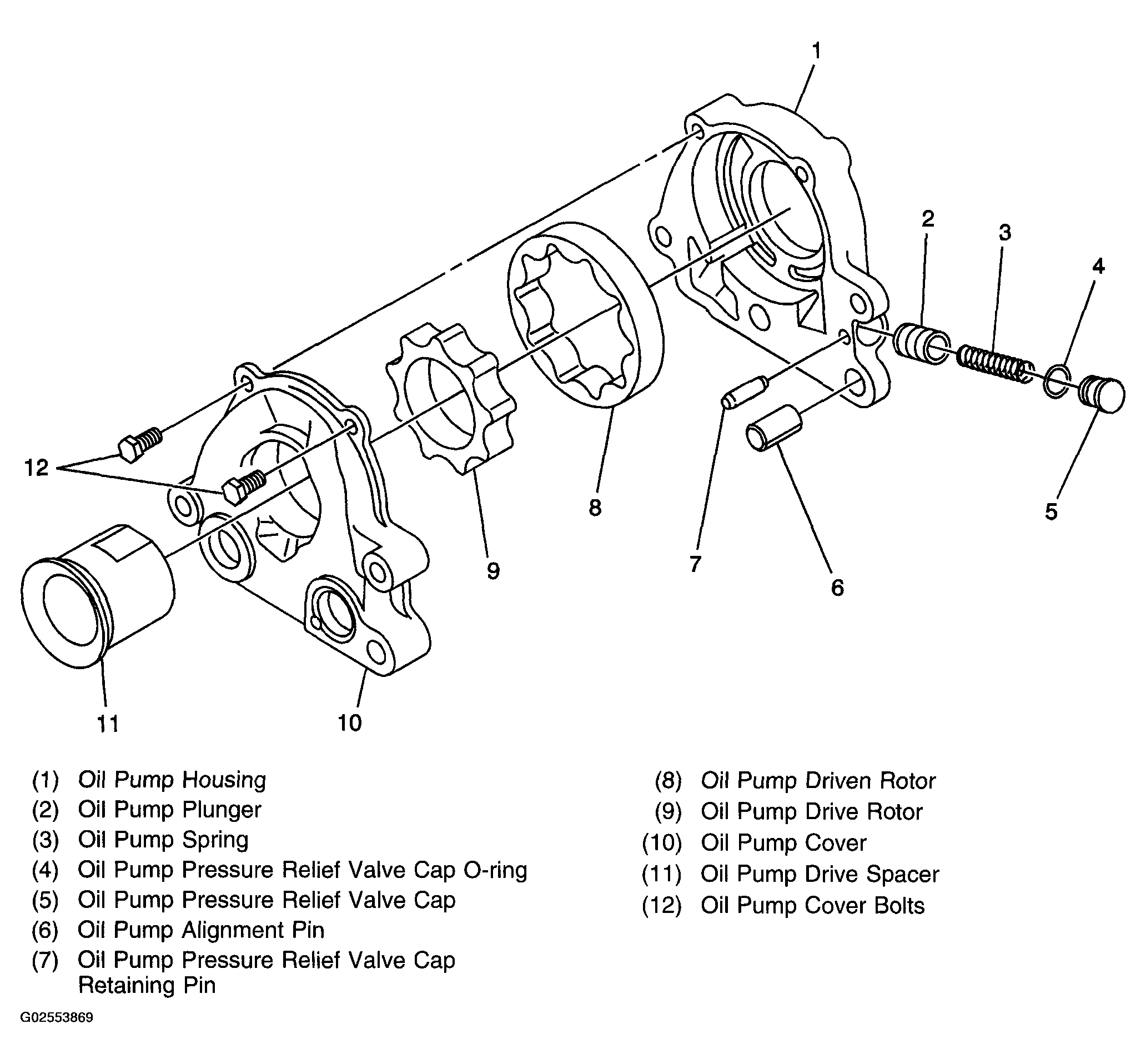

Fig 8: Disassembled View Of Oil Pump
Courtesy of GENERAL MOTORS CORP.

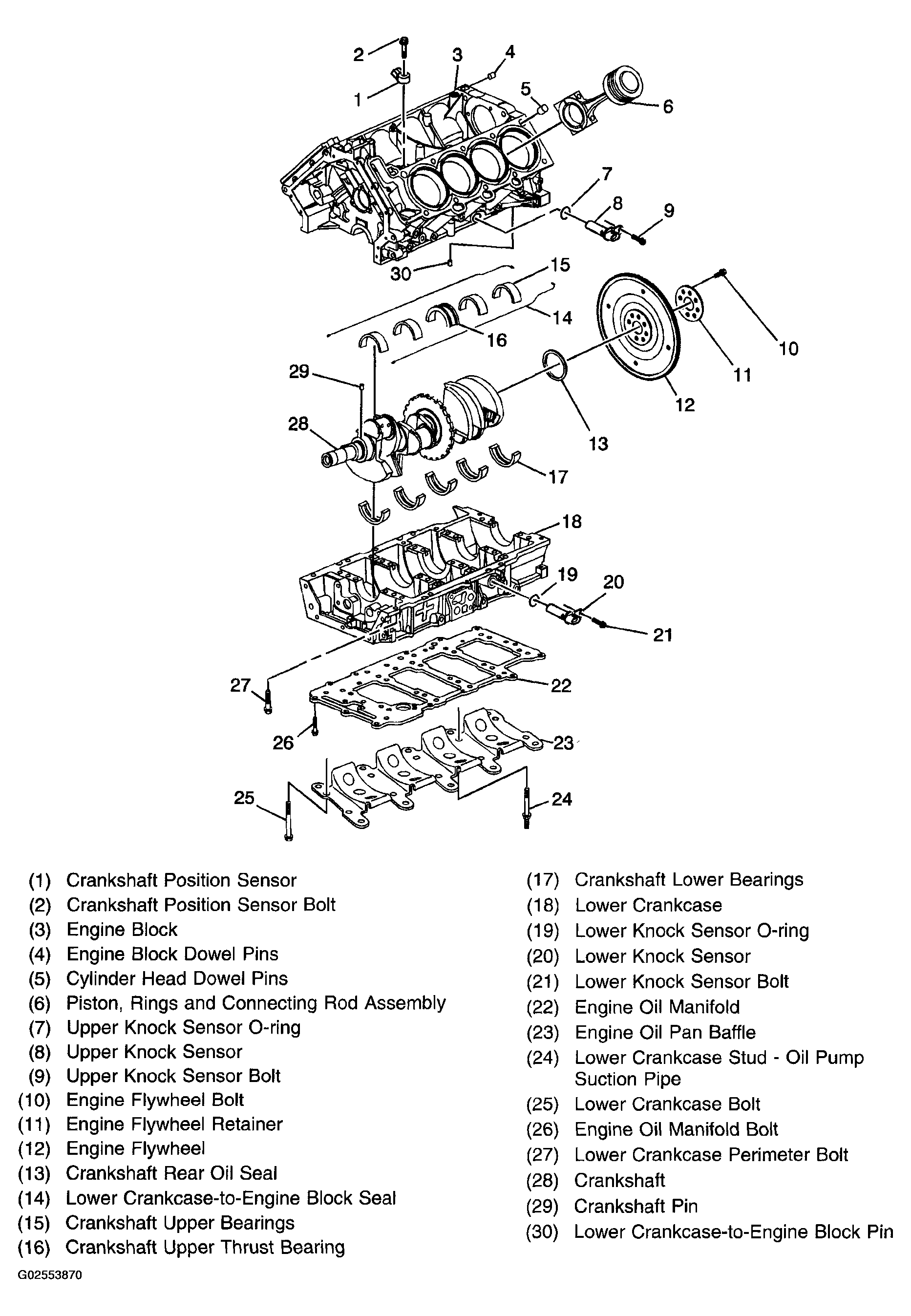

Fig 9: Disassembled View Of Engine Block Assembly
Courtesy of GENERAL MOTORS CORP.

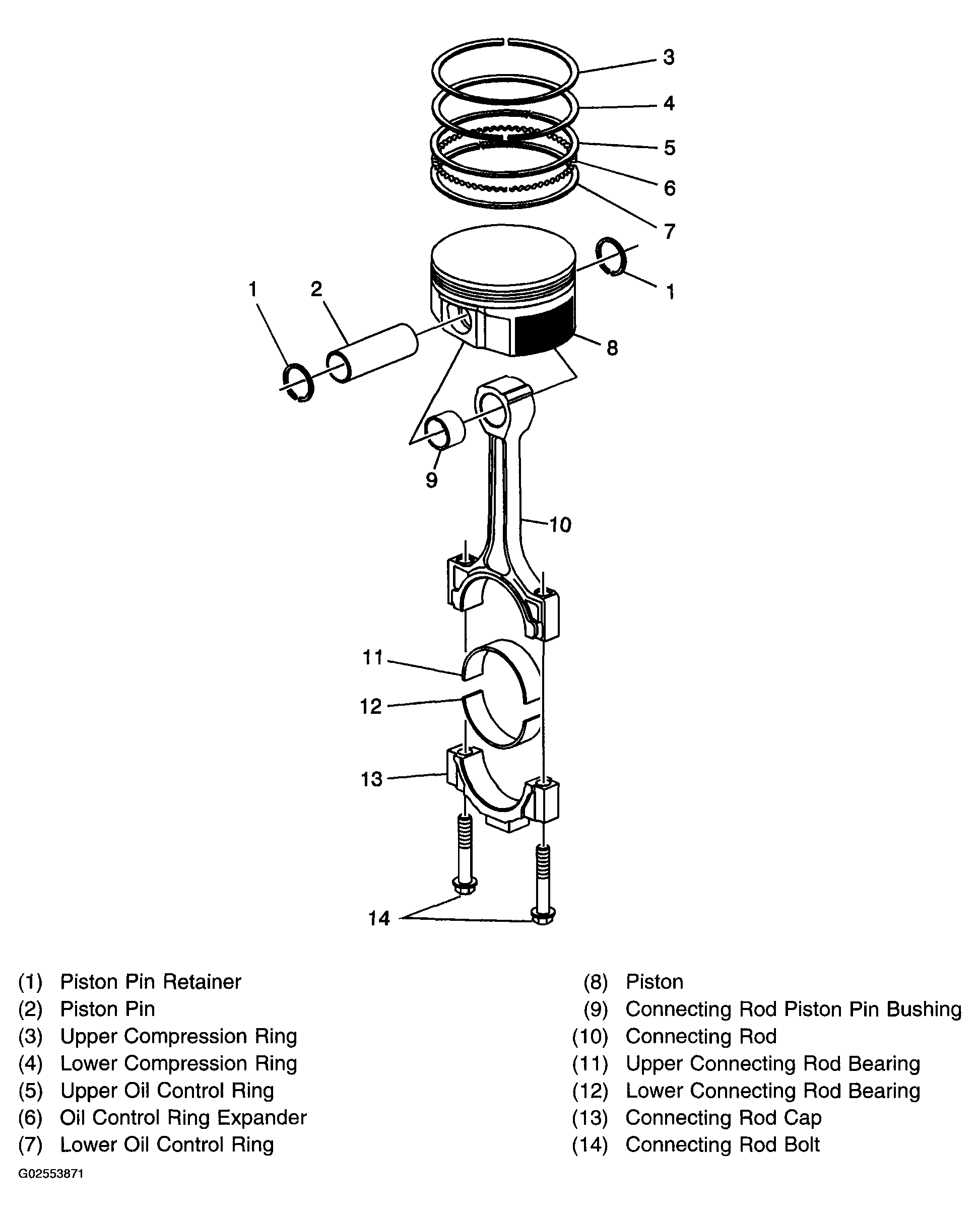

Fig 10: Disassembled View Of Piston, Rings, Bearing And Connecting Rod Assembly
