Stabilizer Bracket Removal Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Secure the stabilizer bracket flange using a vise.

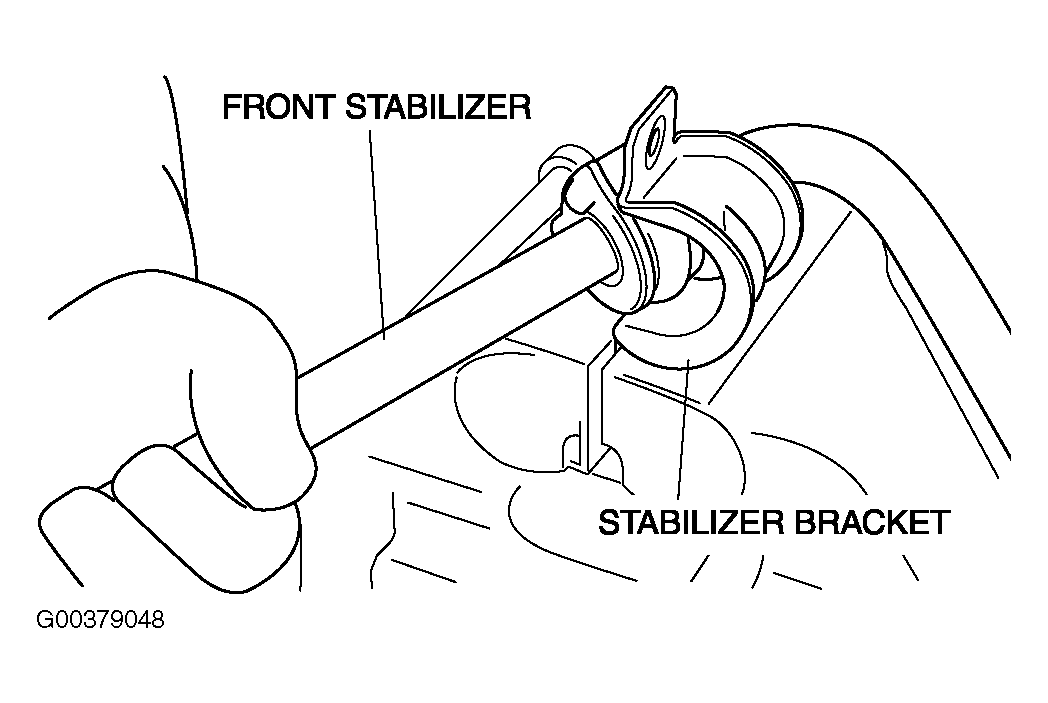

    Fig 1: Removing Stabilizer Bracket
    G00379048Courtesy of MAZDA MOTORS CORP.
  2. Remove the front stabilizer.
