Front Lower Arm: Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the illustration.

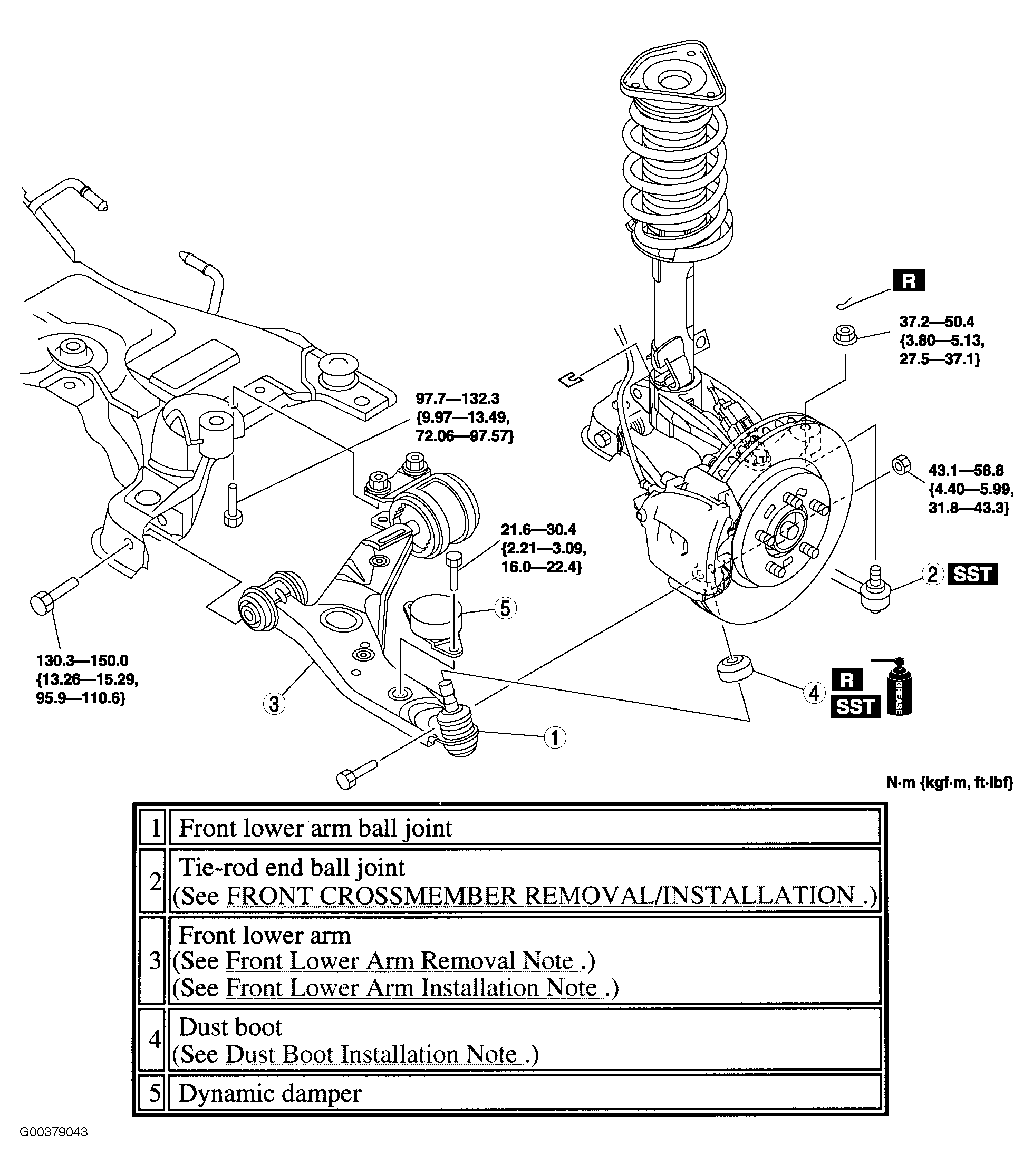

    Fig 1: Front Lower Arm With Torque Specifications
    G00379043Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
  3. Inspect the wheel alignment and adjust it if necessary. See WHEEL ALIGNMENT .
