Home >> Hummer >> 2003 >> H2 V8-6.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Relay Block - I/P

Relay Block - I/P

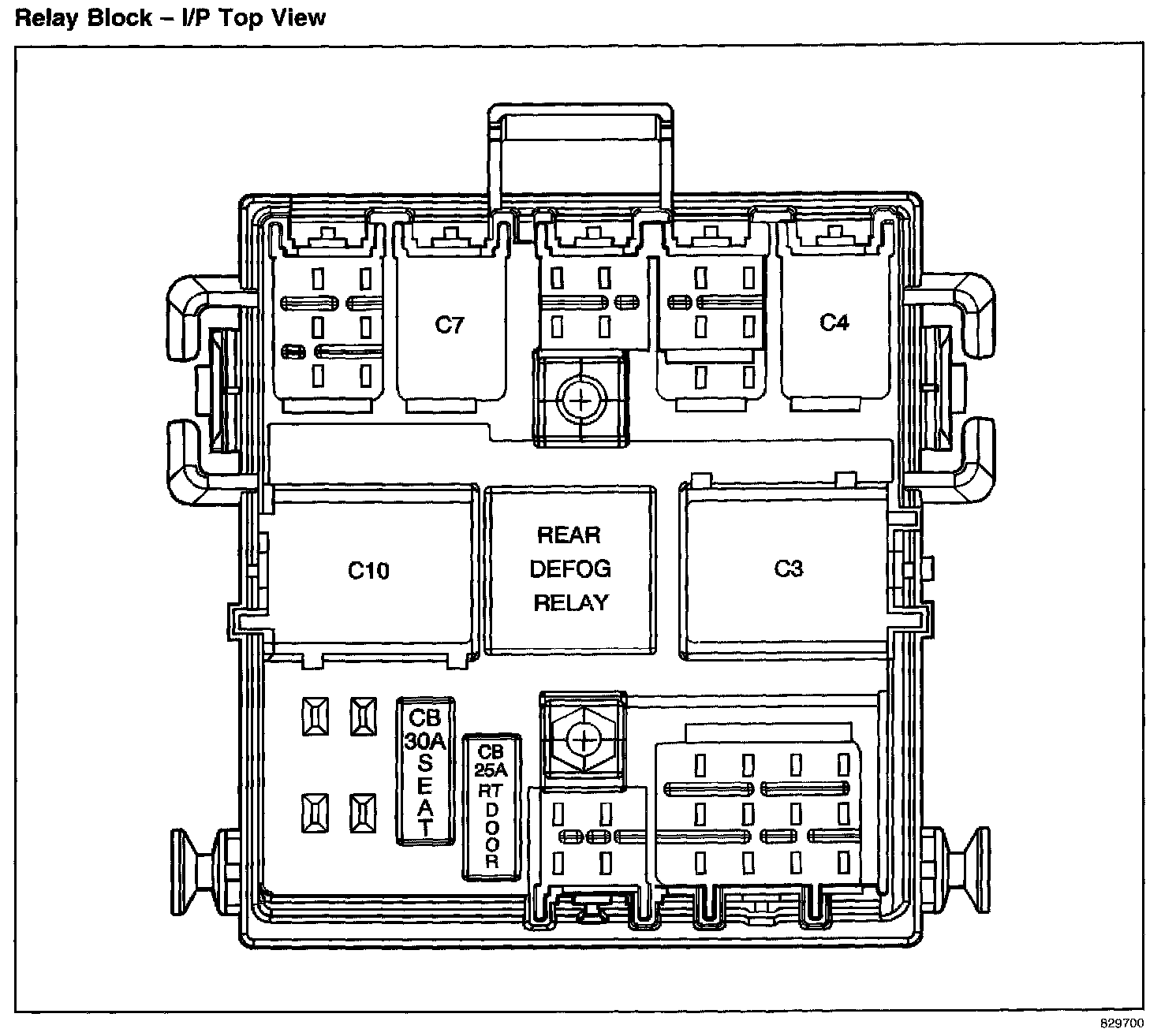

Location View:

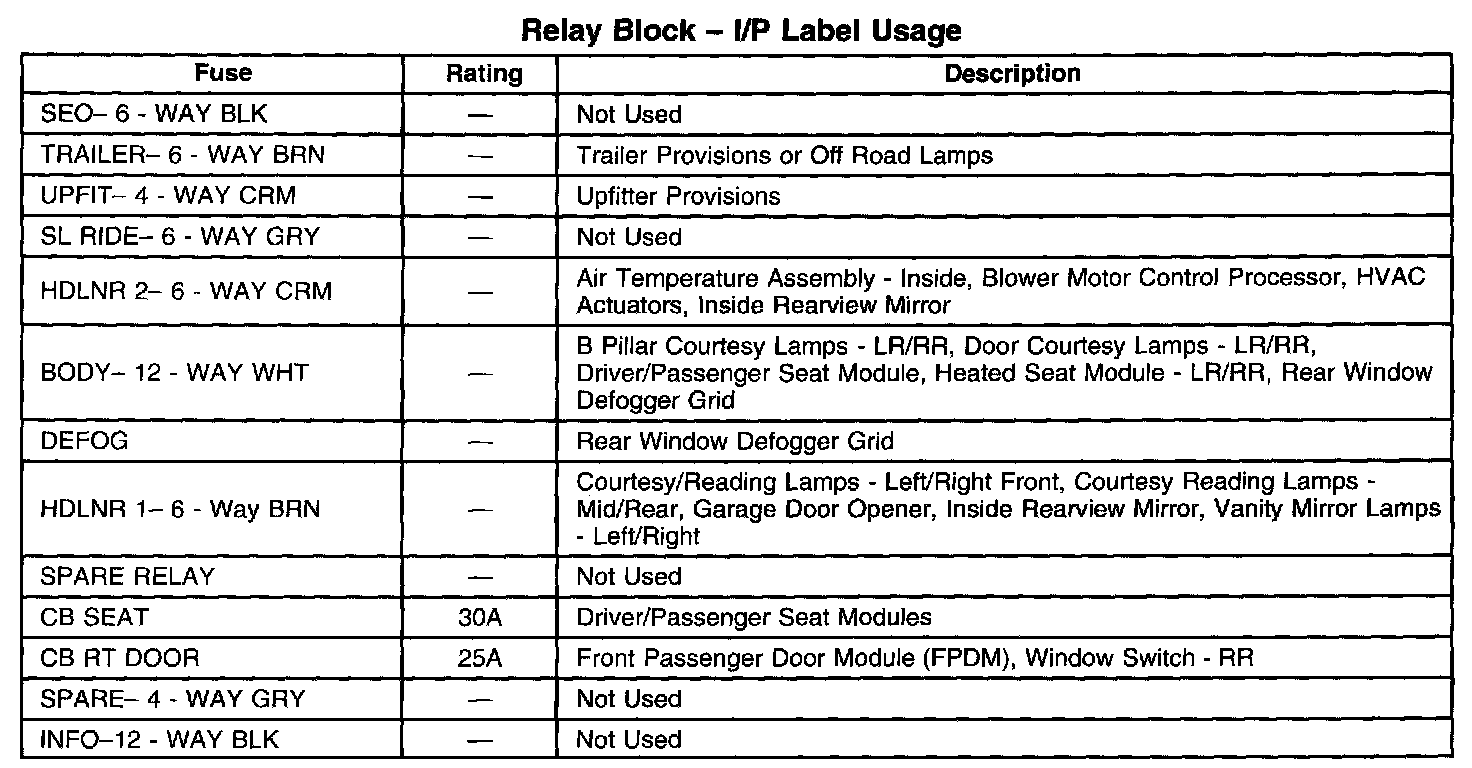

Application Table:

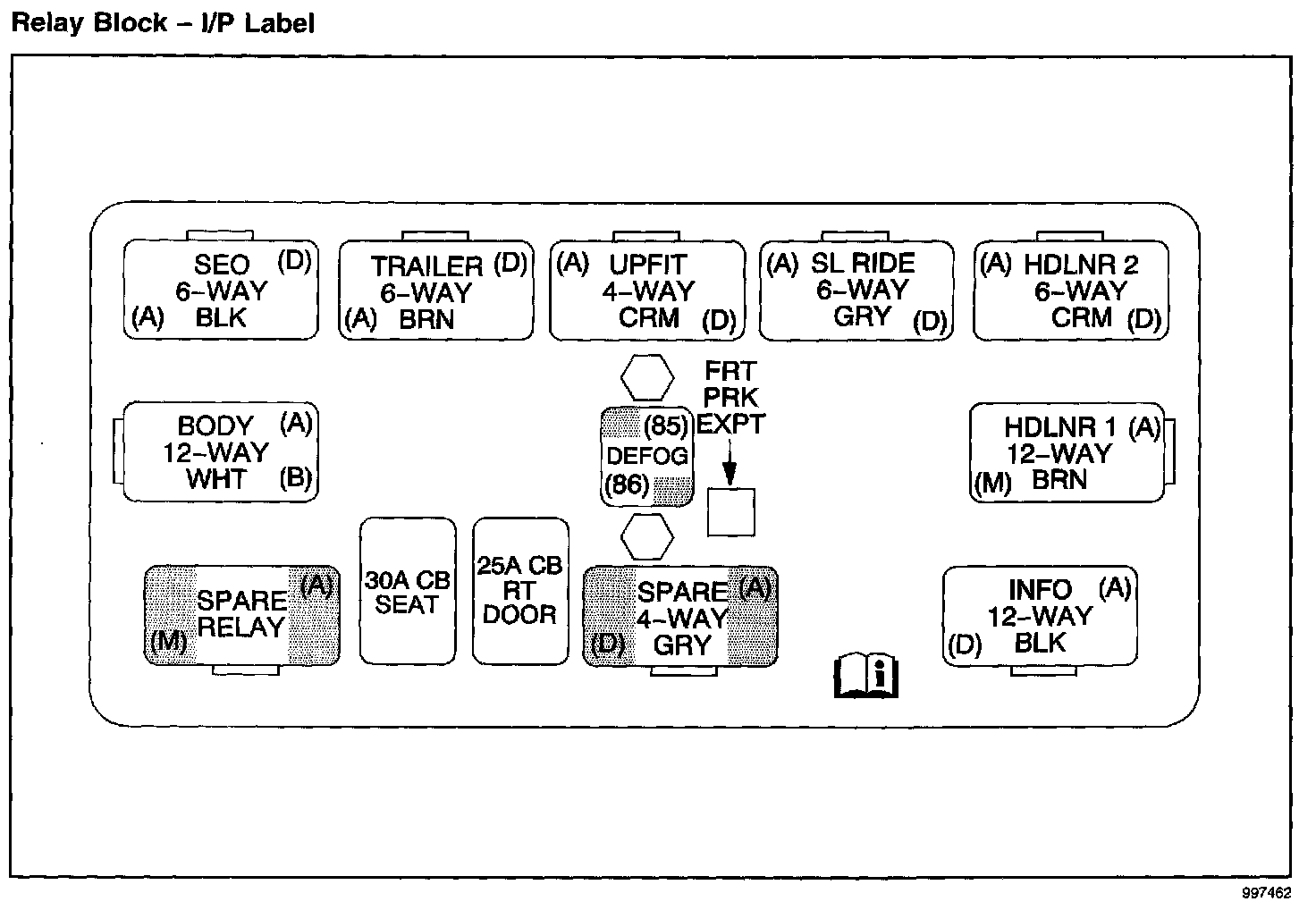

Location View:



Location View:
