Refrigerant Pressure Sensor / Switch: Locations

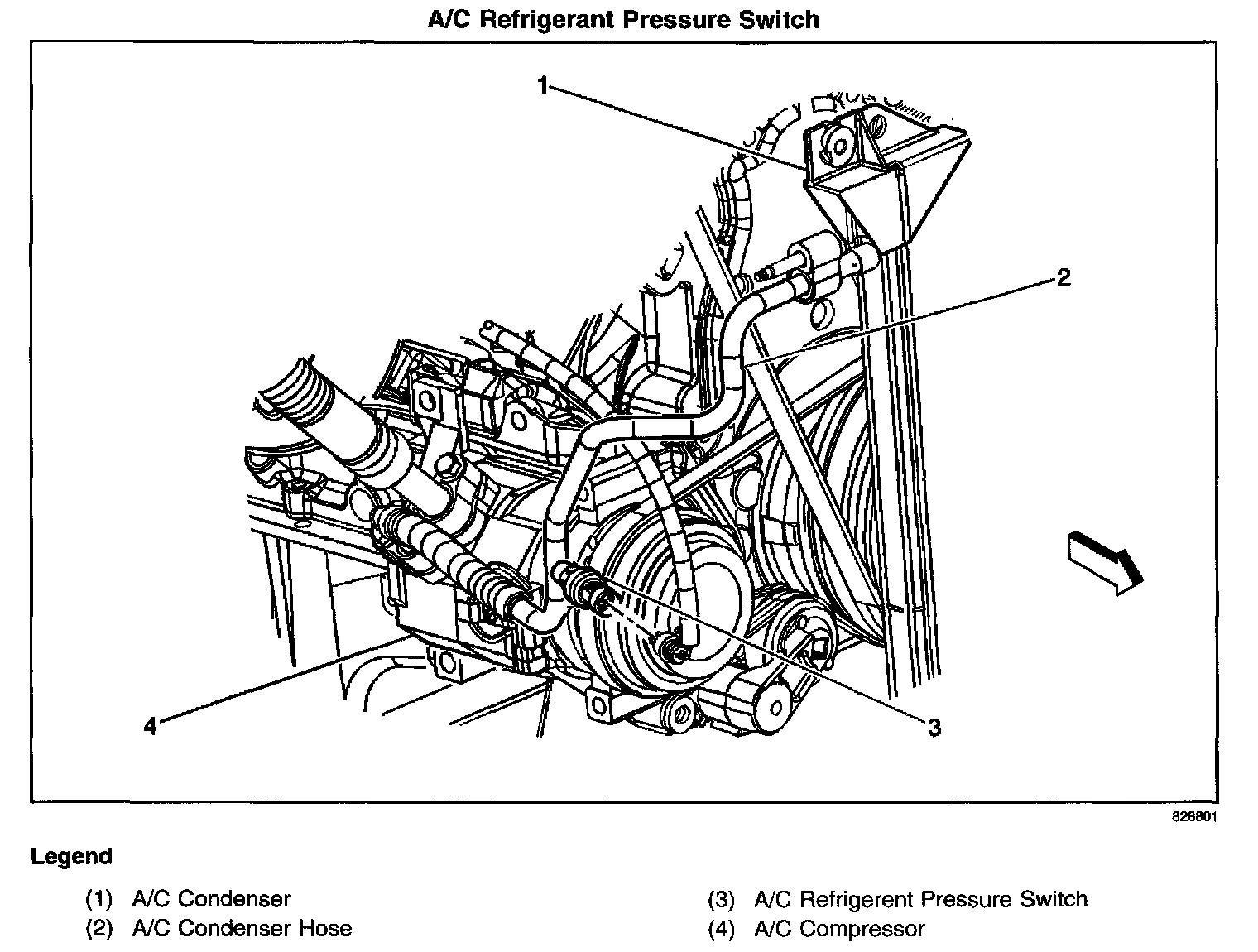

A/C Refrigerant Pressure Switch:

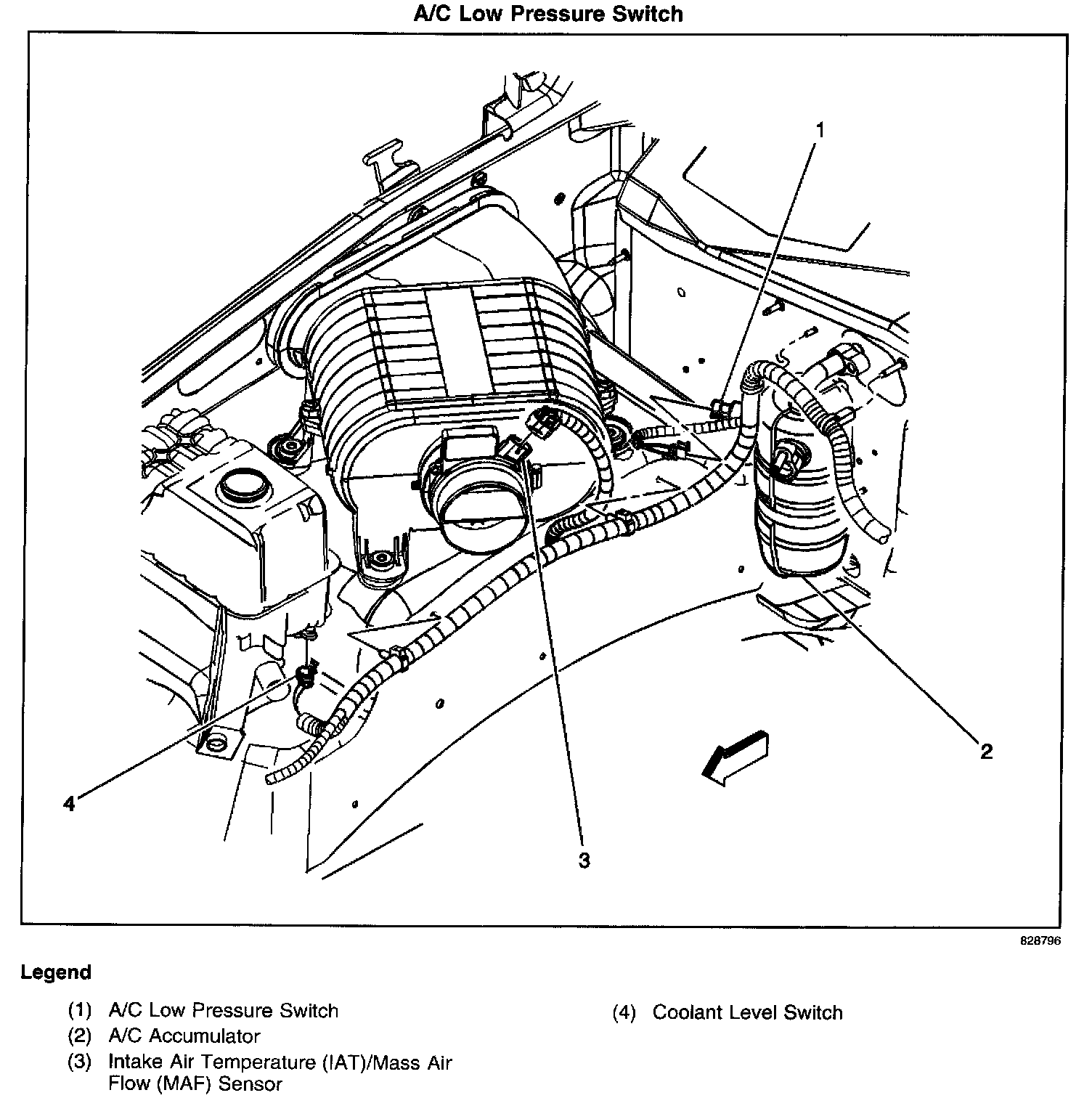

A/C Low Pressure Switch:
