Home >> Hummer >> 2003 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Shift Linkage, A/T

Shift Linkage, A/T

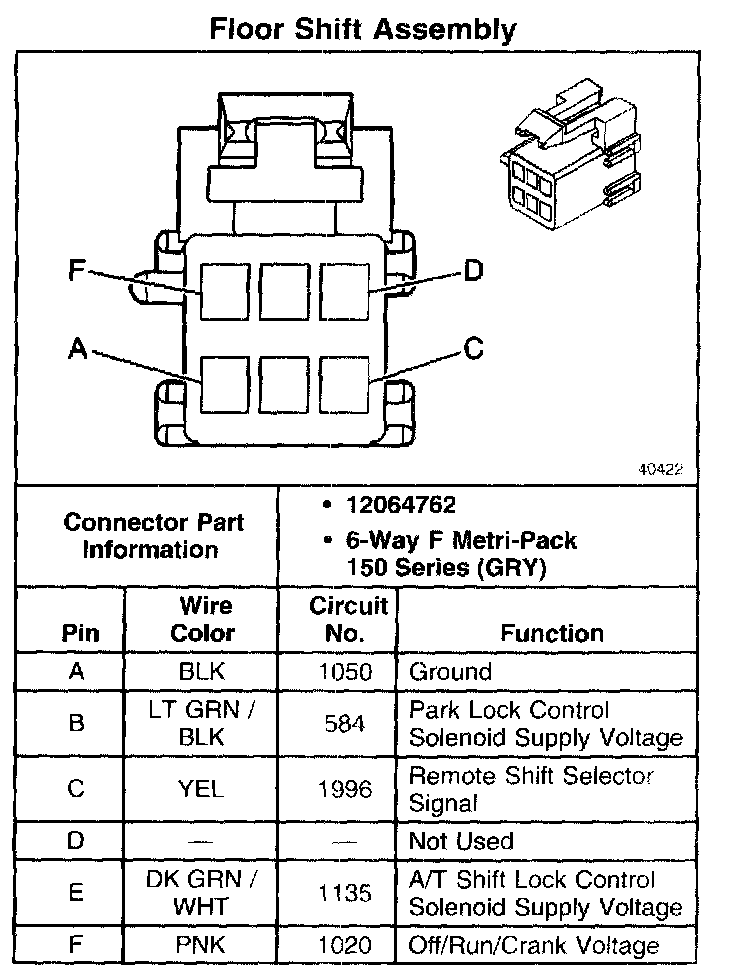

Floor Shift Assembly:



Floor Shift Assembly:
