Antenna Amplifier
Antenna Amplifier
Antenna Preamplifier:

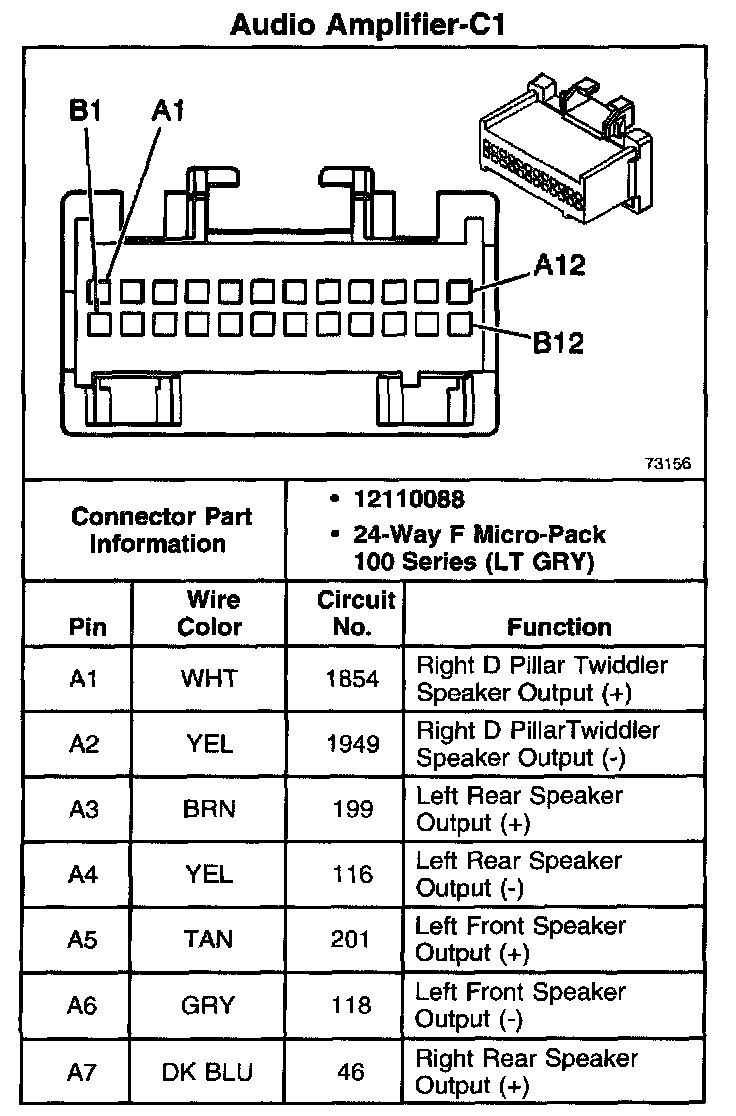

Audio Amplifier - C1 Part 1:

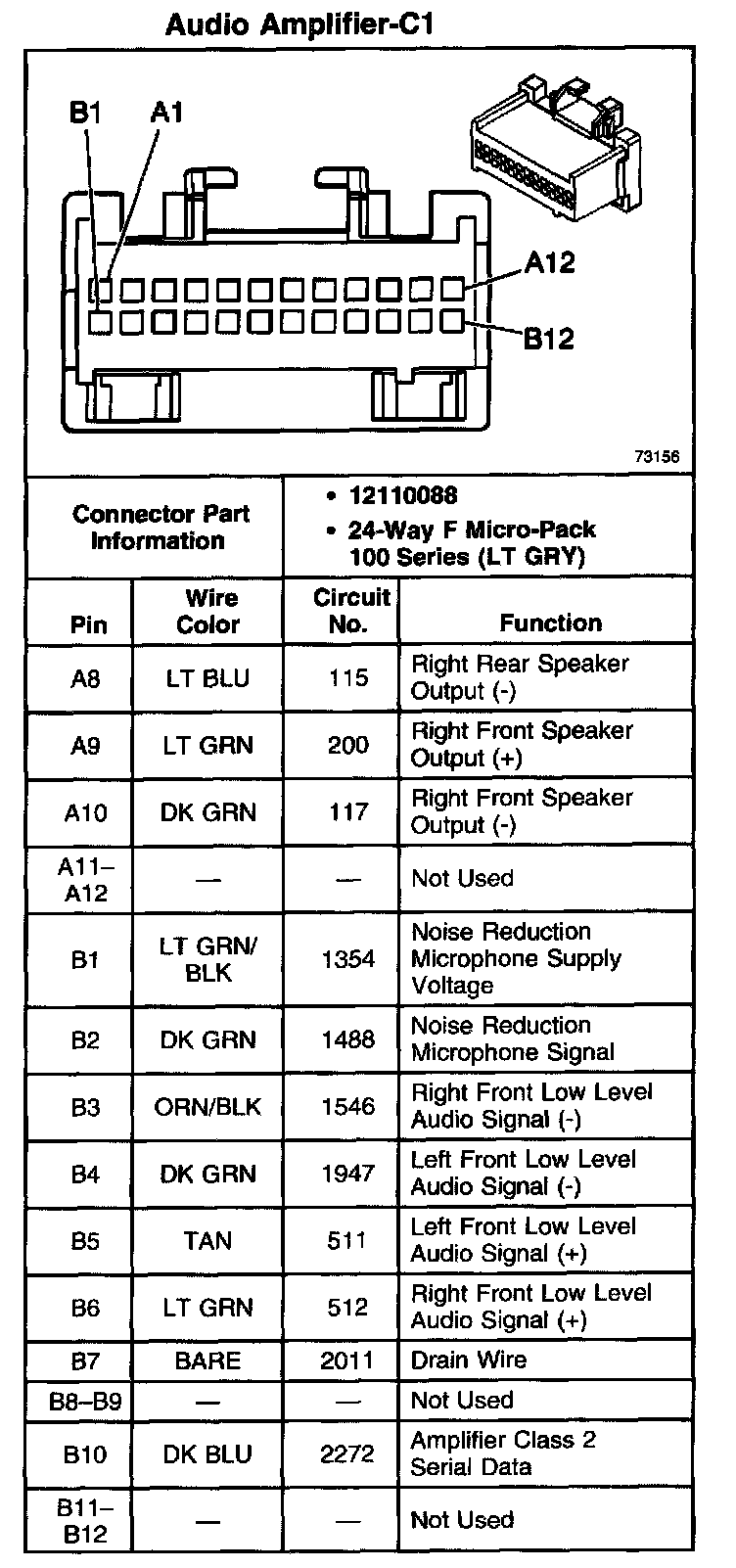

Audio Amplifier - C1 Part 2:

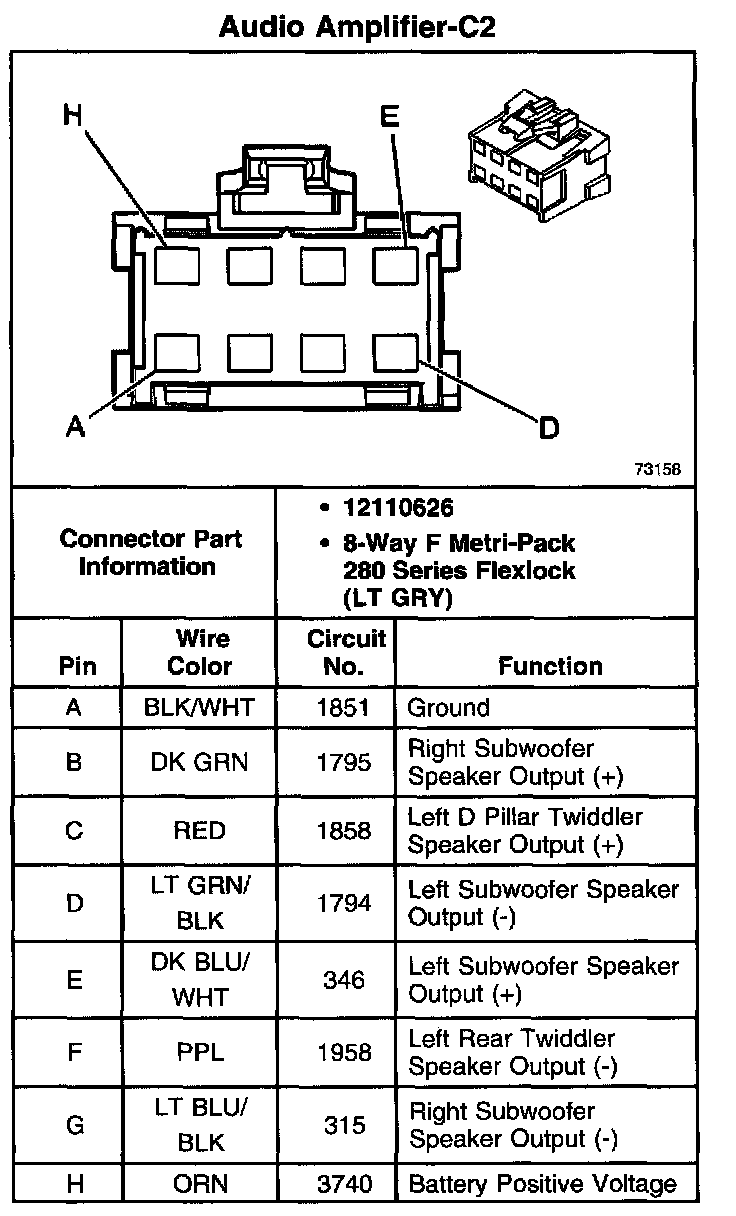

Audio Amplifier - C2:
