Driving Position Memory System (DPMS) Component Location Index(Driving Position Memory System (DPMS))

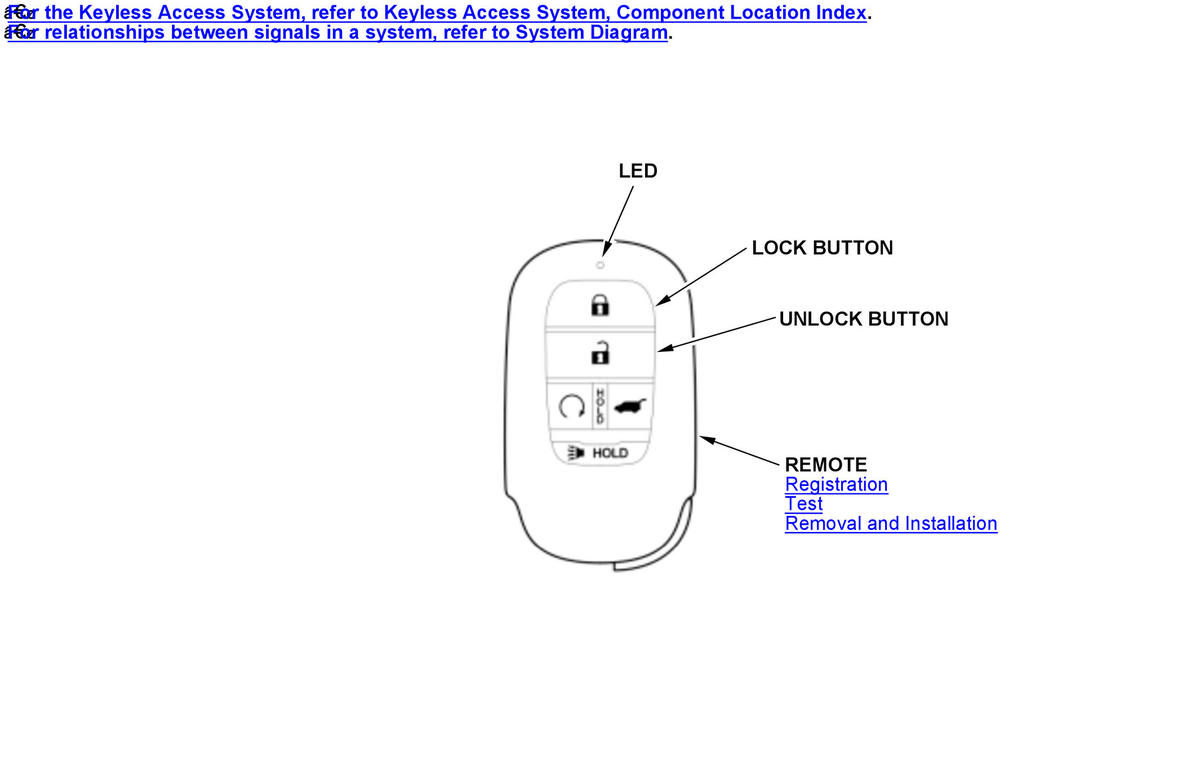

GHH580014Courtesy of HONDA, U.S.A., INC.

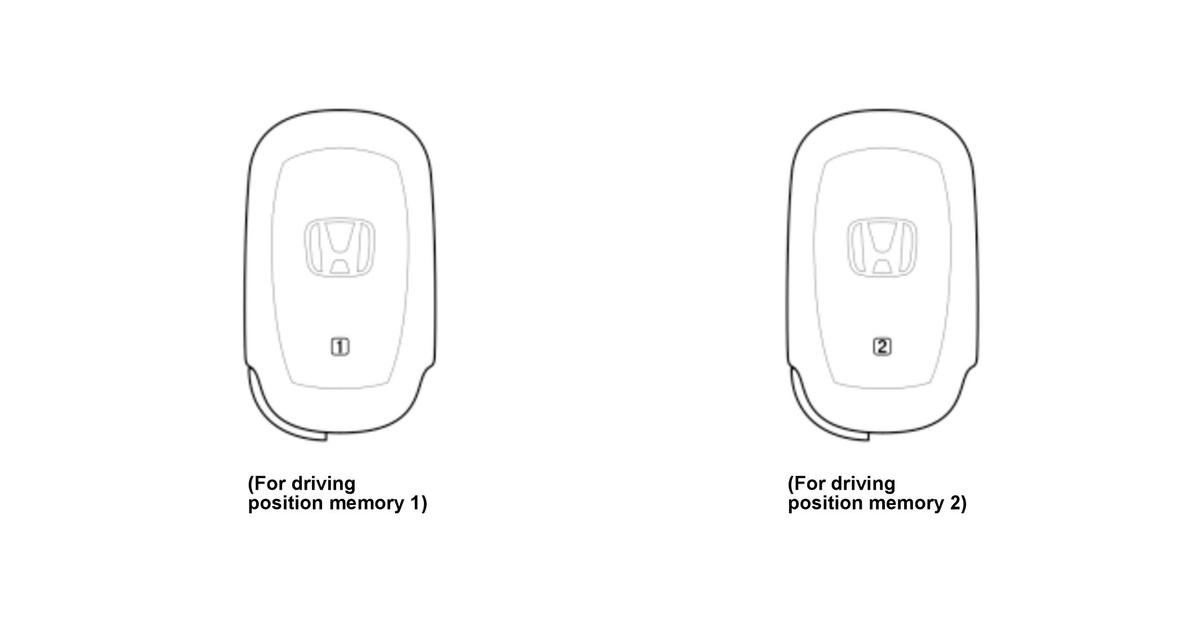

GHH580015Courtesy of HONDA, U.S.A., INC.

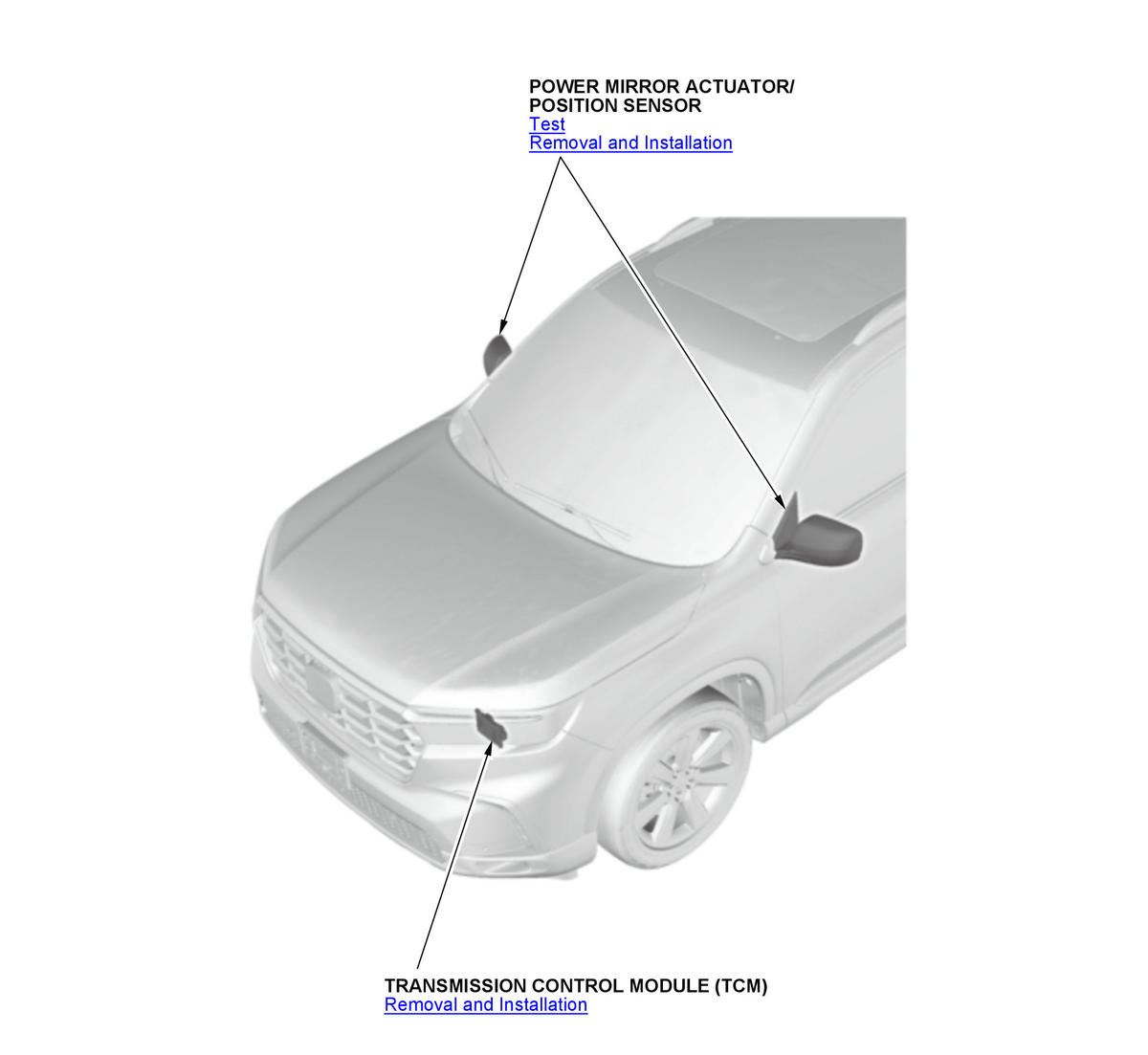

GHH580016Courtesy of HONDA, U.S.A., INC.

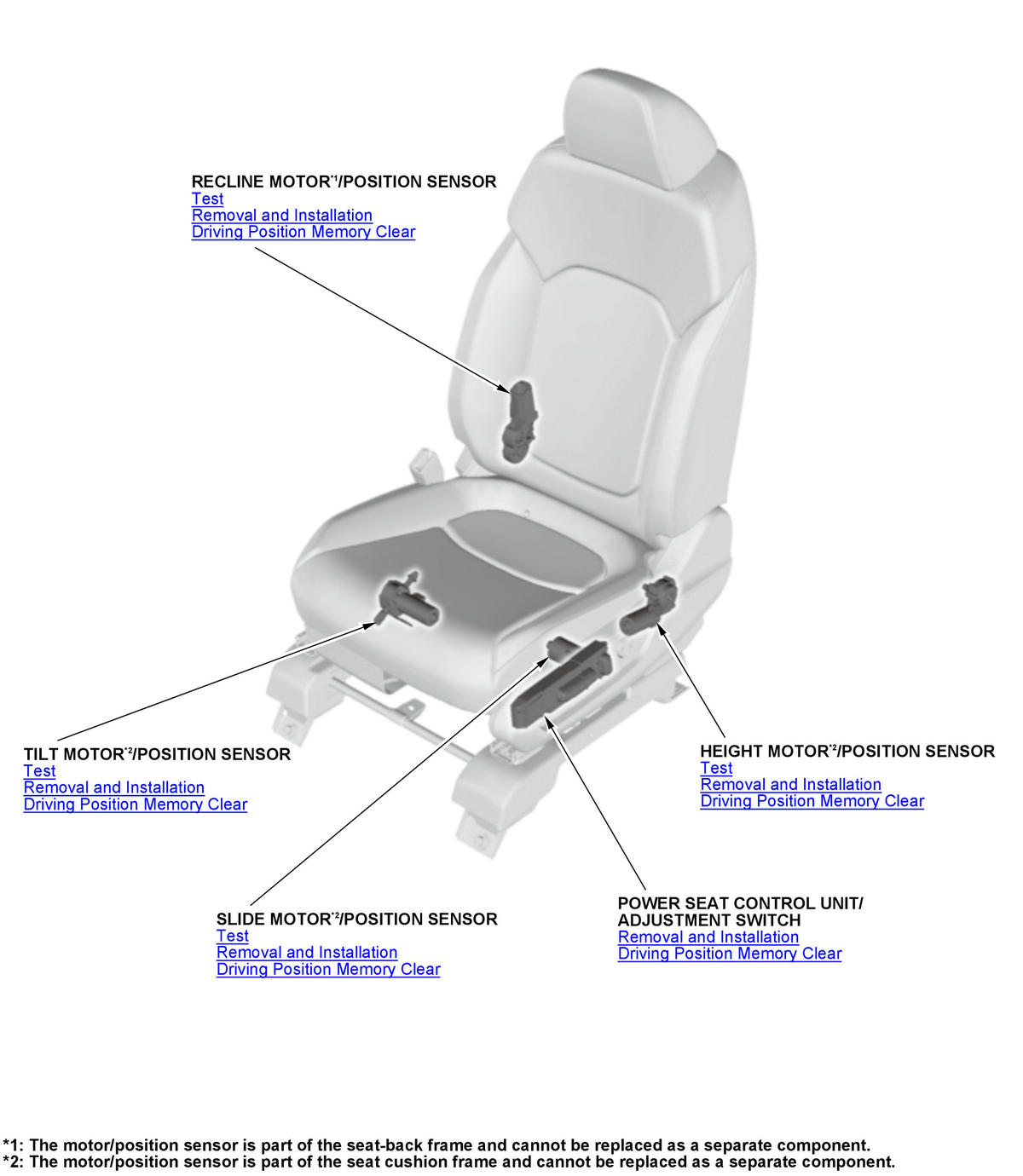

Driver's Seat

GHH580017Courtesy of HONDA, U.S.A., INC.

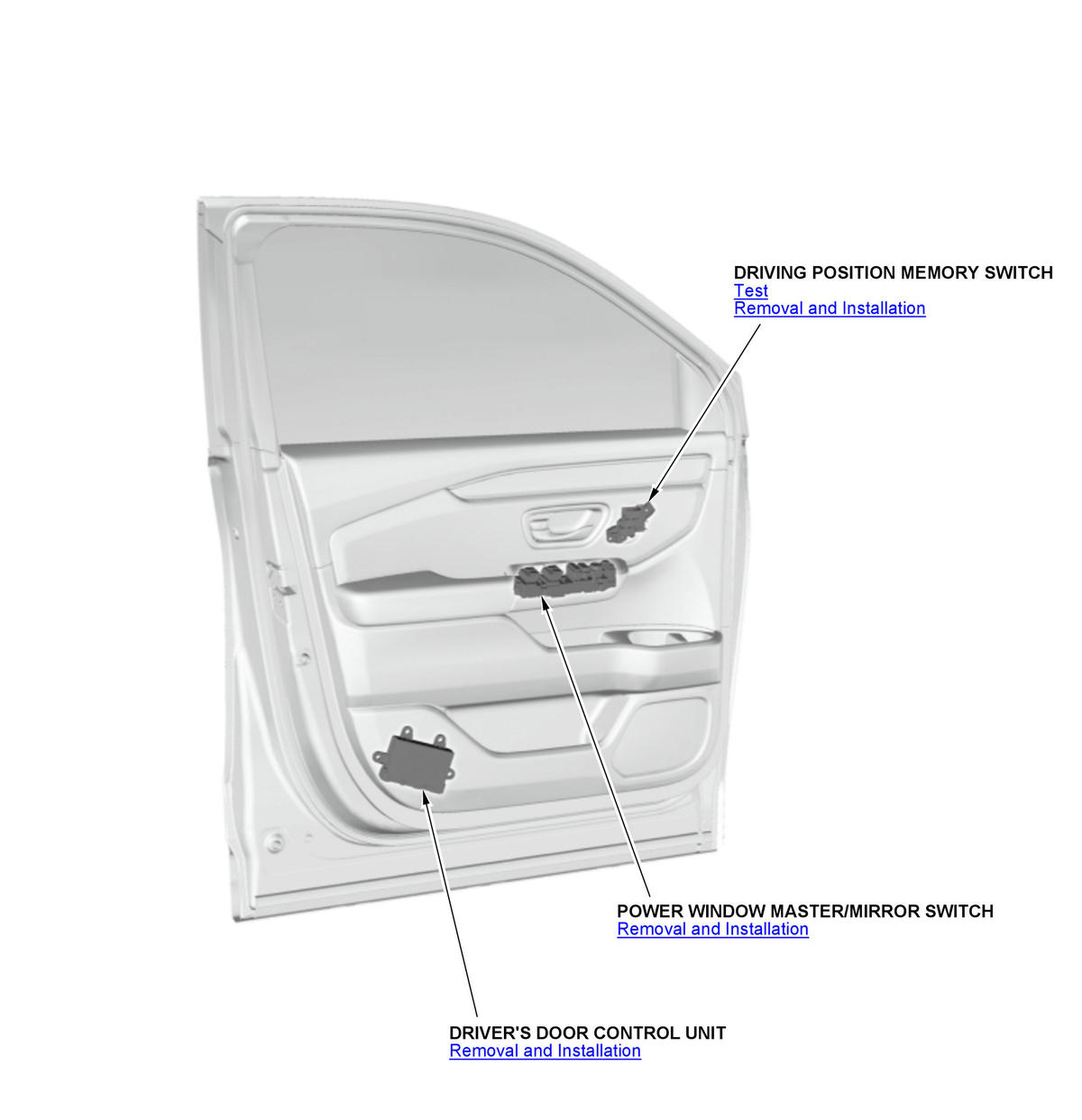

GHH580018Courtesy of HONDA, U.S.A., INC.

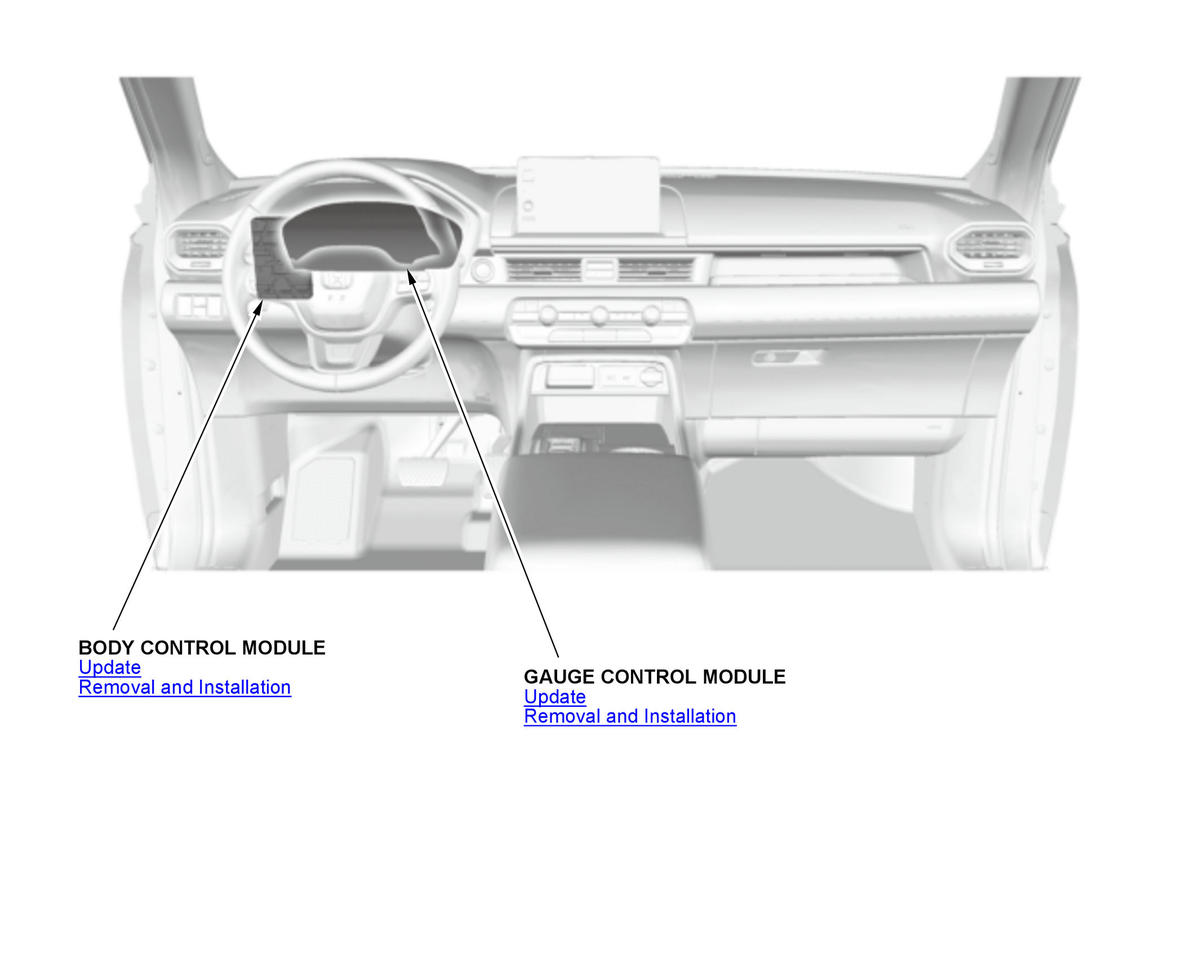

GHH580019Courtesy of HONDA, U.S.A., INC.
