Circuit Diagram - PCM A/T Control System

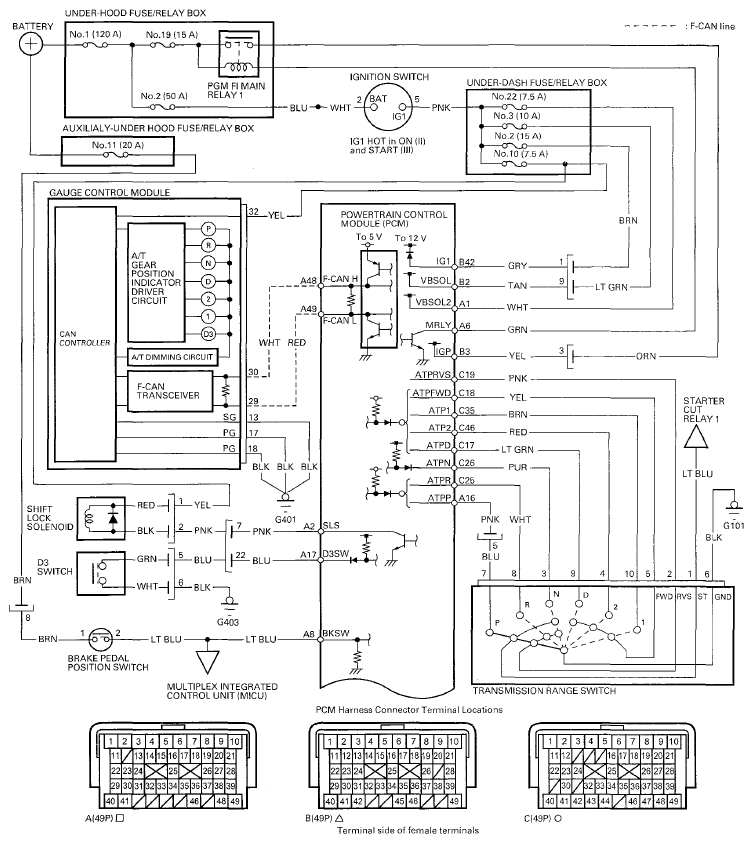

Fig 1: PCM A/T Control System Circuit Diagram (1 Of 2)
G08087121Courtesy of AMERICAN HONDA MOTOR CO., INC.

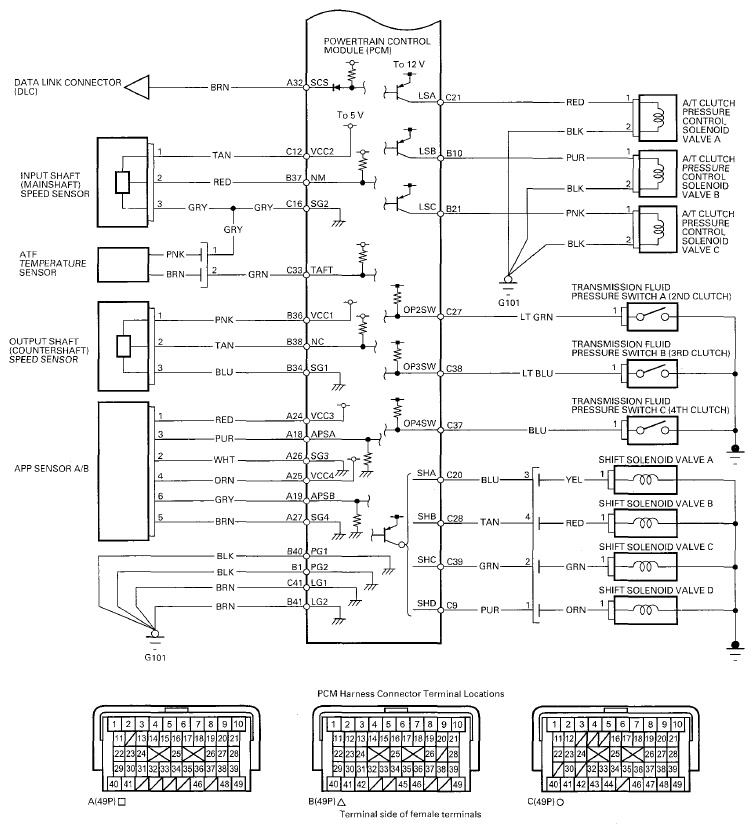

Fig 2: PCM A/T Control System Circuit Diagram (2 Of 2)
G08087122Courtesy of AMERICAN HONDA MOTOR CO., INC.
