Home >> Honda >> 2014 >> Pilot EX, FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> Relay And Control Unit Locations >> Door

Relay And Control Unit Locations: Door

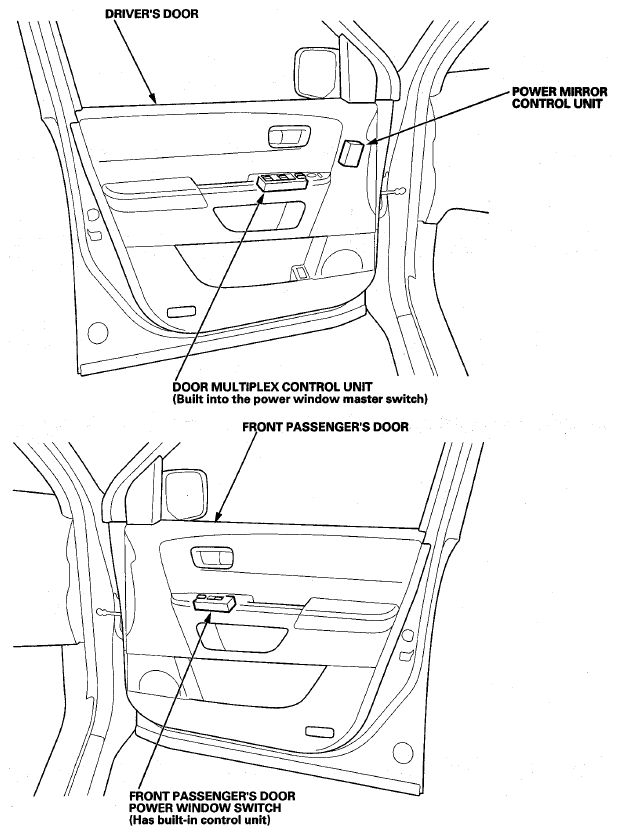

Fig 1: Door Control Unit Locations

G08090555

Courtesy of AMERICAN HONDA MOTOR CO., INC.
