EGR Valve: Service and Repair

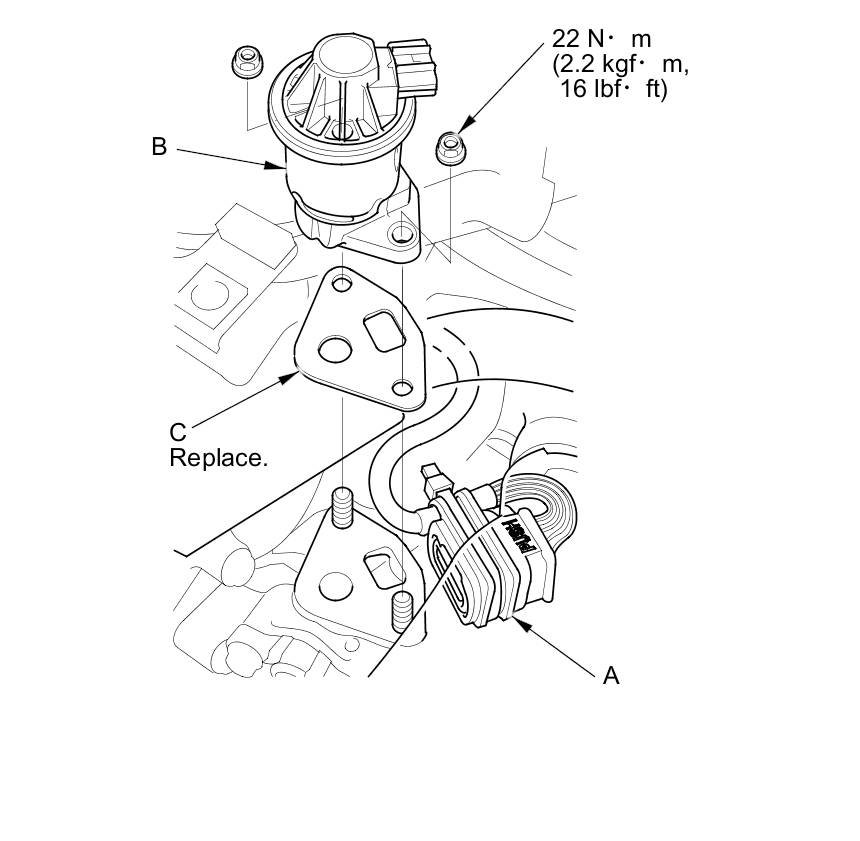

EGR Valve Replacement

1. Remove the engine cover.

2. Disconnect the EGR 5P valve connector (A).





3. Remove the EGR valve (B).

4. Install the parts in the reverse order of removal with a new gasket (C).
