EGR Tube: Service and Repair

EGR Pipe Replacement

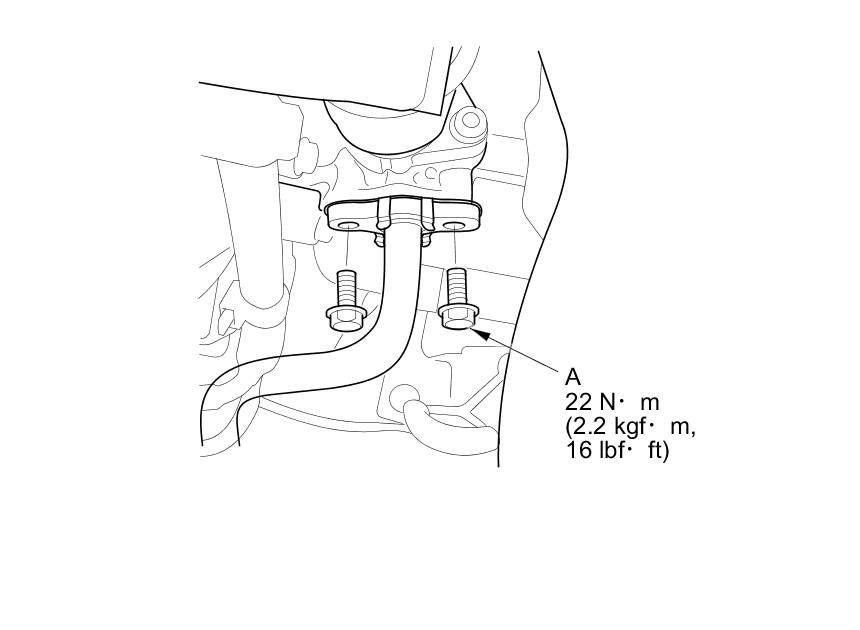

1. Remove the EGR pipe mounting bolts (A).





2. Raise the vehicle on a lift.

3. Remove the splash shield Splash Shield Replacement.

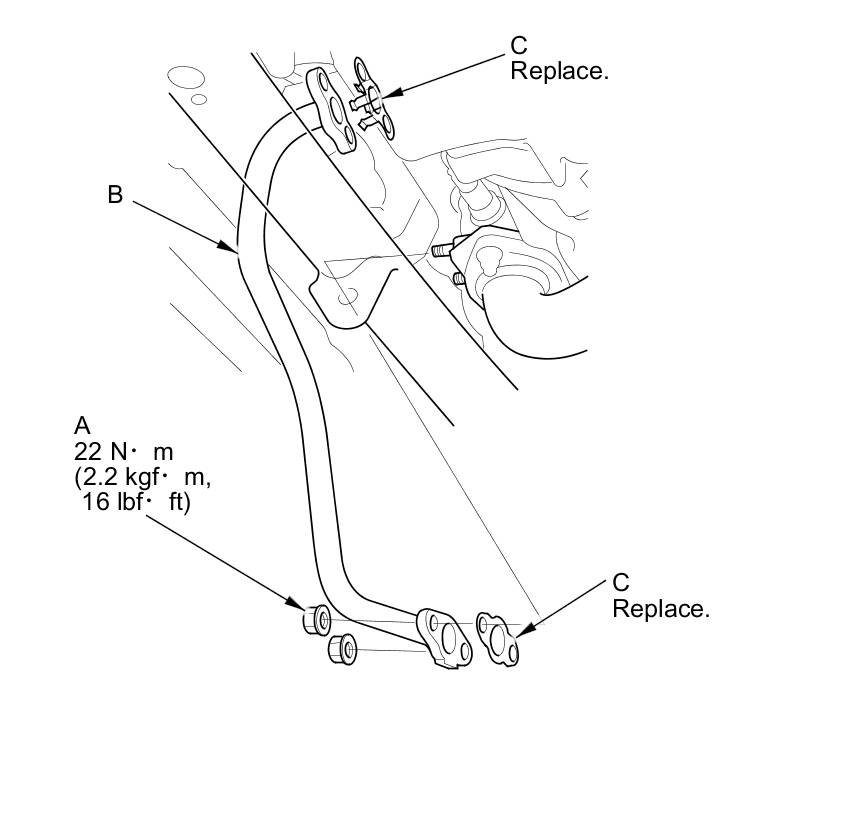

4. Remove the EGR pipe mounting nuts (A) and the EGR pipe (B).





5. Install the parts in the reverse order of removal with new gaskets (C).
