Fuse To Components Index

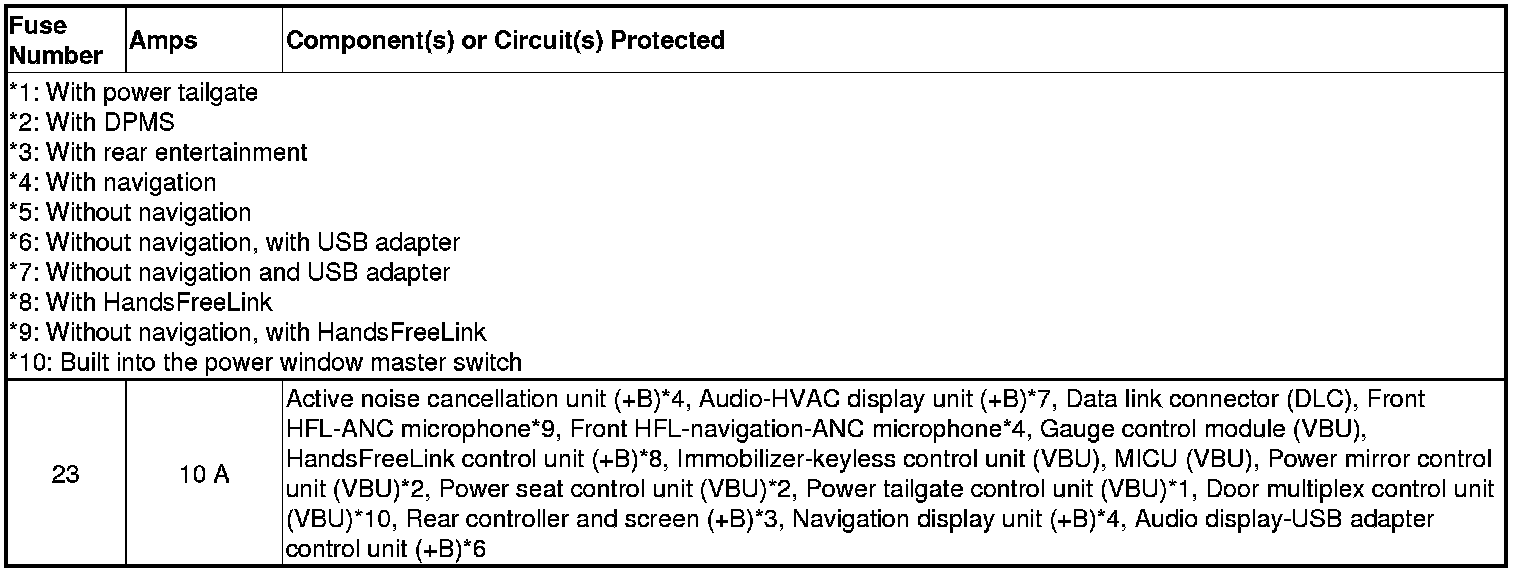

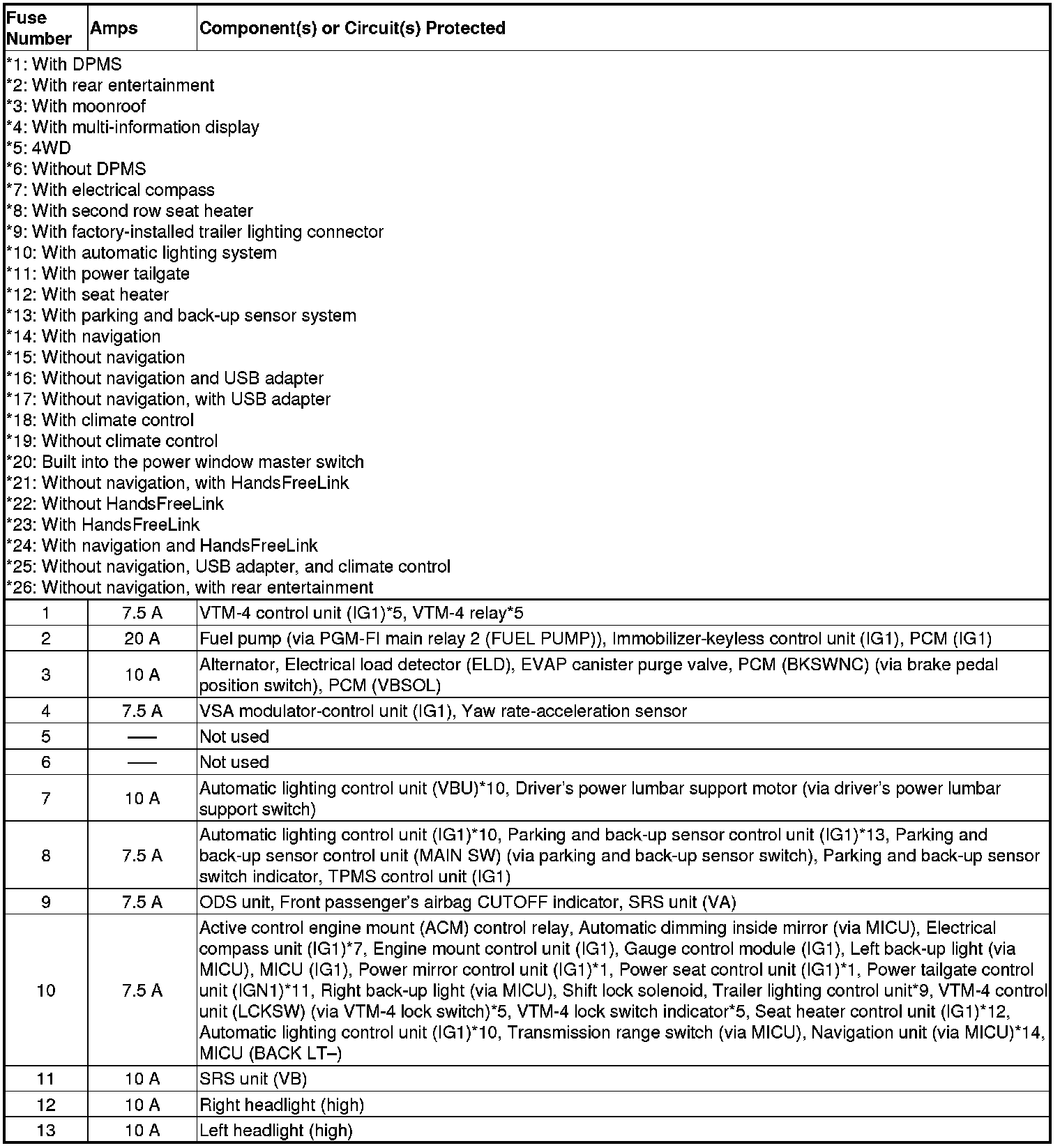

Fuse to Components Index

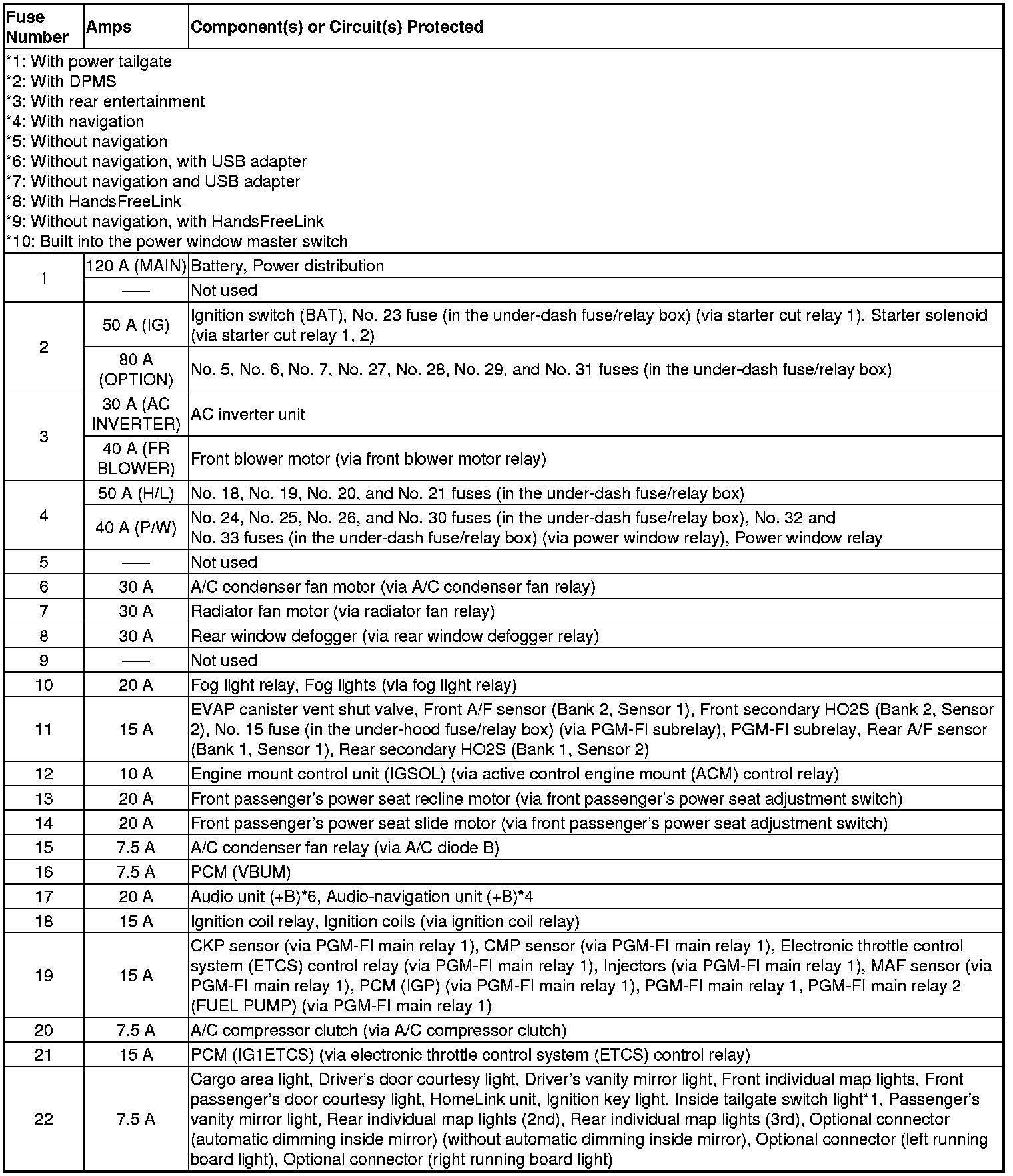

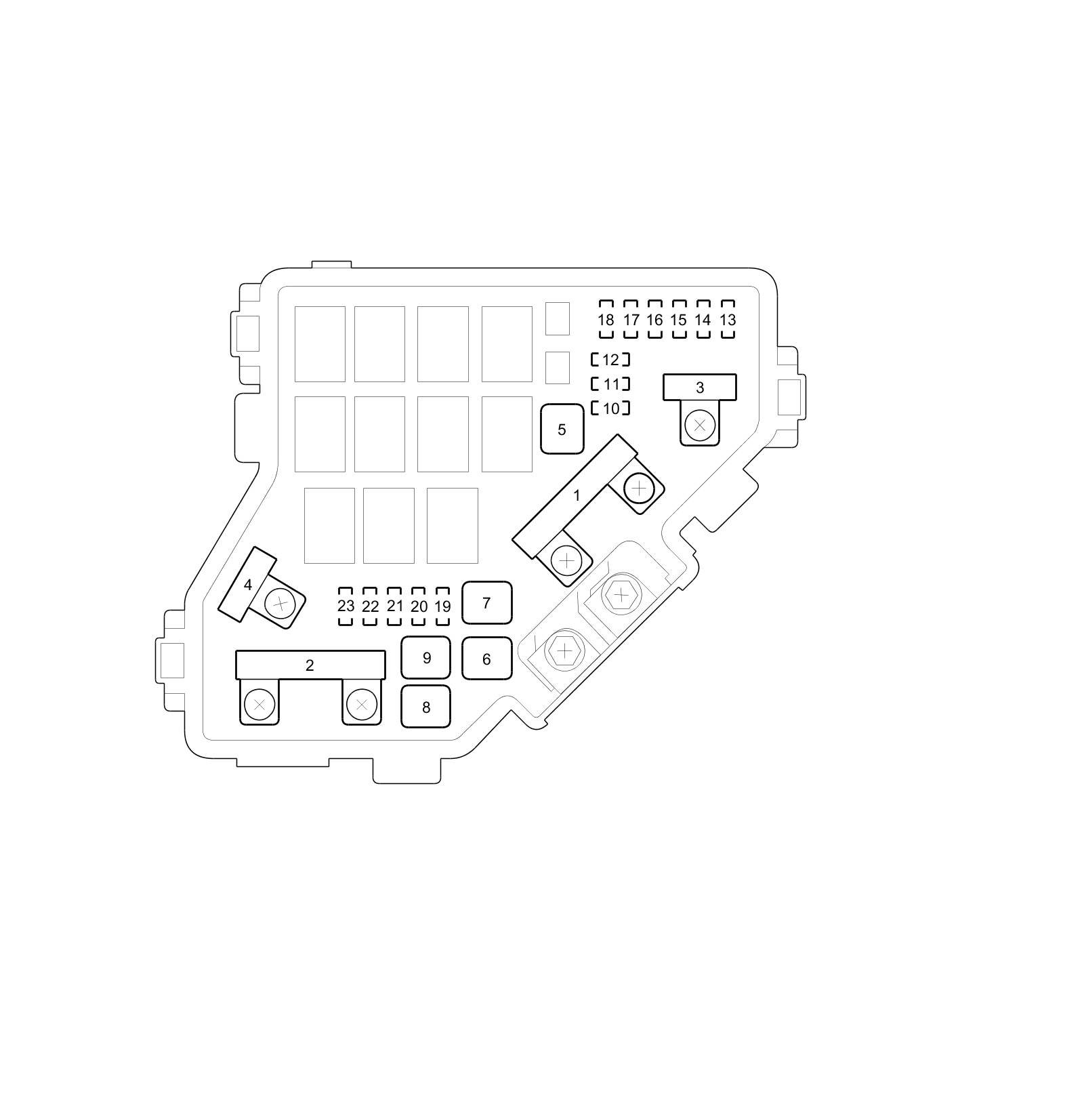

Under-hood Fuse/Relay Box

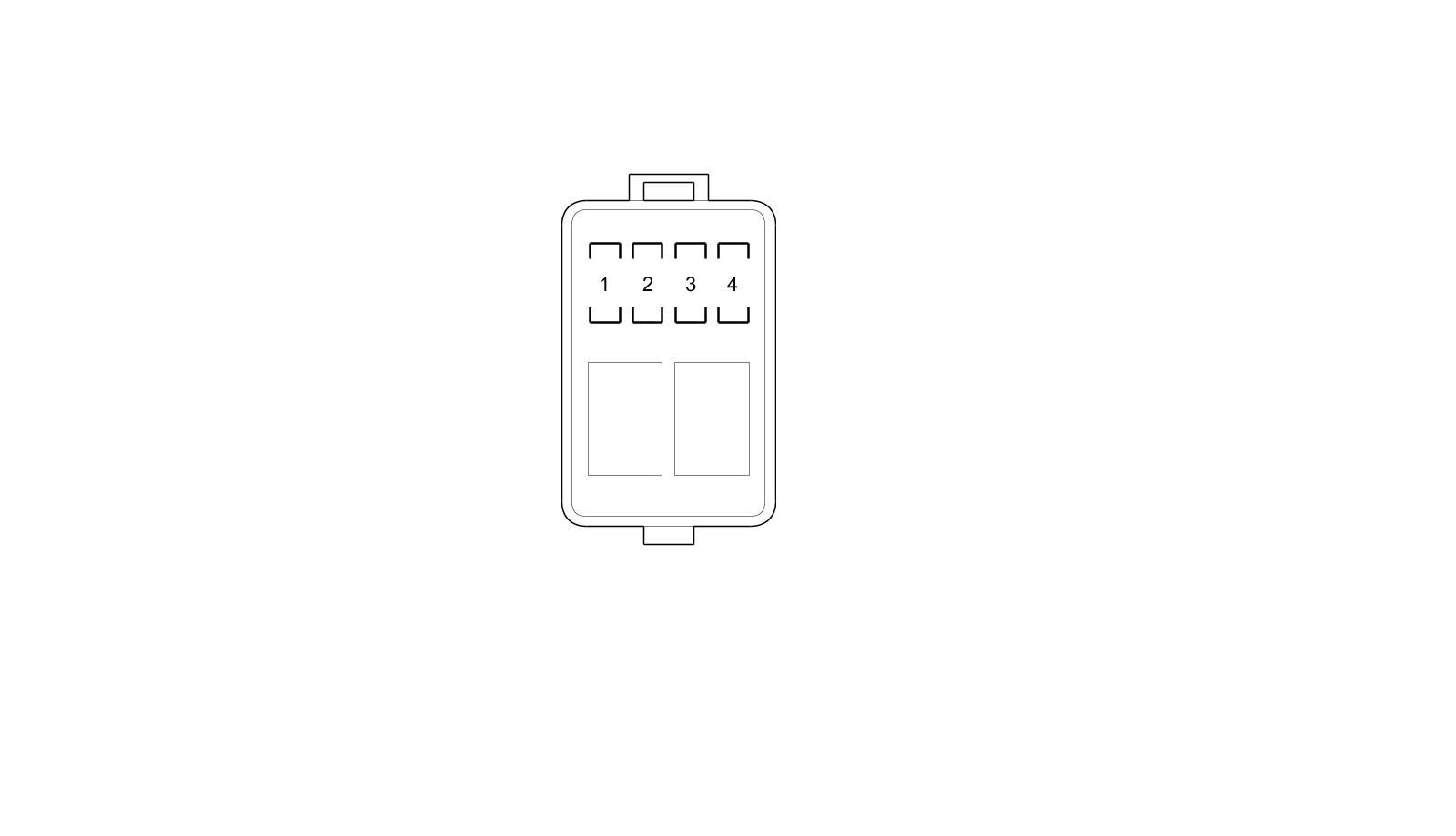

Auxiliary Under-hood fuse/Relay Box

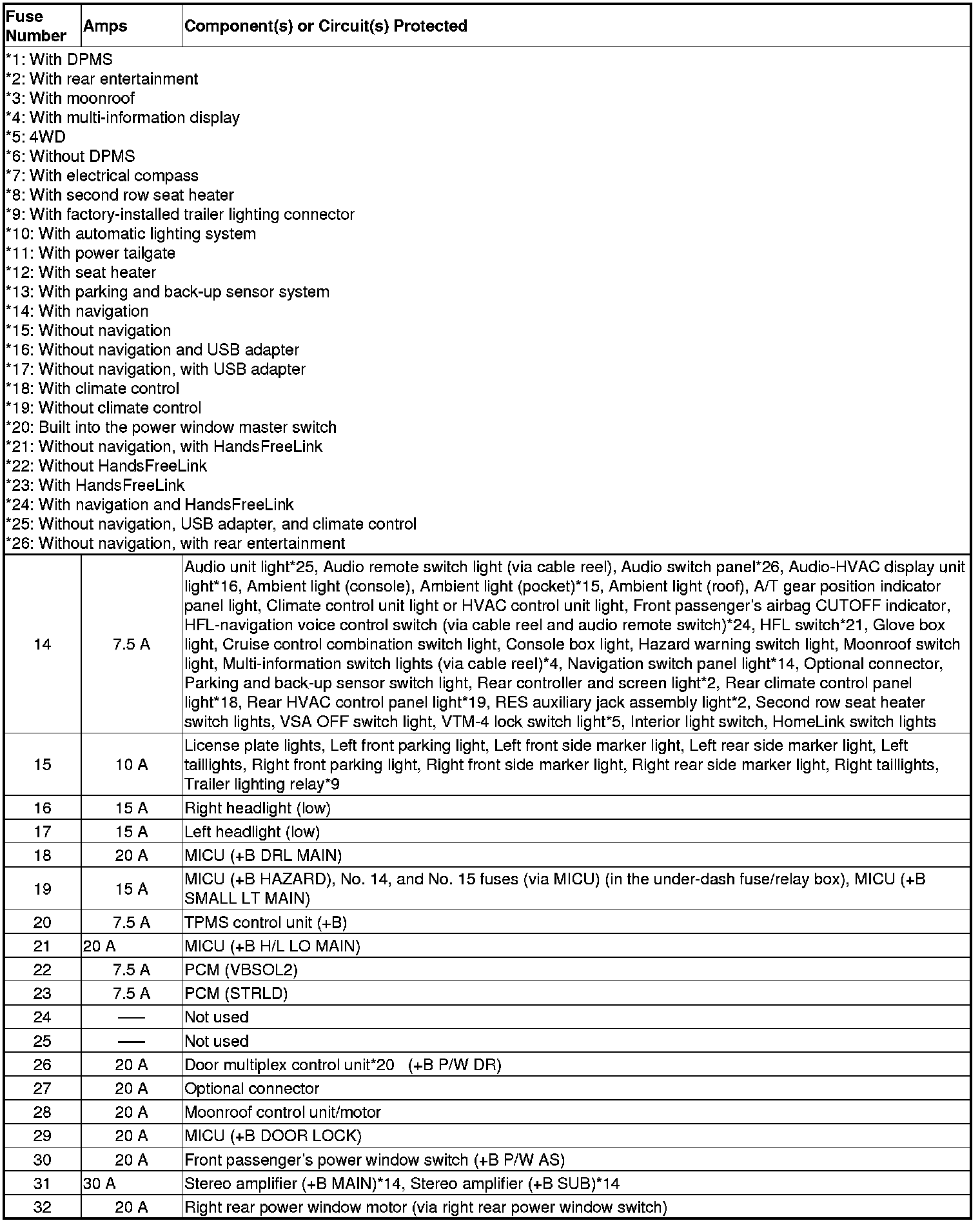

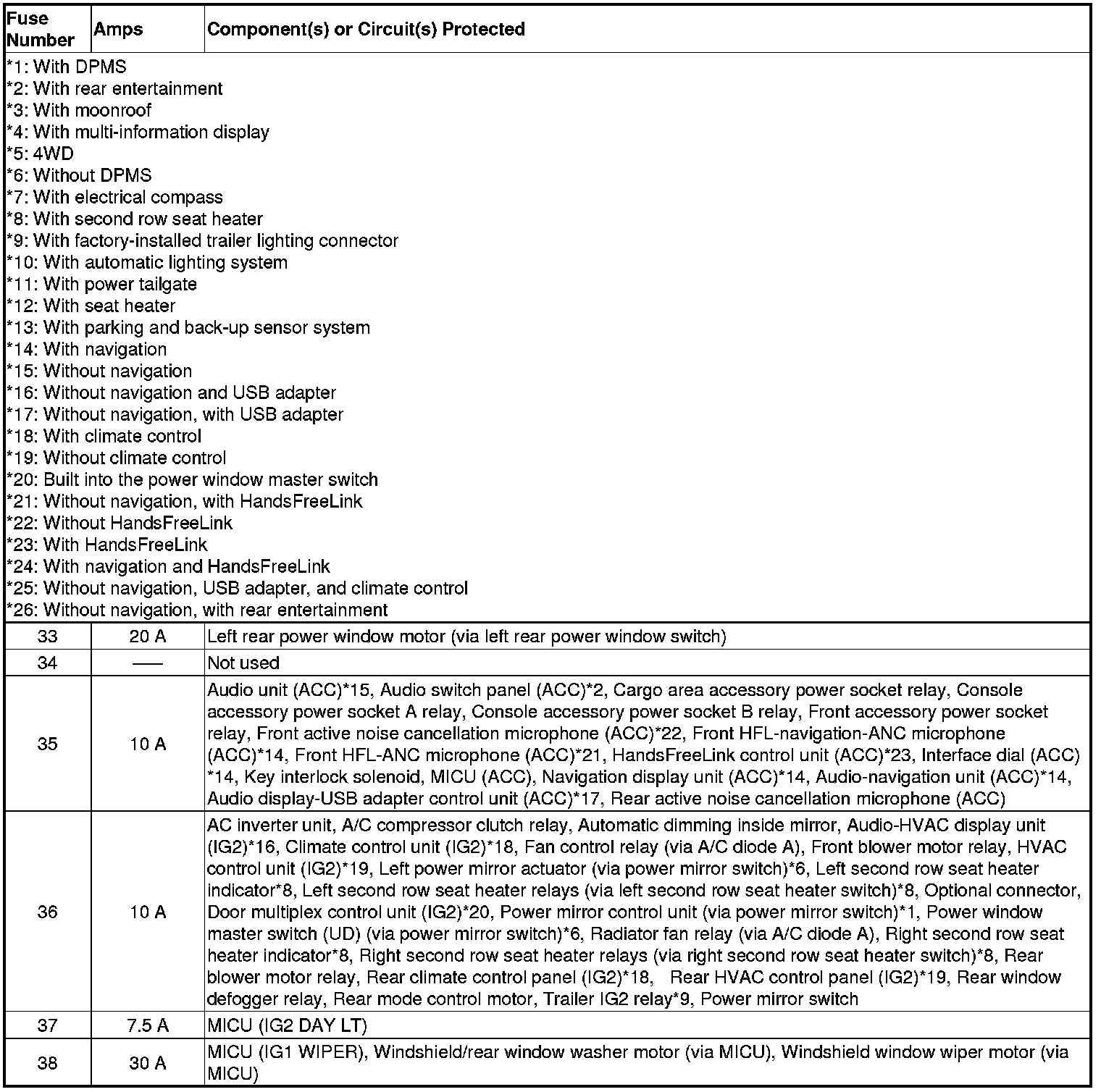

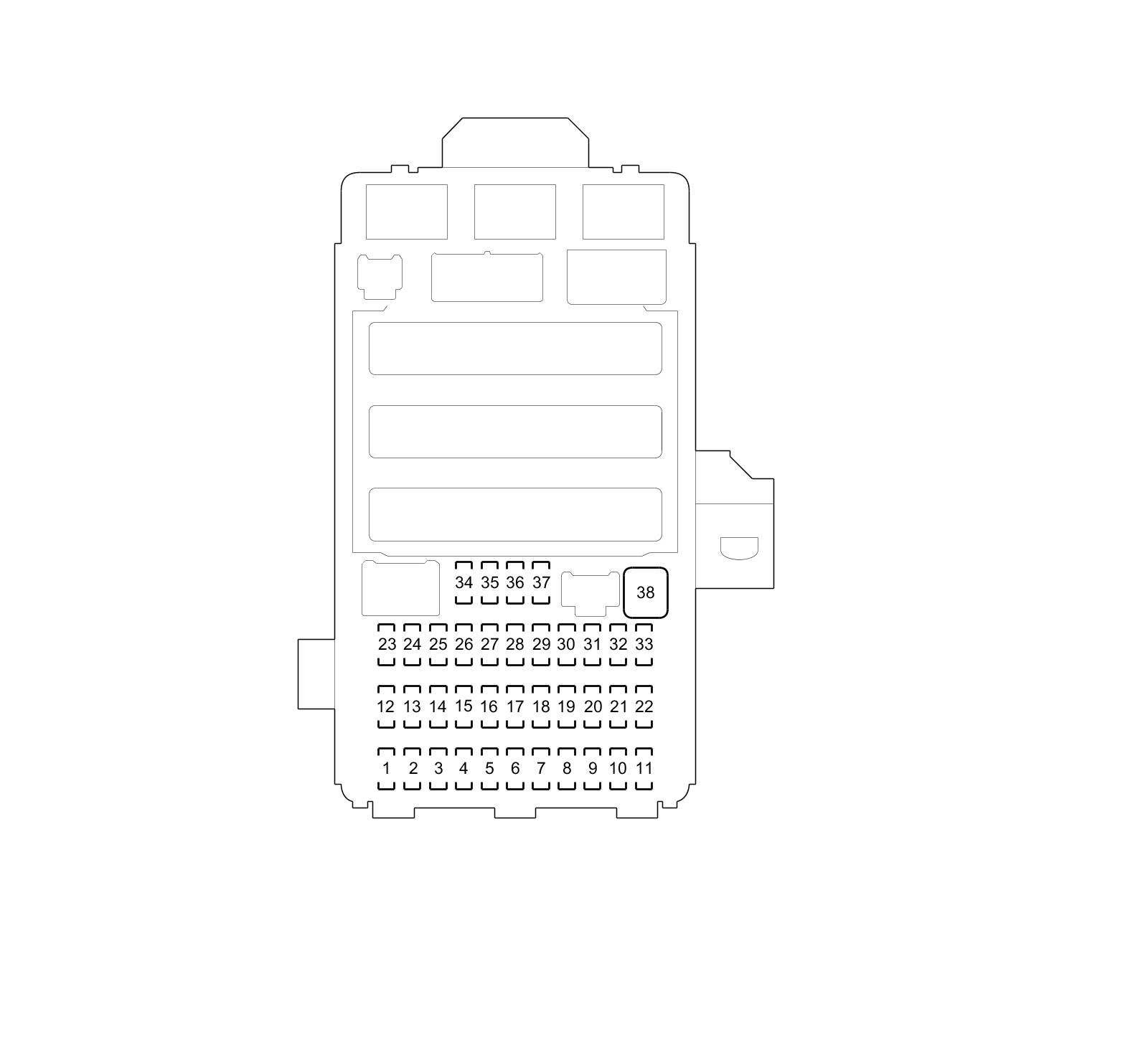

Under-dash Fuse/Relay Box

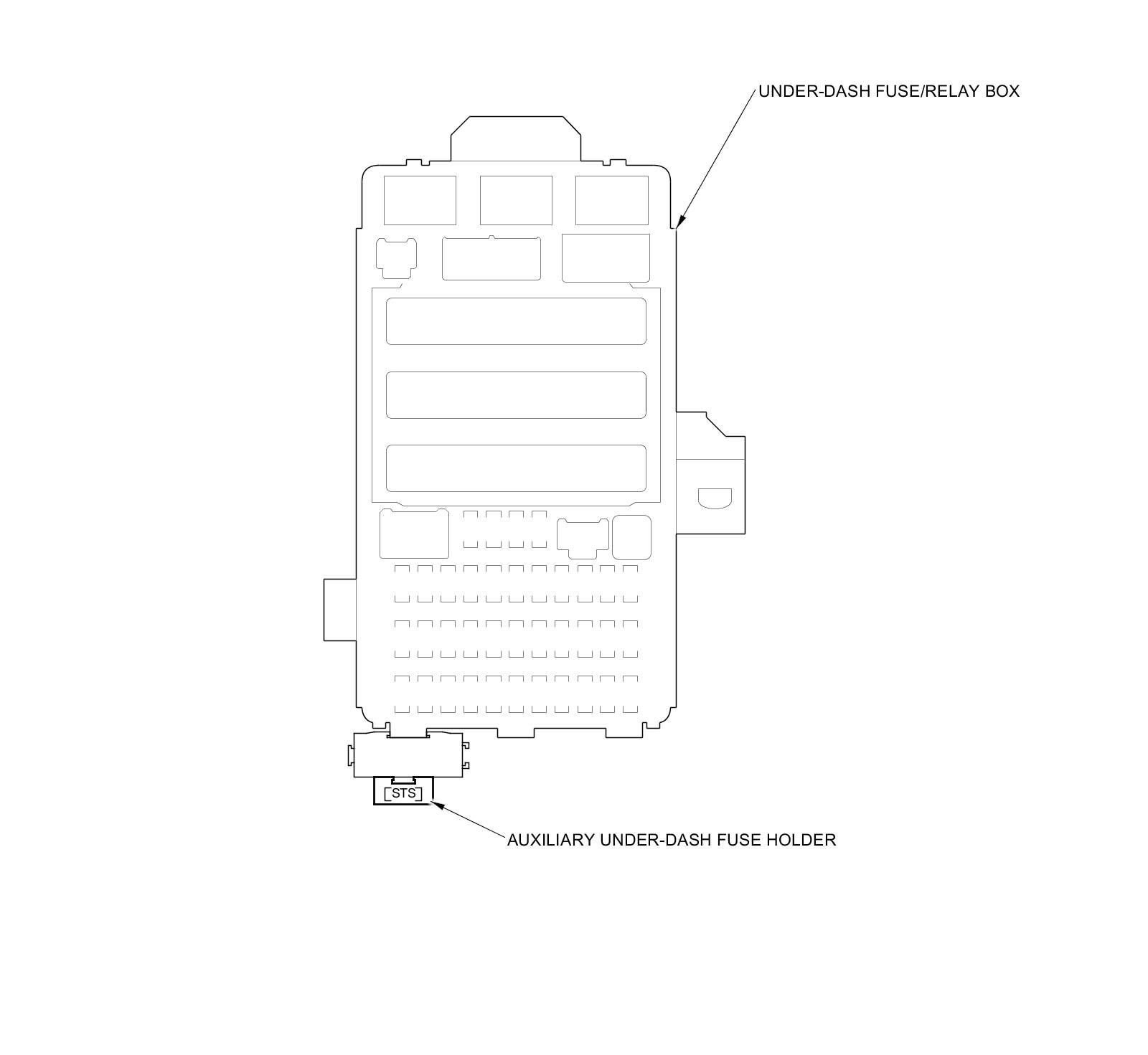

Auxiliary Under-dash Fuse Holder

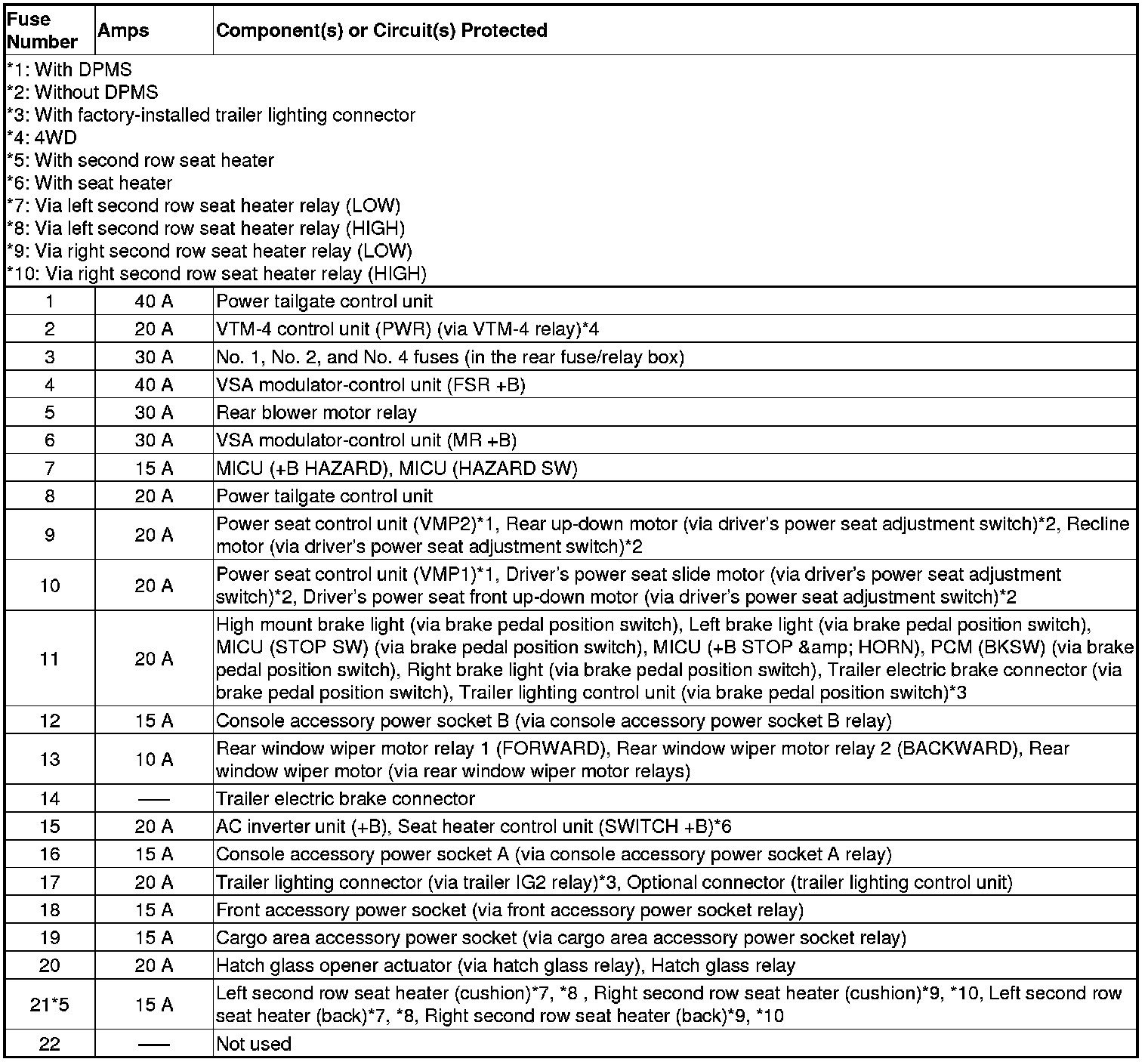

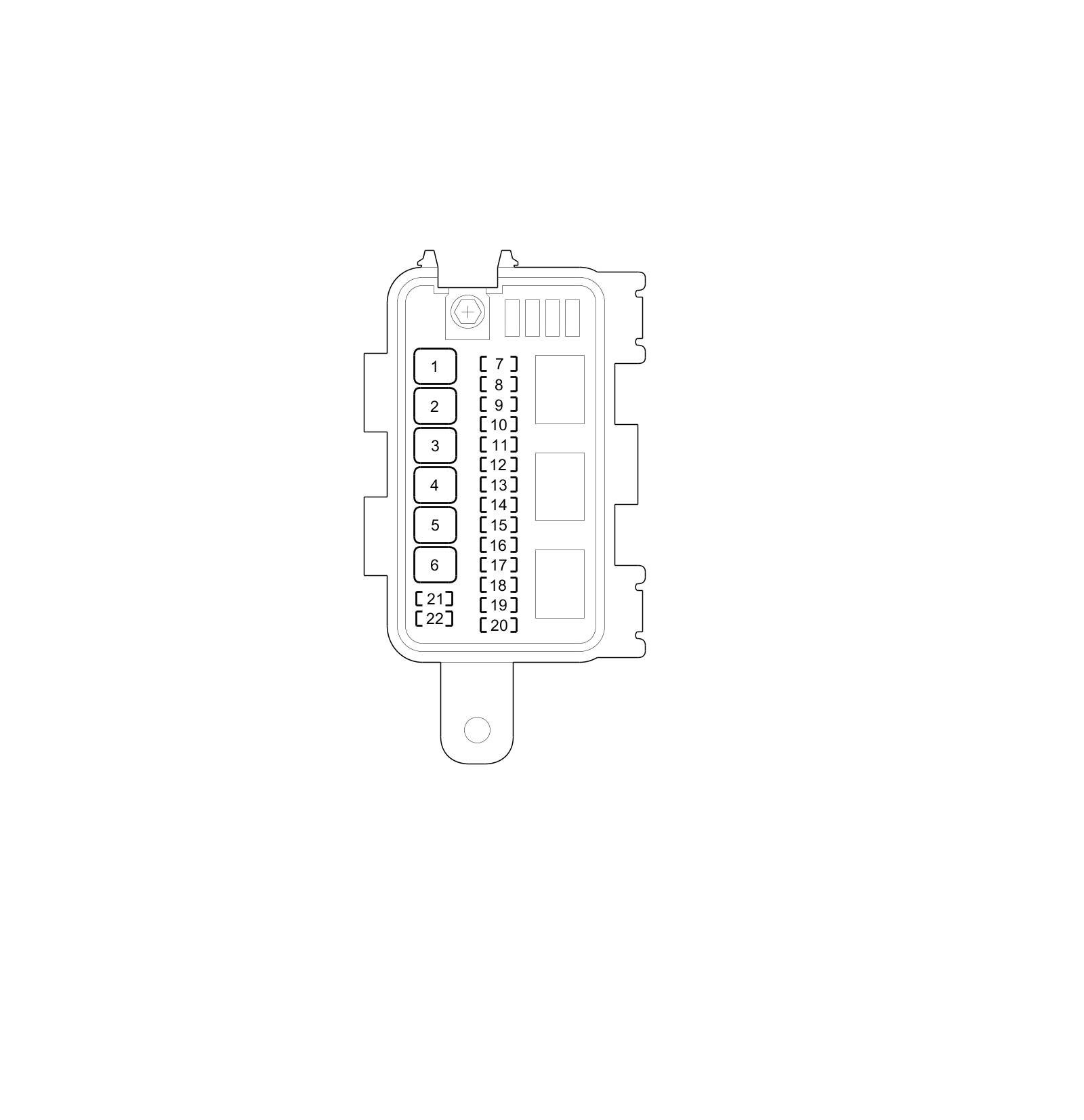

Rear Fuse/Relay Box
