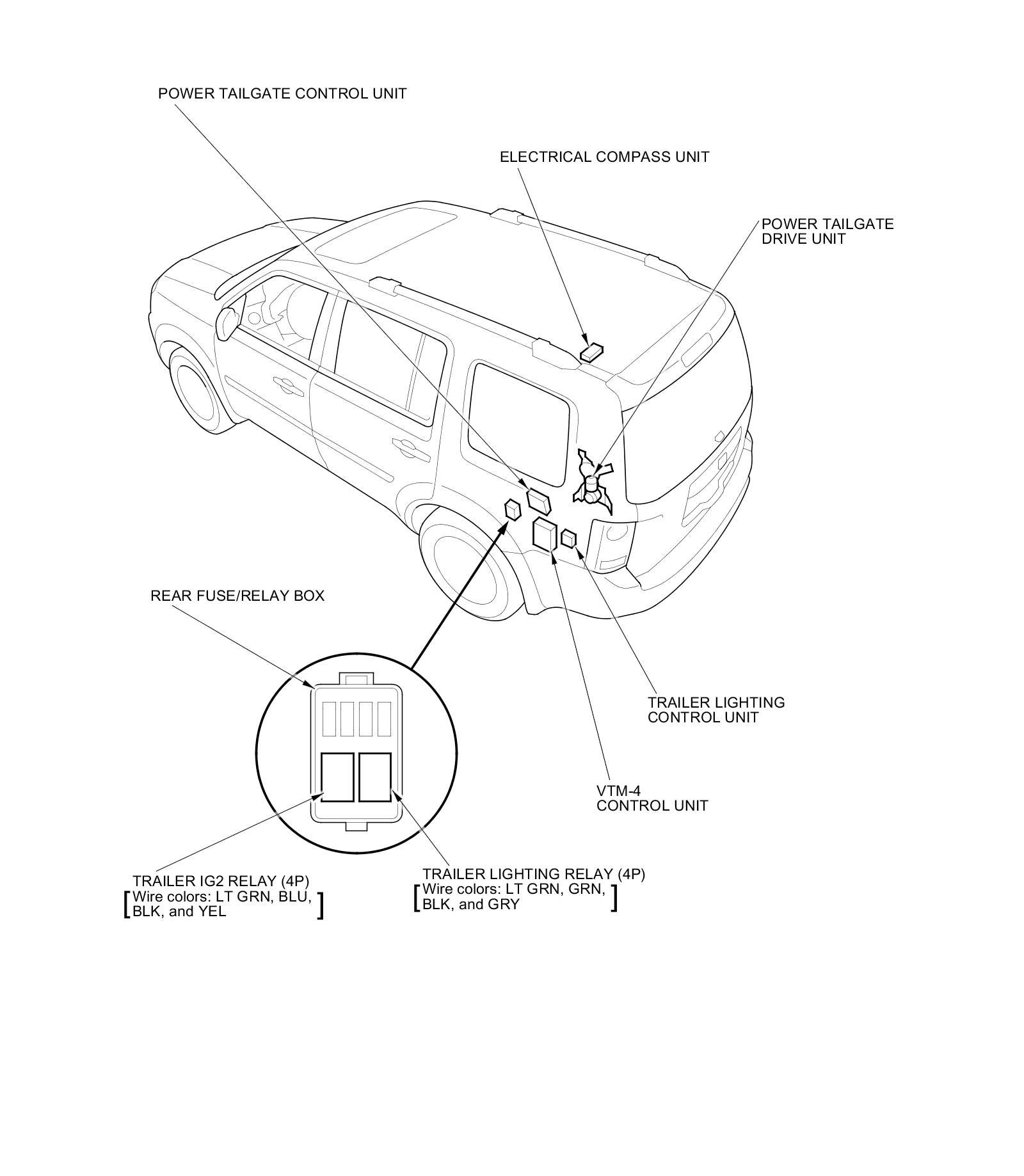

Home >> Honda >> 2012 >> Pilot 2WD V6-3.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Component Locations >> Rear Fuse/Relay Box >> Relay And Control Unit Locations - Rear
