Drive Belt: Service and Repair

Drive Belt Replacement

Special Tools Required

- Belt Tension Release Tool Snap-on TK9317
*Available through the Honda Tool and Equipment Program 888-424-6857.

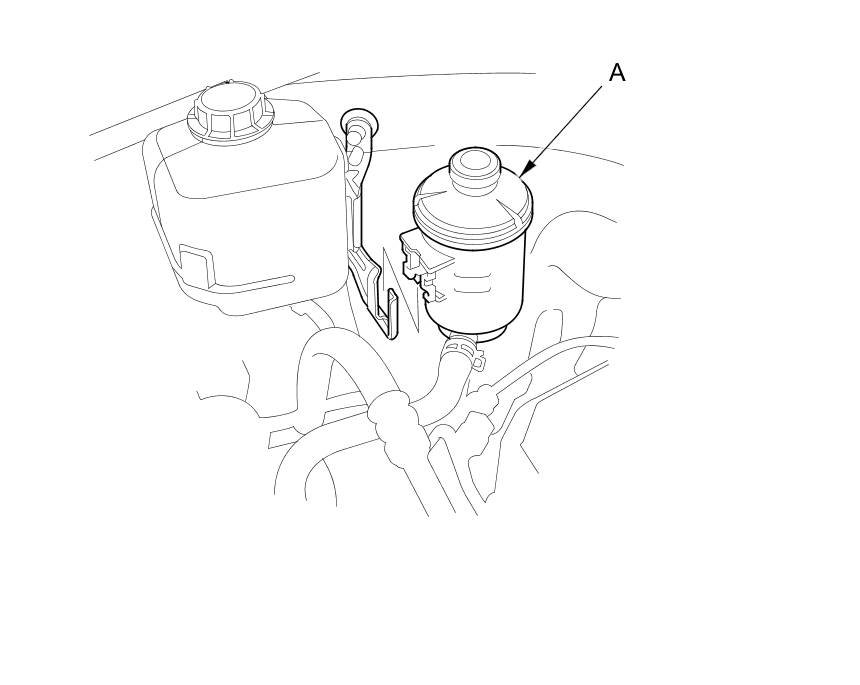

1. Remove the power steering fluid reservoir (A) from the clamp.

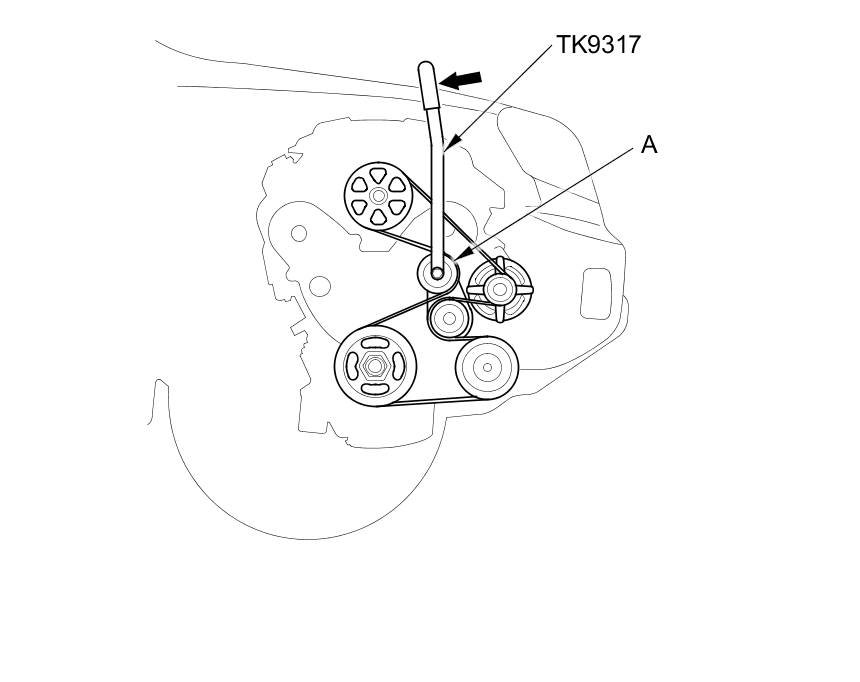

2. Move the auto-tensioner (A) using the belt tension release tool (TK9317) in the direction of the arrow to relieve tension from the drive belt, then remove the drive belt.





3. Install the new drive belt in the reverse order of removal.
