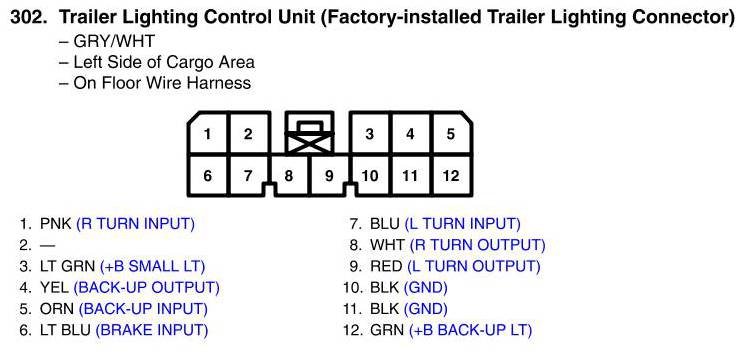

Trailer Lighting Control Unit Connector View (Factory-Installed Trailer Lighting Connector)
Trailer Lighting Control Unit Connector View (Factory-Installed Trailer Lighting Connector)
