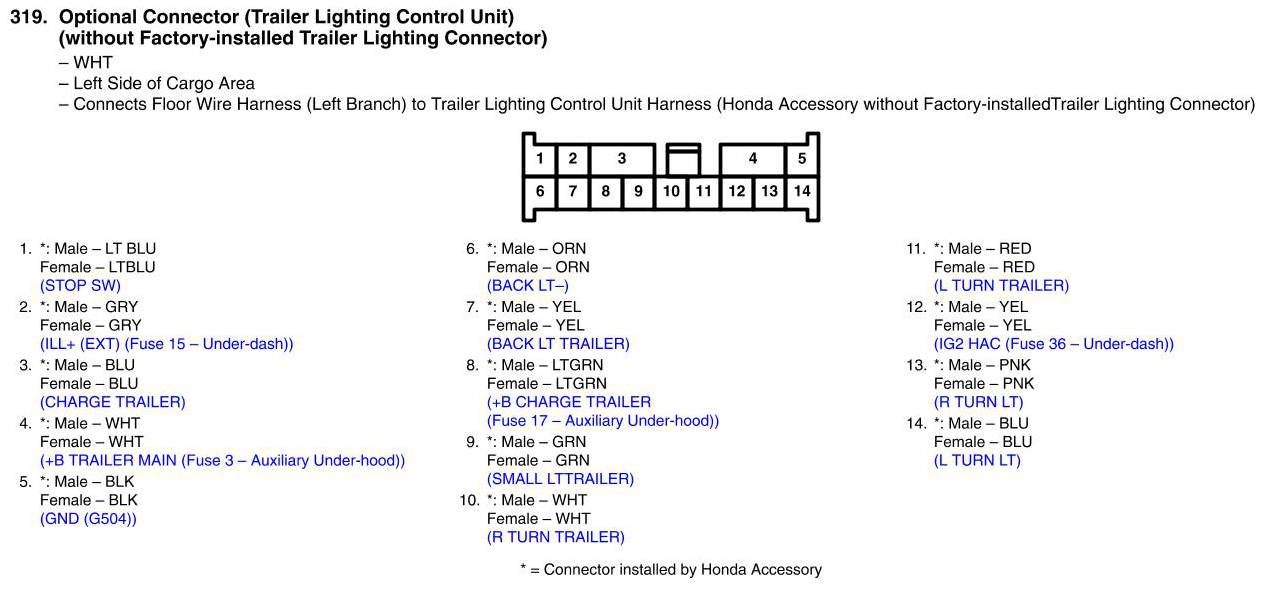

Optional Connector (Trailer Lighting Control Unit) Connector View (Without Factory-Installed Trailer Lighting Connector)
Optional Connector (Trailer Lighting Control Unit) Connector View (Without Factory-Installed Trailer Lighting Connector)
