Solar Sensor, HVAC
>>

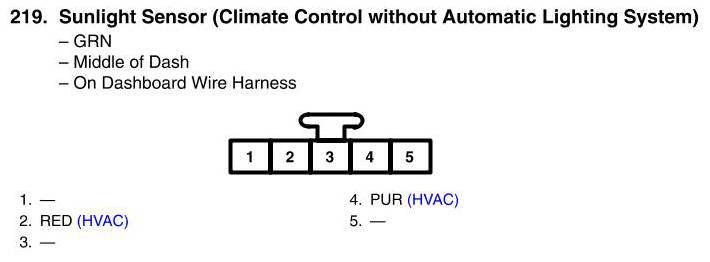

Sunlight Sensor Connector View (Climate Control Without Automatic Lighting System)
Sunlight Sensor Connector View (Climate Control Without Automatic Lighting System)
