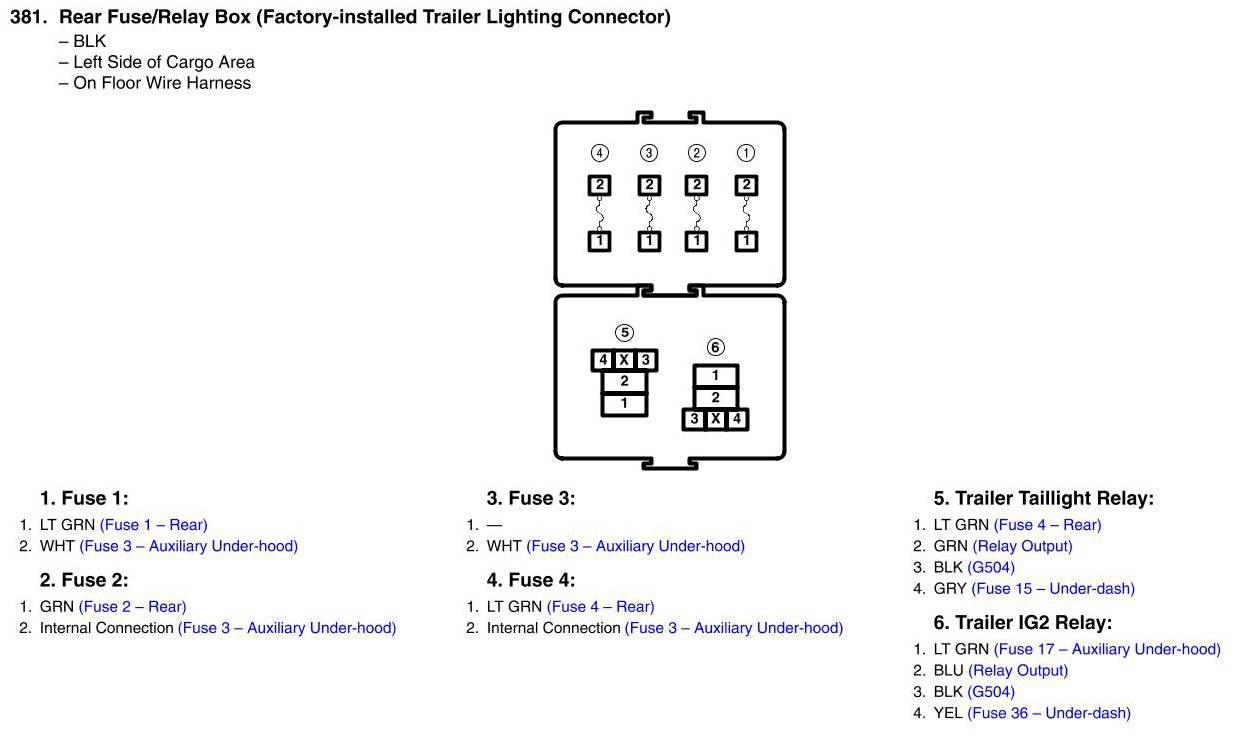

Rear Fuse/Relay Box Connector View (Factory-Installed Trailer Lighting Connector)
Rear Fuse/Relay Box Connector View (Factory-Installed Trailer Lighting Connector)
