Variable Valve Timing Solenoid: Locations




Cylinder Head Assembly Component Location Index

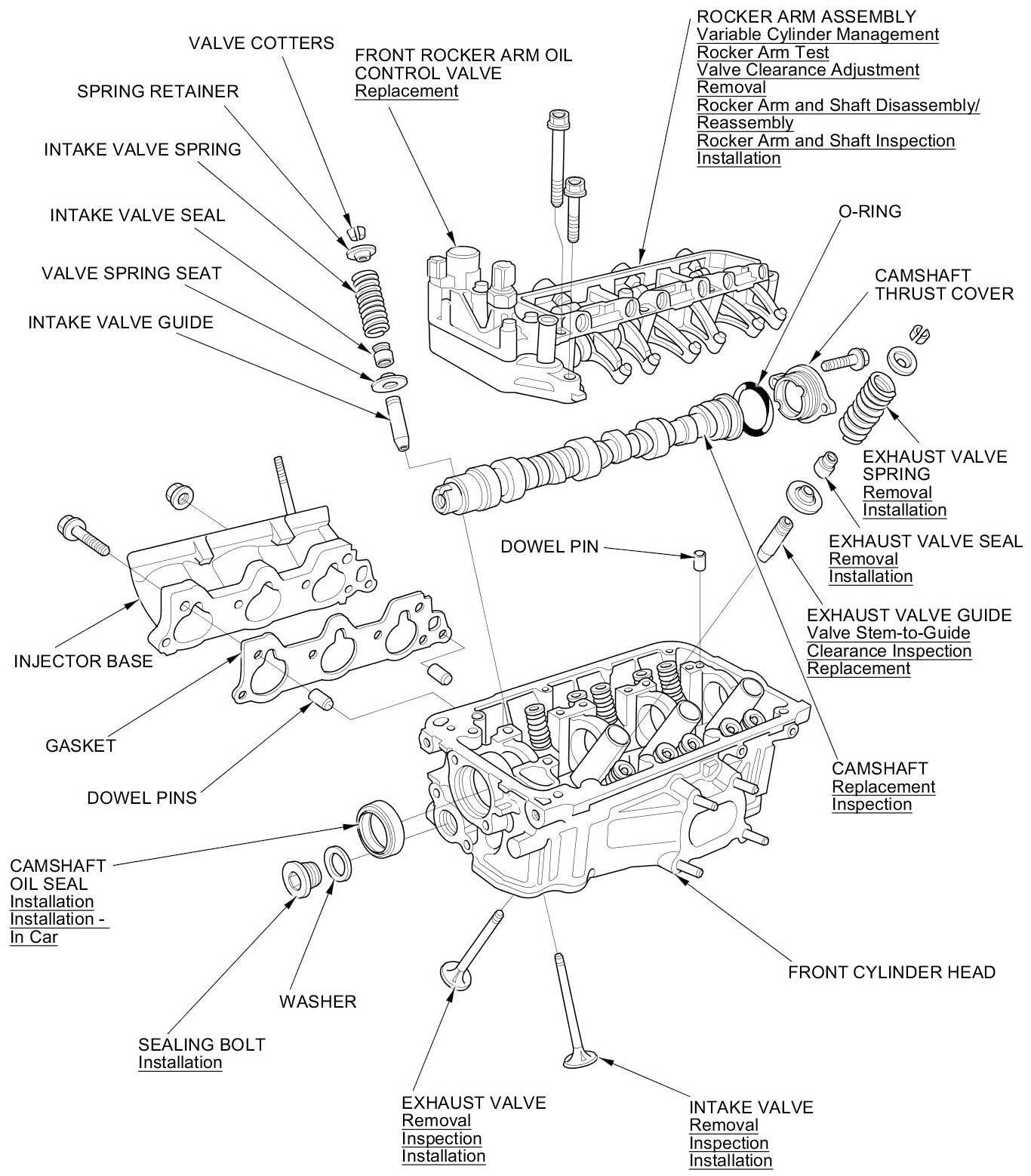

FRONT

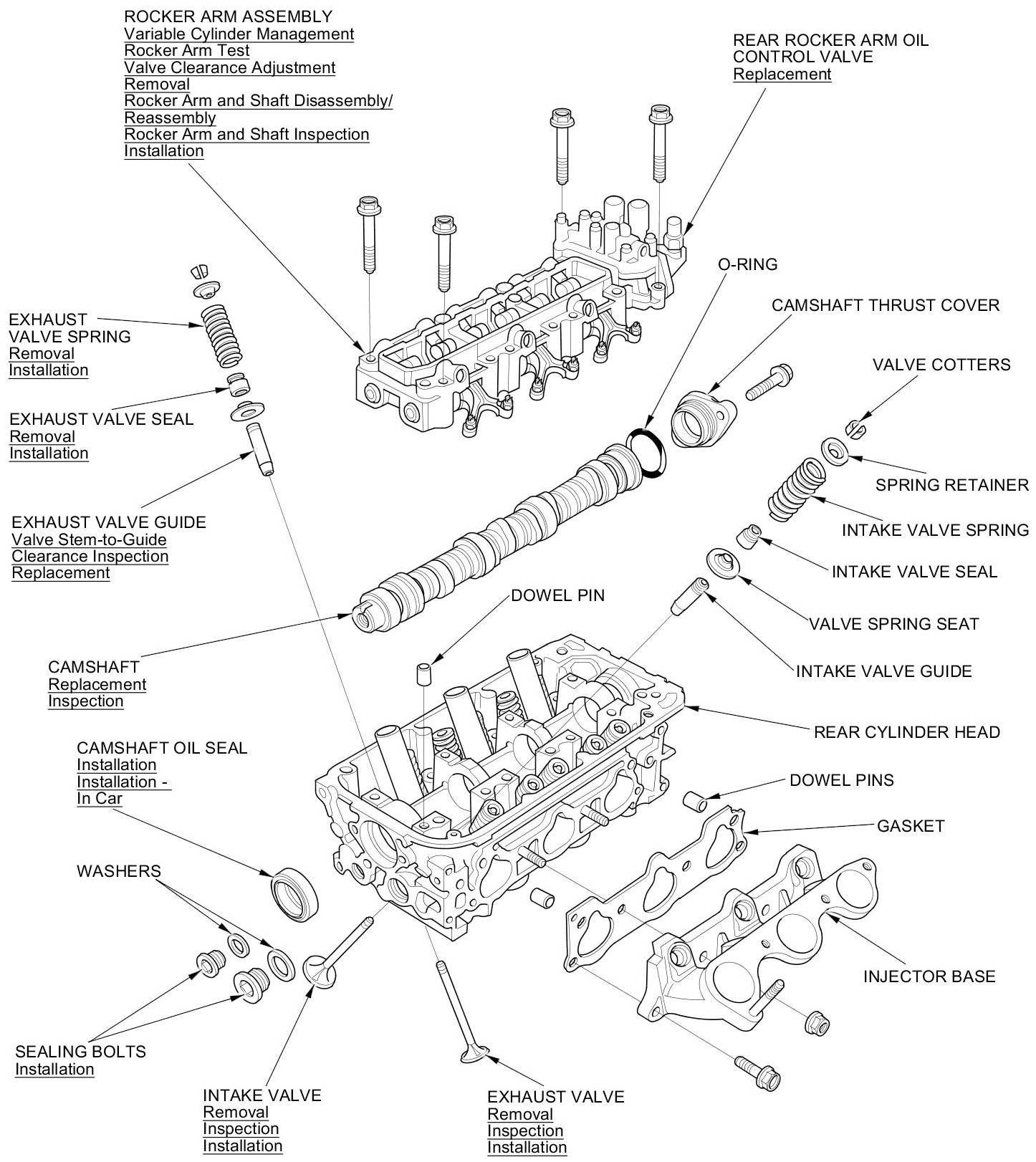

REAR
