Fuse To Components Index
Fuse to Components Index

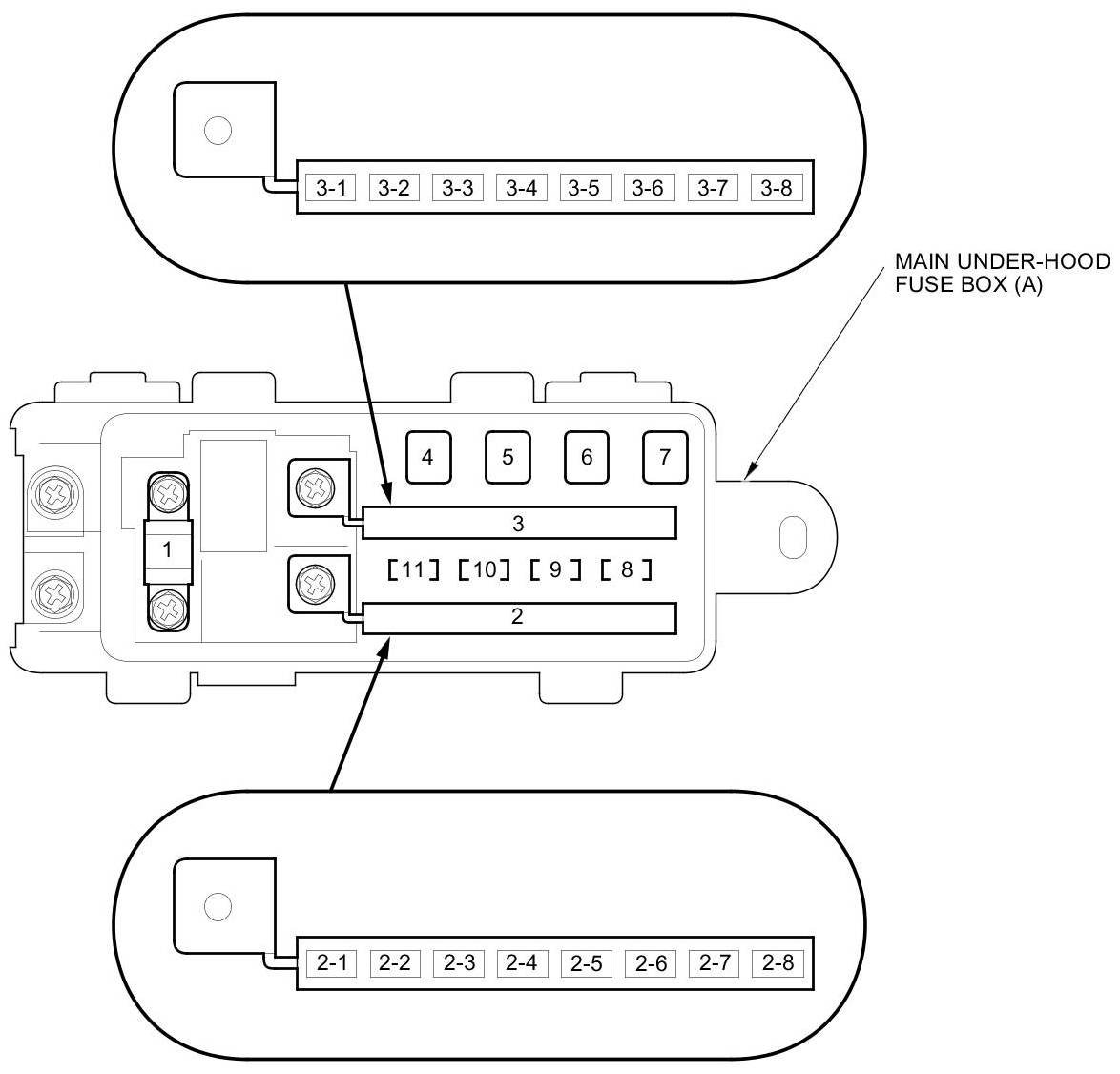

Main Under-Hood Fuse Box (A)
Under-Hood Fuse/Relay Box (B)

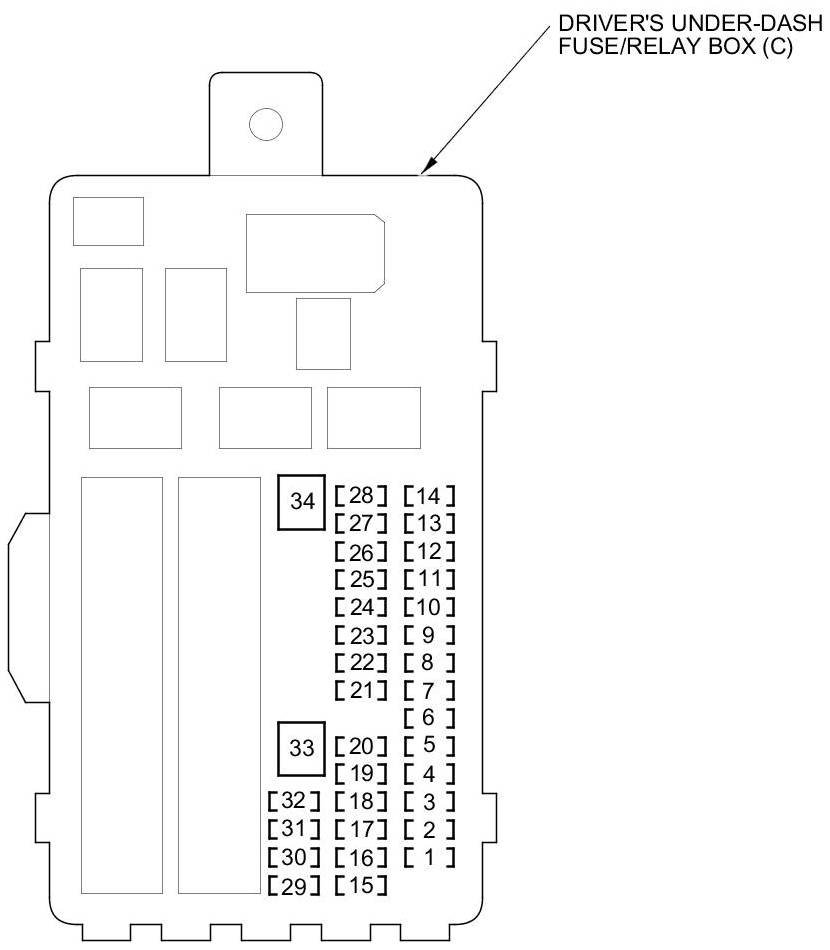

Driver's Under-Dash Fuse/Relay Box (C)

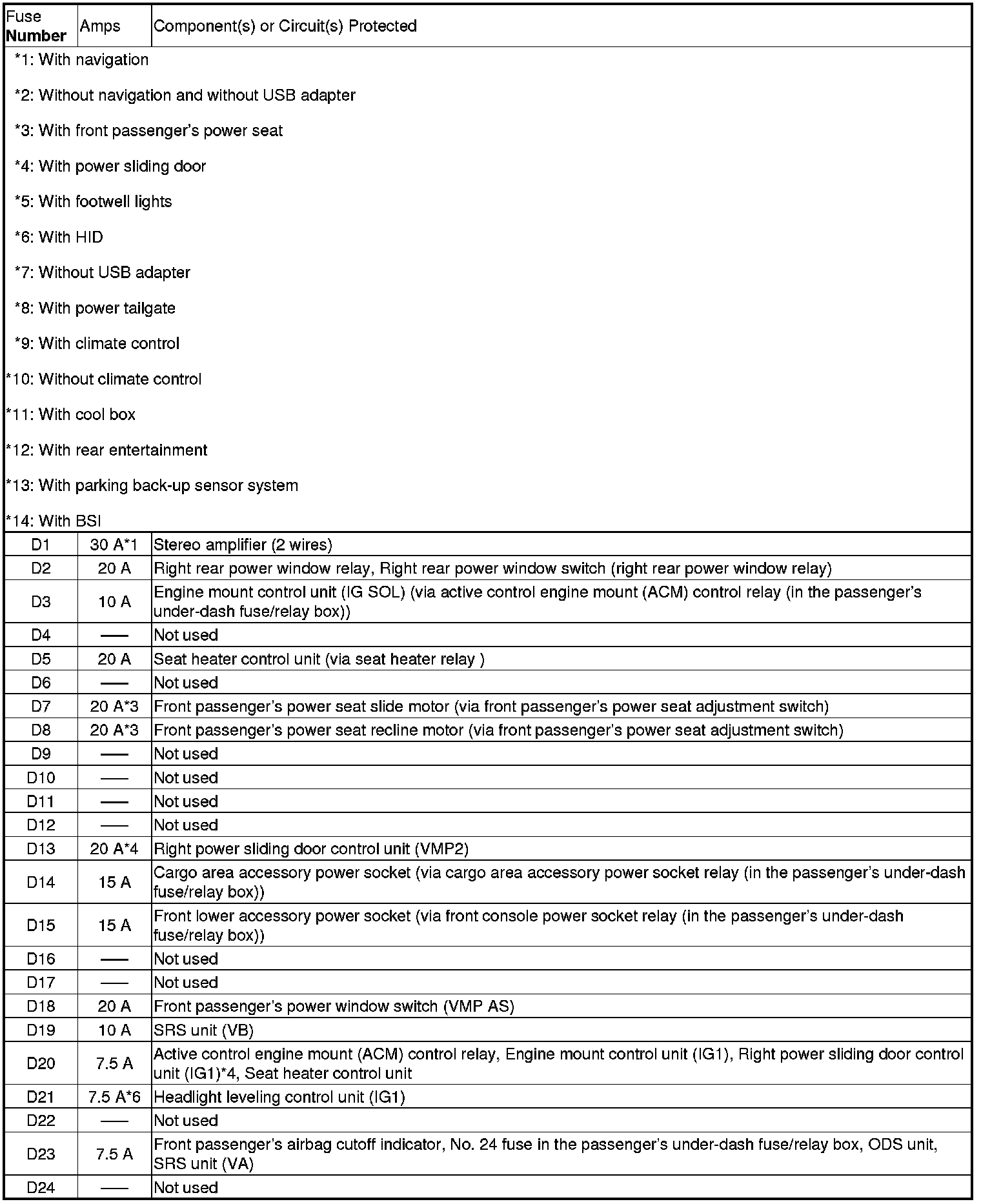

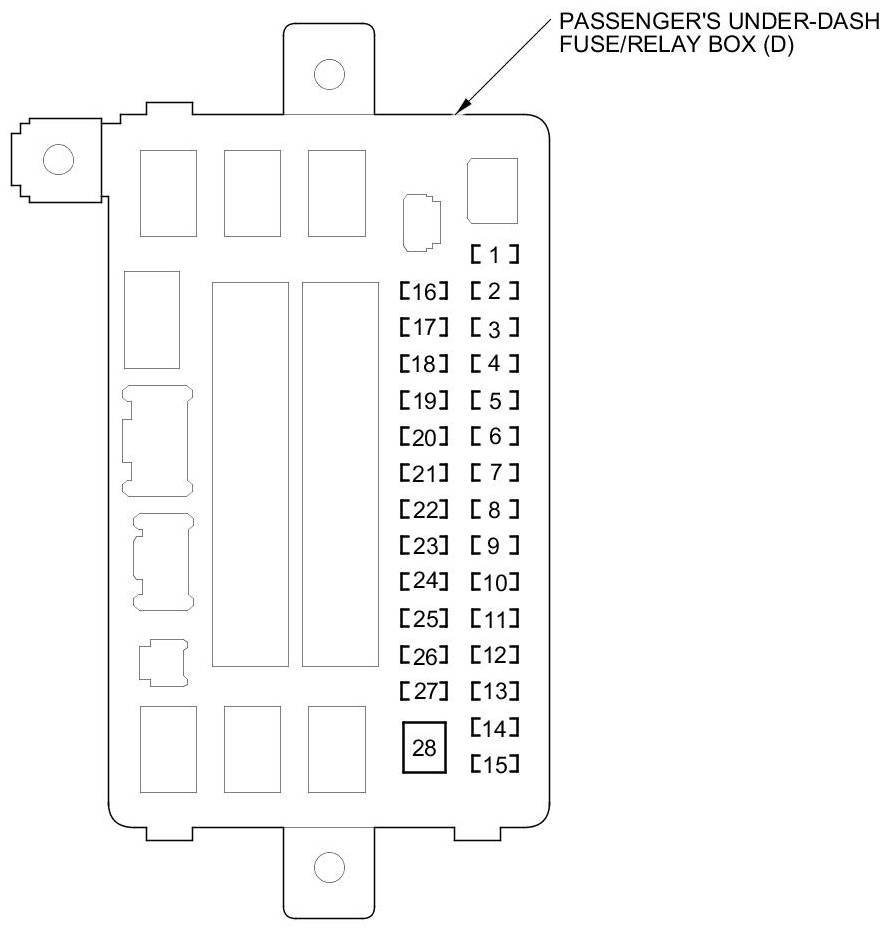

Passenger's Under-Dash Fuse/Relay Box (D)

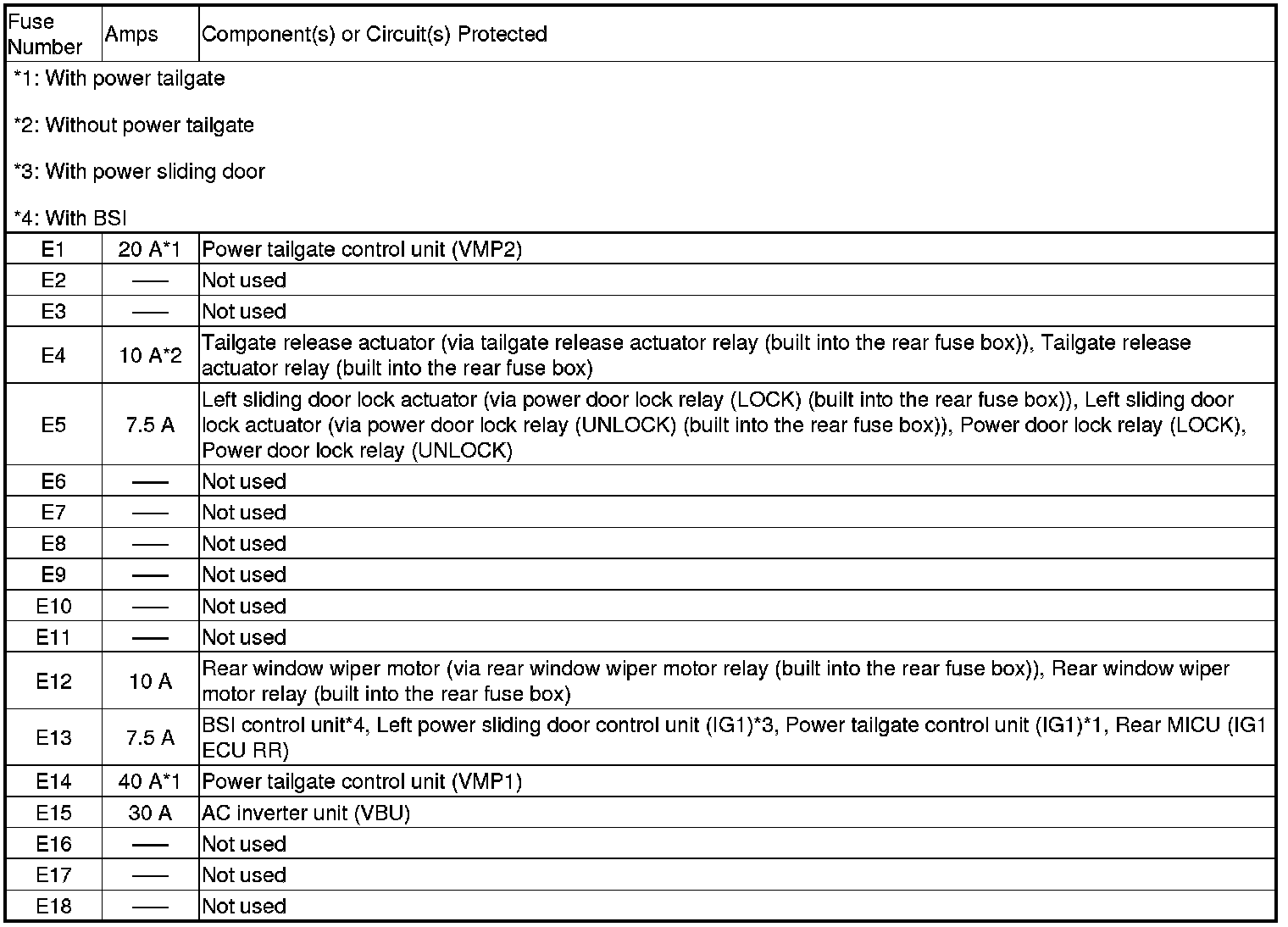

Rear Fuse Box (E)
Fuse to Components Index

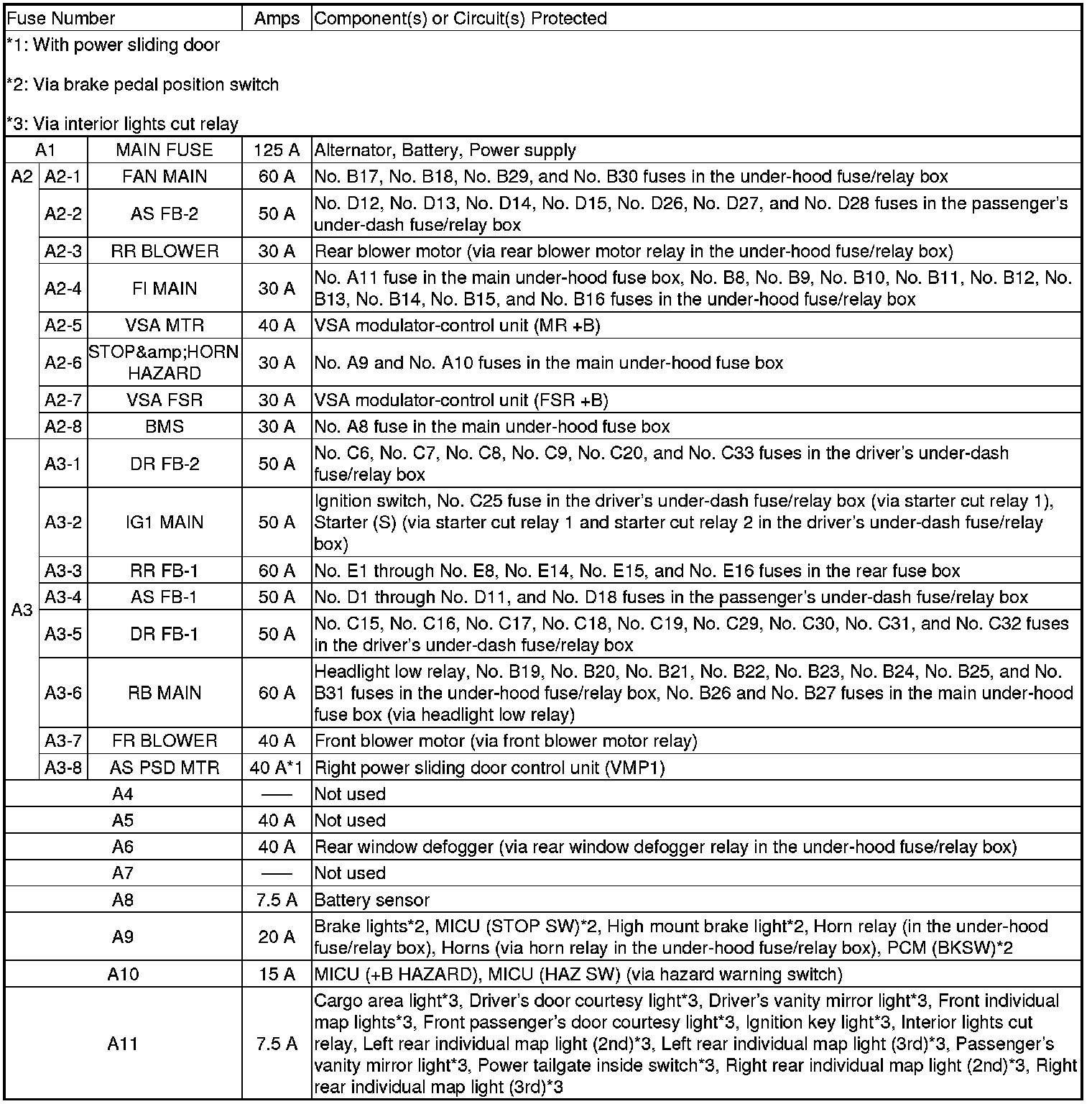

Main Under-Hood Fuse Box (A)

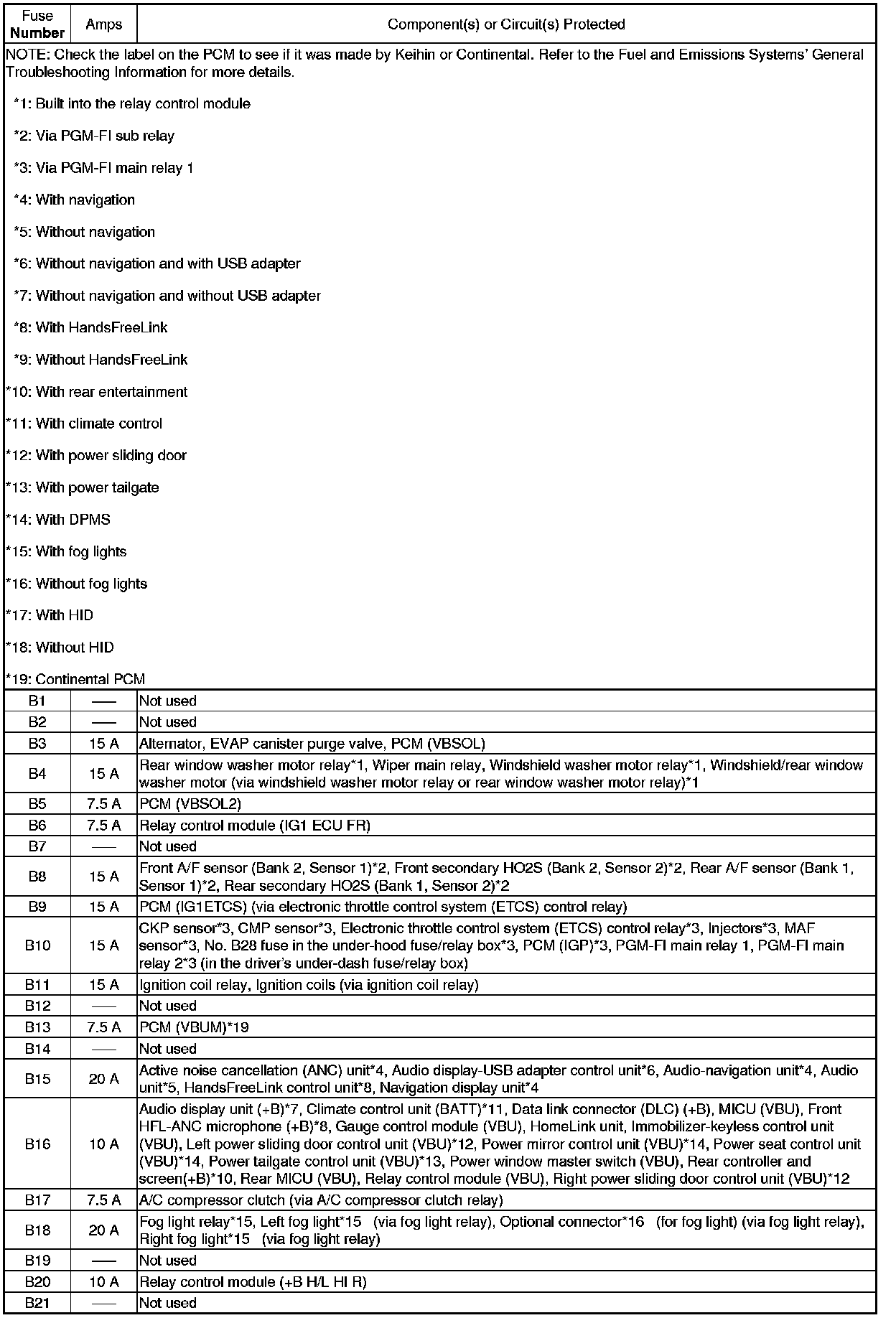

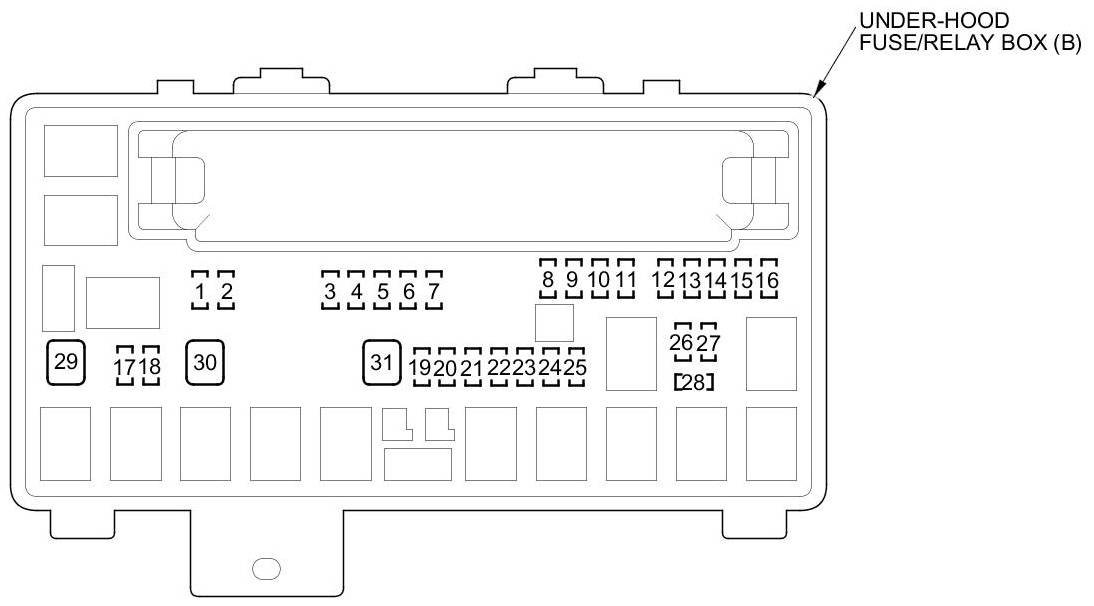

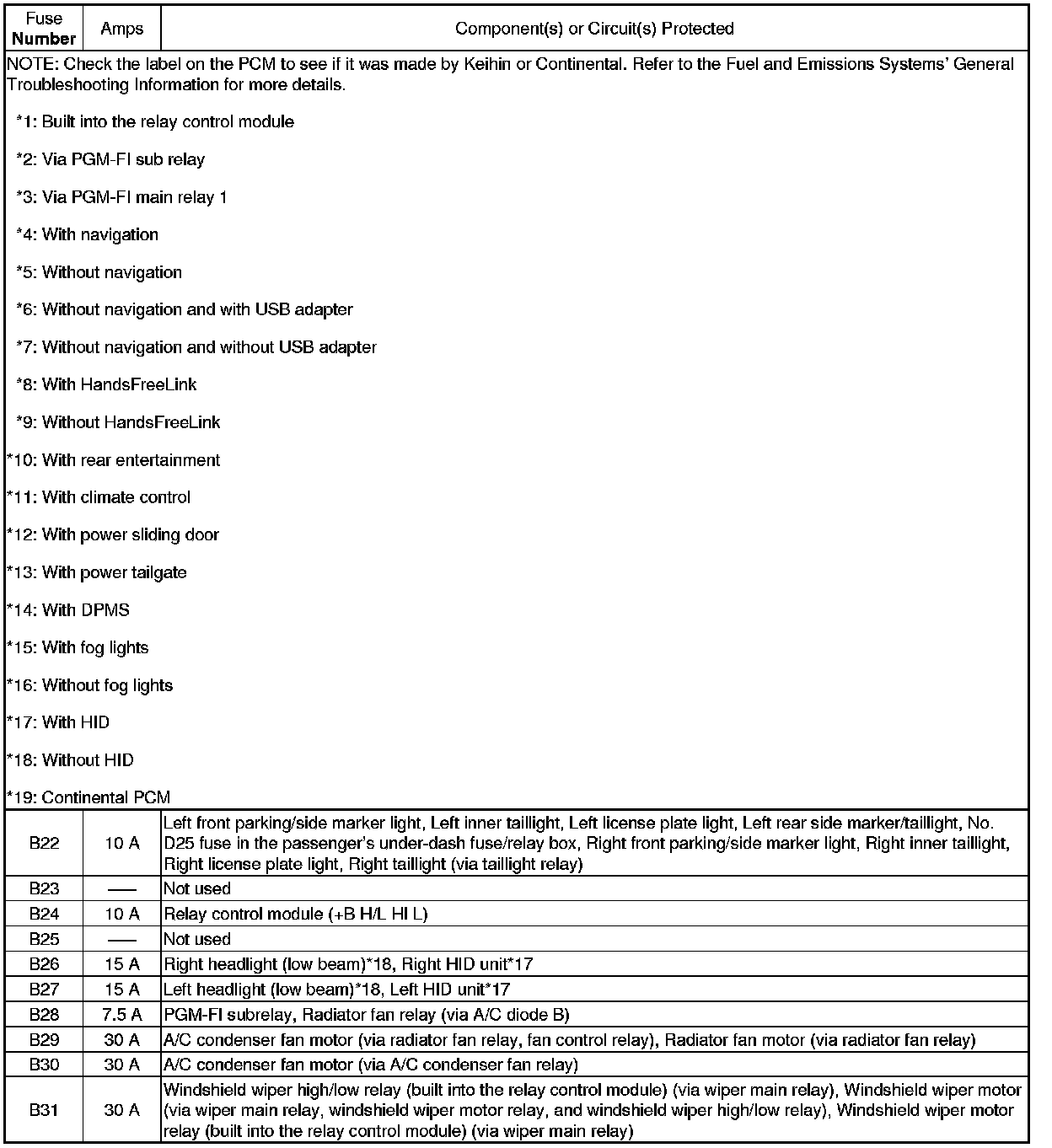

Under-Hood Fuse/Relay Box (B)

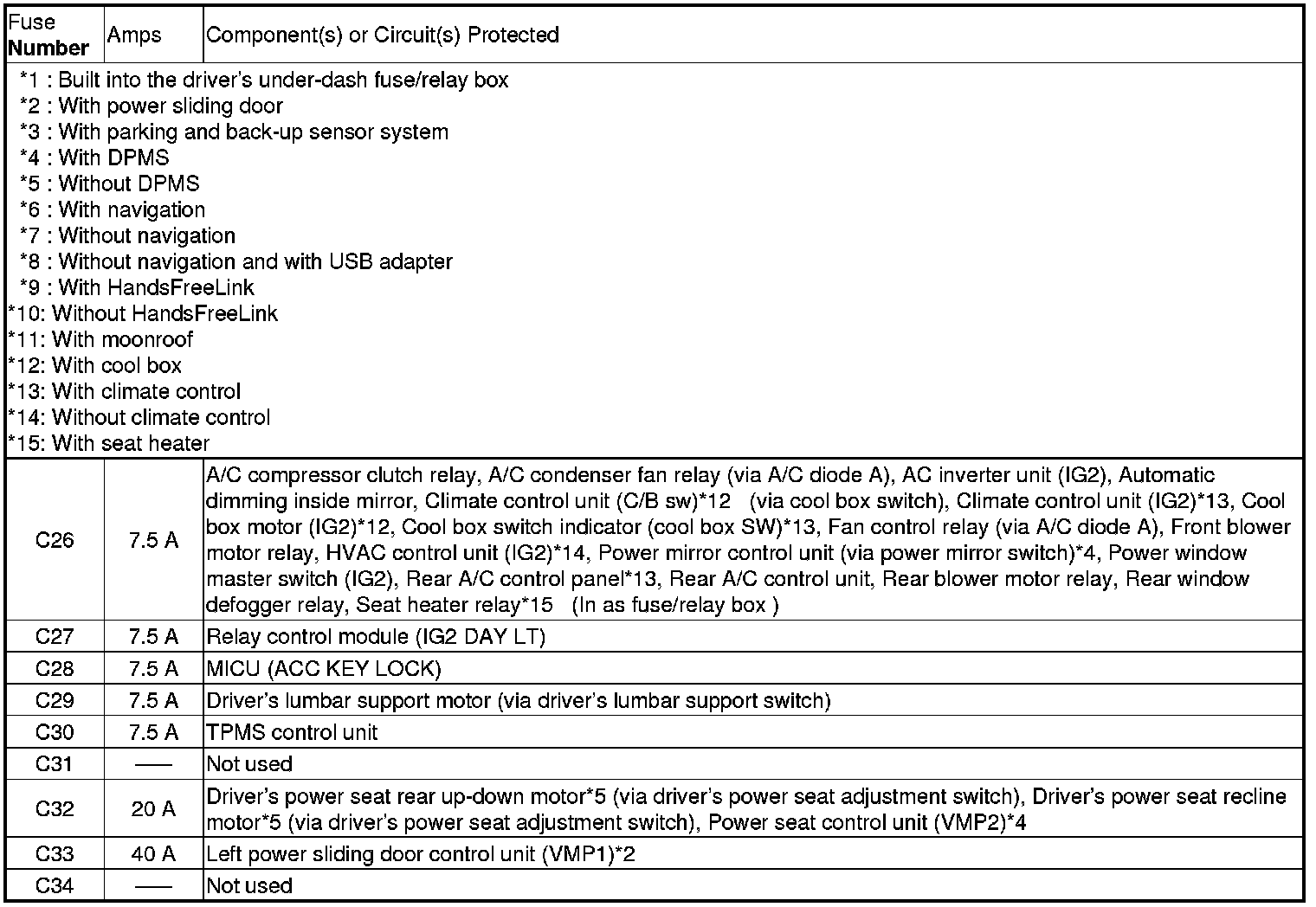

Driver's Under-Dash Fuse/Relay Box (C)

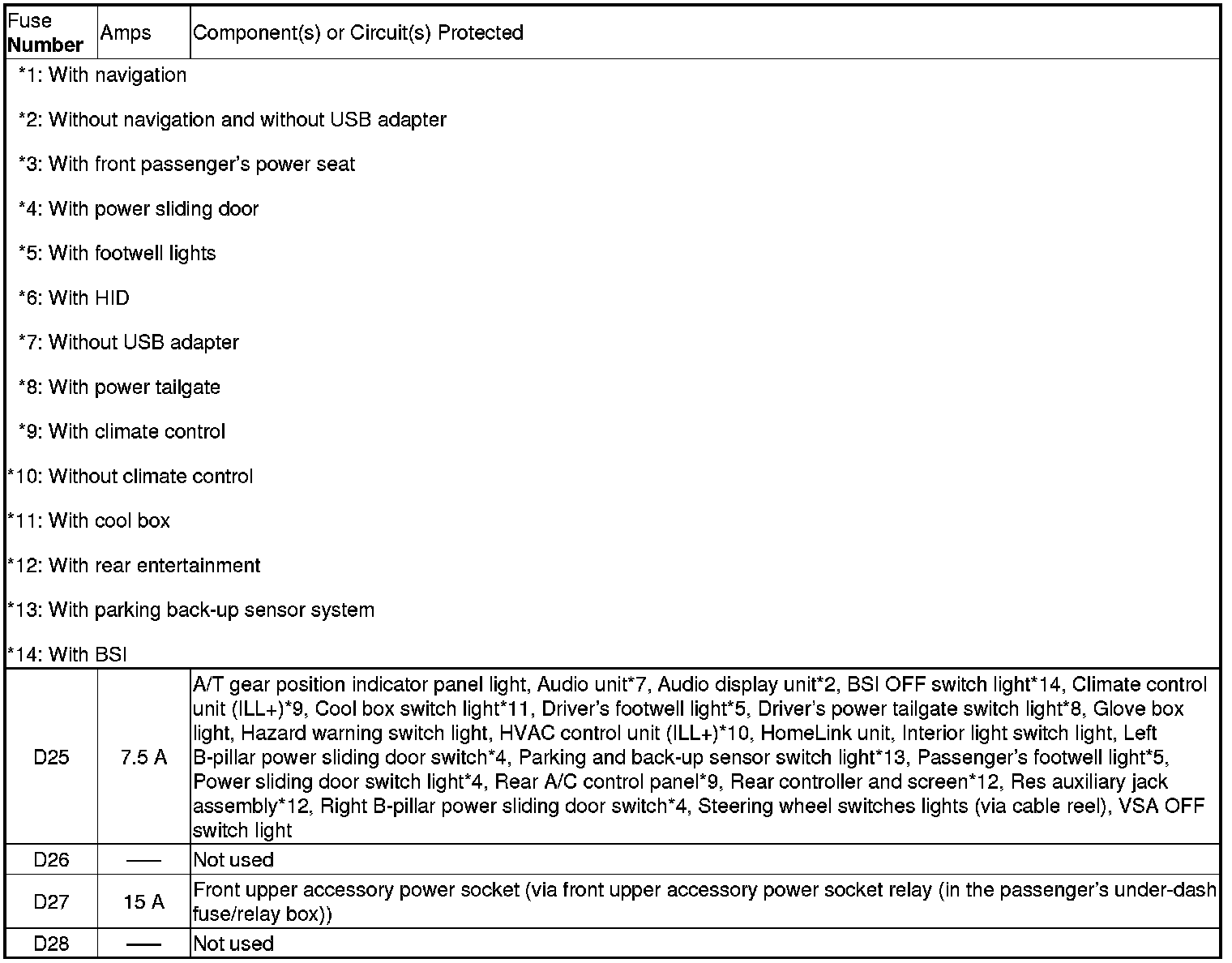

Passenger's Under-Dash Fuse/Relay Box (D)

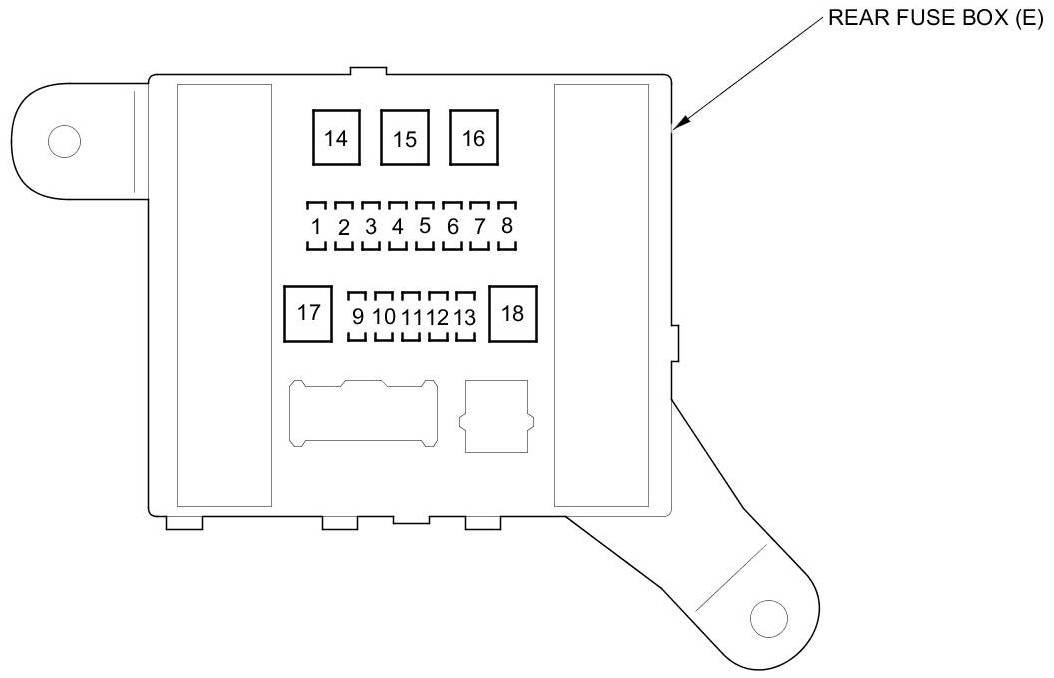

Rear Fuse Box (E)
