Home >> Honda >> 2012 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Diagrams >> Driver's Under-Dash Fuse/Relay Box Connector View

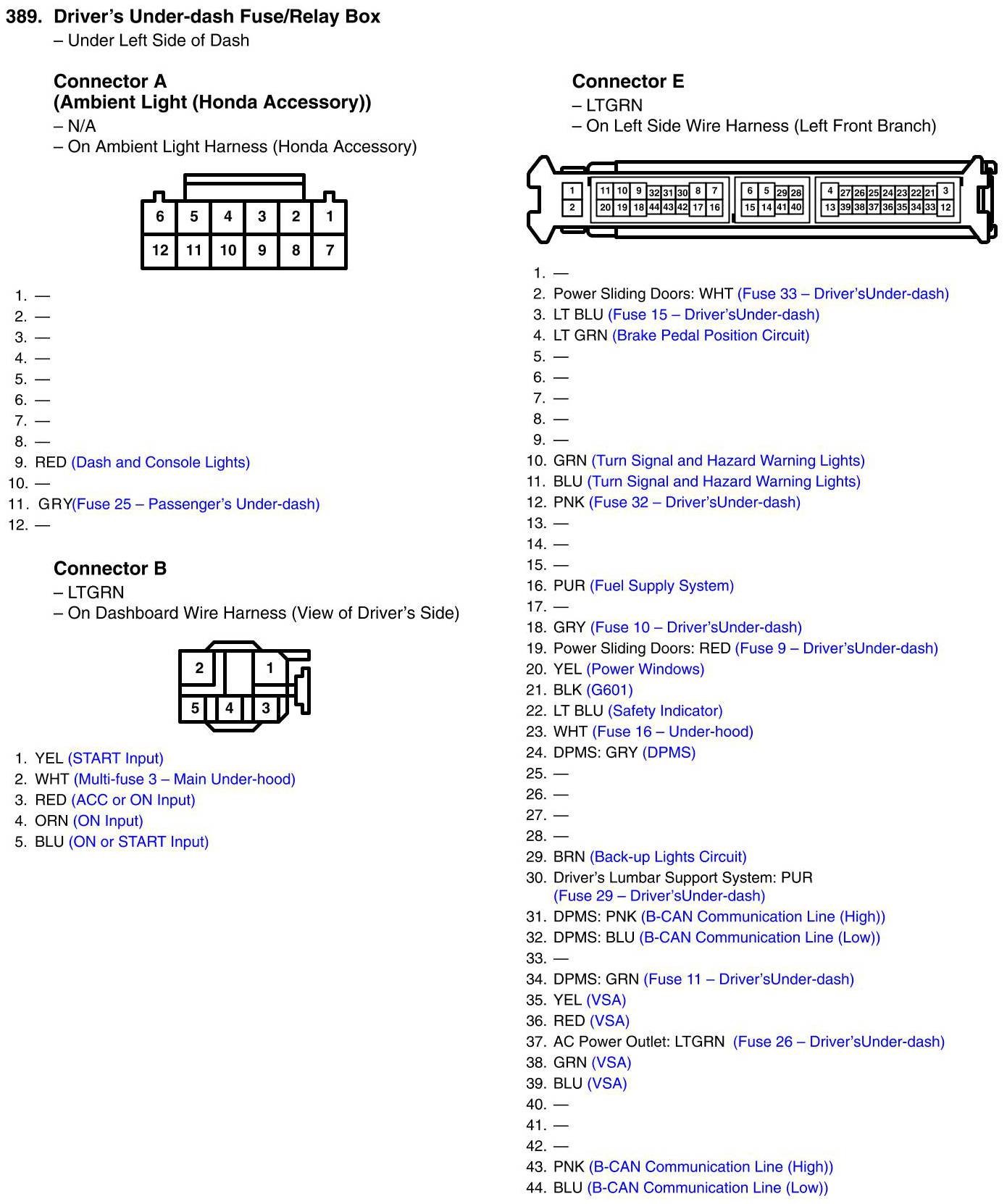

Driver's Under-Dash Fuse/Relay Box Connector View
