Home
>>
Honda
>>
2012
>>
Odyssey V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>

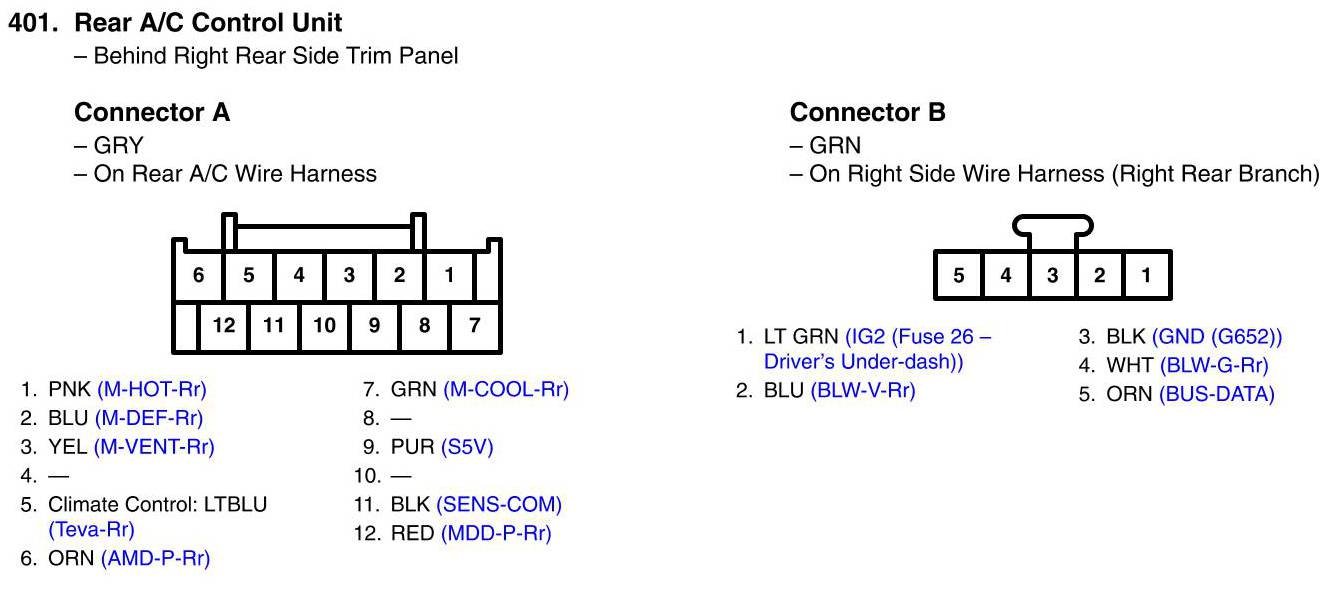

Rear A/C Control Unit Connector View
Rear A/C Control Unit Connector View
