Blind Spot Module
>>

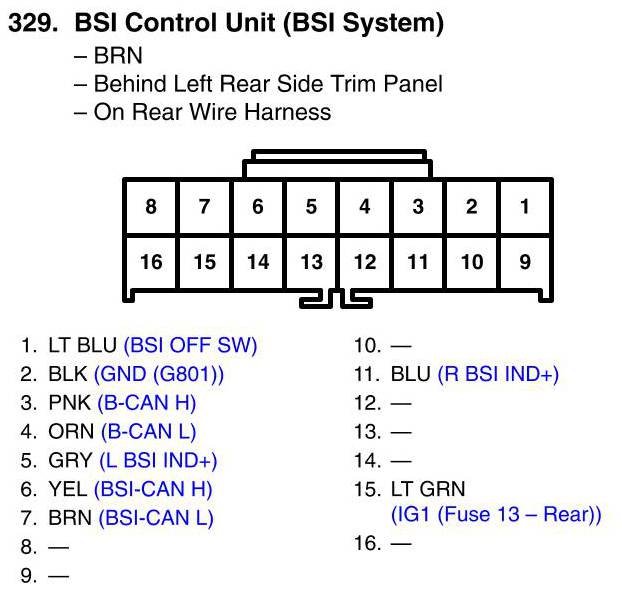

BSI Control Unit Connector View (BSI System)
BSI Control Unit Connector View (BSI System)
