CVT Differential Carrier Specification(s)
CVT Differential Carrier Specification(s)

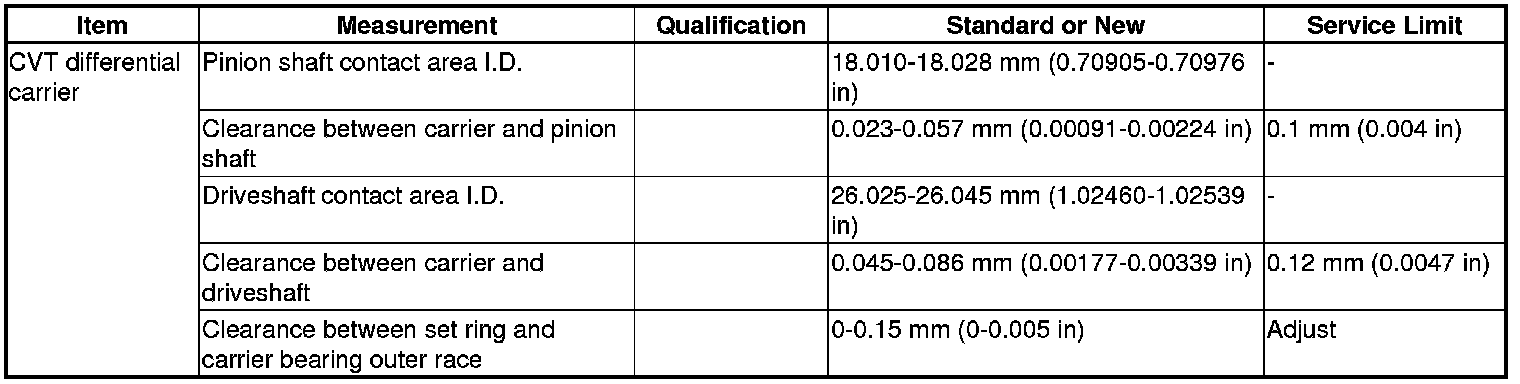

CVT differential carrier
CVT differential carrier
